Page
31
3
consoles\qh\p27a.eps
Paper
Feed
Roller

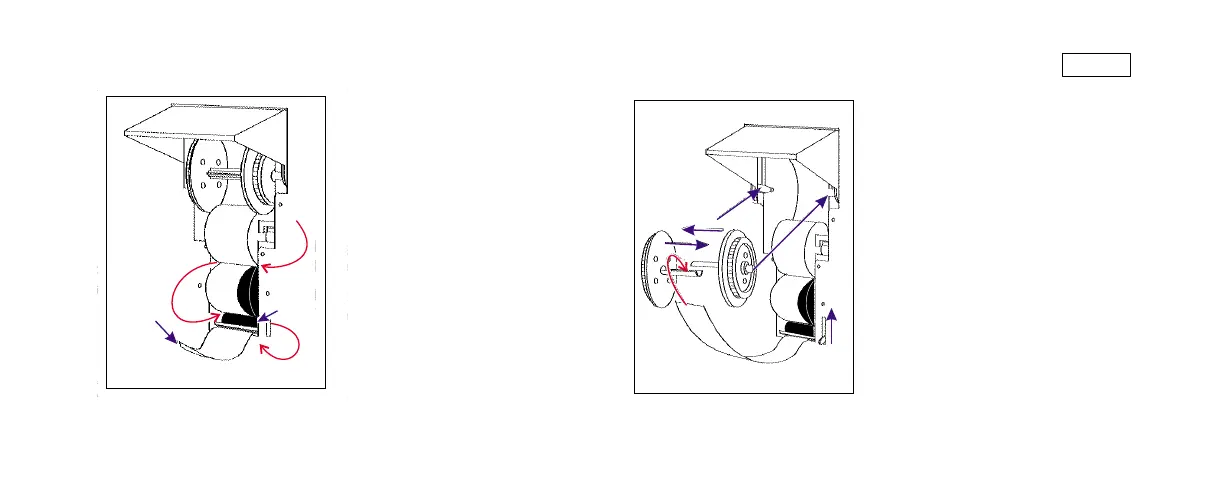

Push the roll into the lower slots in
the printer with the paper tail down
and from the back.
Feed the paper tail through behind
the paper feed roller (
3
).
If using the Take-up Spool place the
paper tail between the two halves
and press them firmly together until
you hear a click (
4
).
4
consoles\qh\p27b.eps
Push the Take-up Spool into the
upper slots. Rotate the spool
counterclockwise until you remove
all slack in the paper.
If the Take-up Spool is not going to
be used, thread the paper tail
through the slot in the printer cover.
Push the paper release lever up and
close the cover.
