Preparing The TLS-450 Console For Upgrade Removing The Display Door

5. Disconnect the ground wire from the Display door at the grounding clamp.

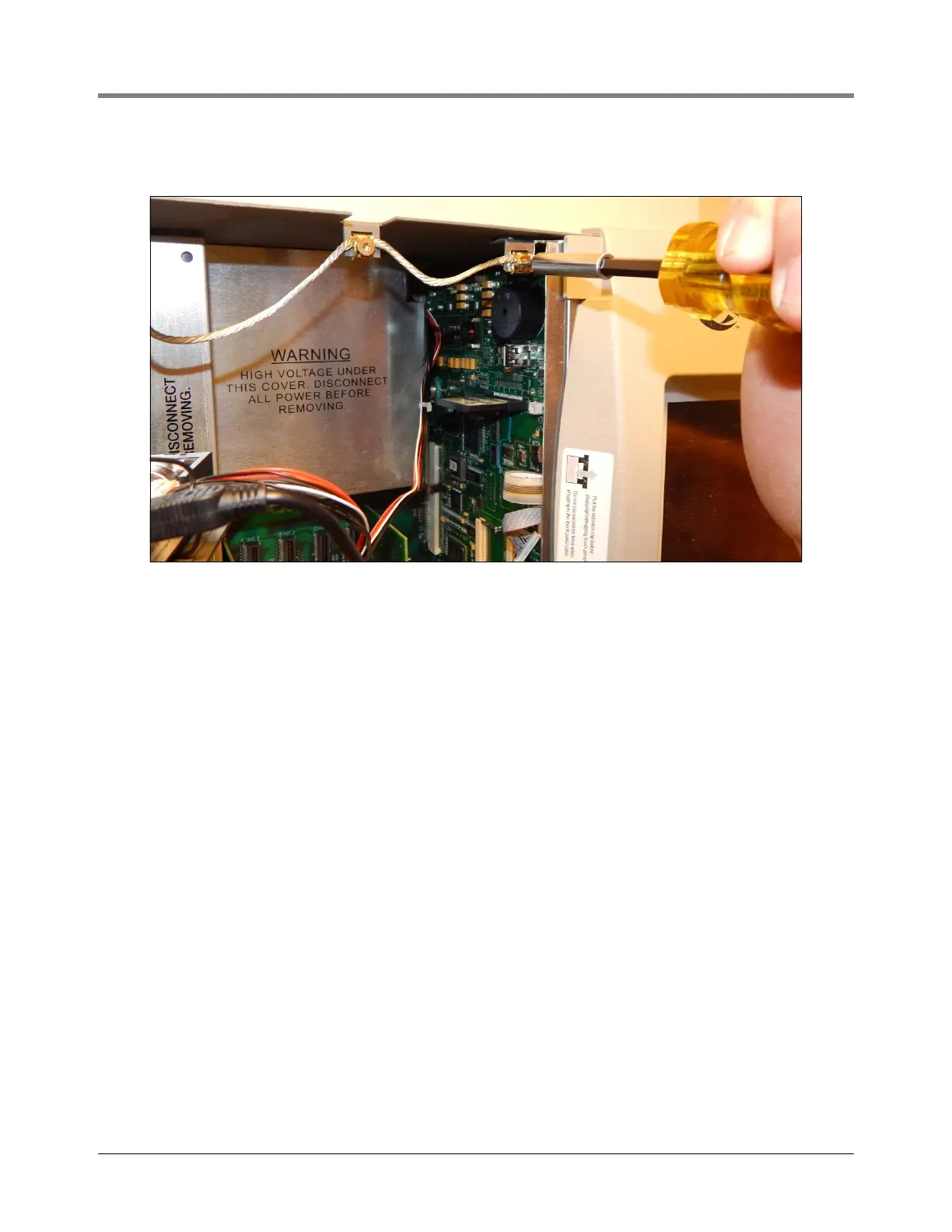

Figure 8. Disconnect The Ground Wire From The Display Door

6. Remove the top and bottom Display door hinge shoulder screws and remove the door (items 1 and 6 in

Figure 7). Retain the two hinge shoulder screws for the TLS-450PLUS upgrade door.

Table of Contents3
Contractor Certification Requirements4
Safety Precautions4
Safety Warnings5
Related Documents5
Documents Required to Install Equipment5
Reference Manuals5
Perform a Database Backup6
Precautions against Static Electricity6
Before Turning off Power6
Figure 1. Usb/Ethernet Board - V-R Thumbdrive Port6
Figure 2. Accessing Diagnostic Main Screen from the Home Screen7
Figure 3. Software Maintenance Button7
Figure 4. Initiating a System Backup8
Preparing the TLS-450 Console for Upgrade9
Removing the Display Door9
Figure 5. Opening the TLS-450 Console Doors9
Figure 6. Removing Optional Printer Cable10
Figure 7. Removing the Three Display Panel Cables11
Figure 8. Disconnect the Ground Wire from the Display Door12
Removing the CPU Board13
Figure 8. Locating CPU Board Retention Snap-Pins13
Figure 9. Locating TLS-450 CPU Board Reusable Ibutton14
Comm Module Upgrades15
Figure 10. Removing Comm Module Clamp15
Figure 11. Install Ethernet Module in Slot 415
Figure 12. Install Usb/Wireless Module in Slot 516
Figure 13. Replace Comm Module Clamp and Securing Screw16
Installing New TLS-450PLUS CPU Board17
Figure 14. Insert Ibutton in Socket on New TLS-450PLUS CPU Board17
Figure 15. Install Ibutton Flange Facing up17
Figure 16. Remove TLS-450PLUS CPU Board Battery Isolator Strip17
Figure 17. Connect Ethernet Cables18
Figure 18. Connect Wireless Cable18
Installing New TLS-450PLUS Display Door19
Figure 19. Connect USB Module Cables19
Figure 20. Connect Optional Printer USB Cable19
Figure 21. Install the New TLS-450PLUS Display Door20
Figure 22. Connect the Ground Cable20
Figure 23. Connect Data Display and LED Backlight Cables to CPU Board21
Figure 24. Locating SD Card on CPU Board21
Figure 25. Installing SD Card22
Initializing the TLS-450PLUS Console after the Upgrade23
