VPS Installation Under Dispenser Installation Steps
14

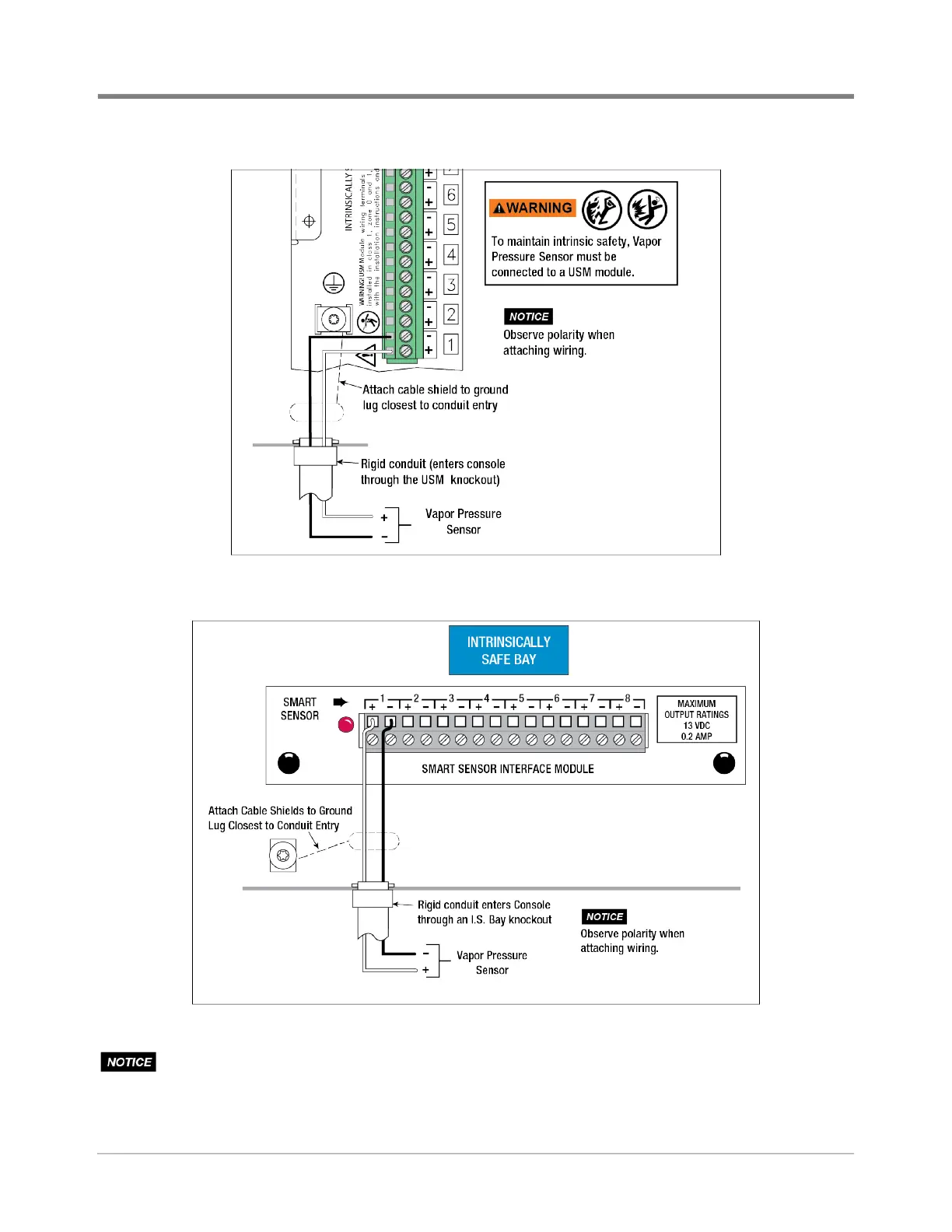

Figure 8. Direct-Wired VPS Connects to Available TLS-450PLUS USM Module Position
Figure 9. Direct-Wired VPS Connects to Available TLS-3XX Smart Sensor Interface Module Position
For wireless configurations, see TLS RF System Control Drawing P/N 331940-012.
