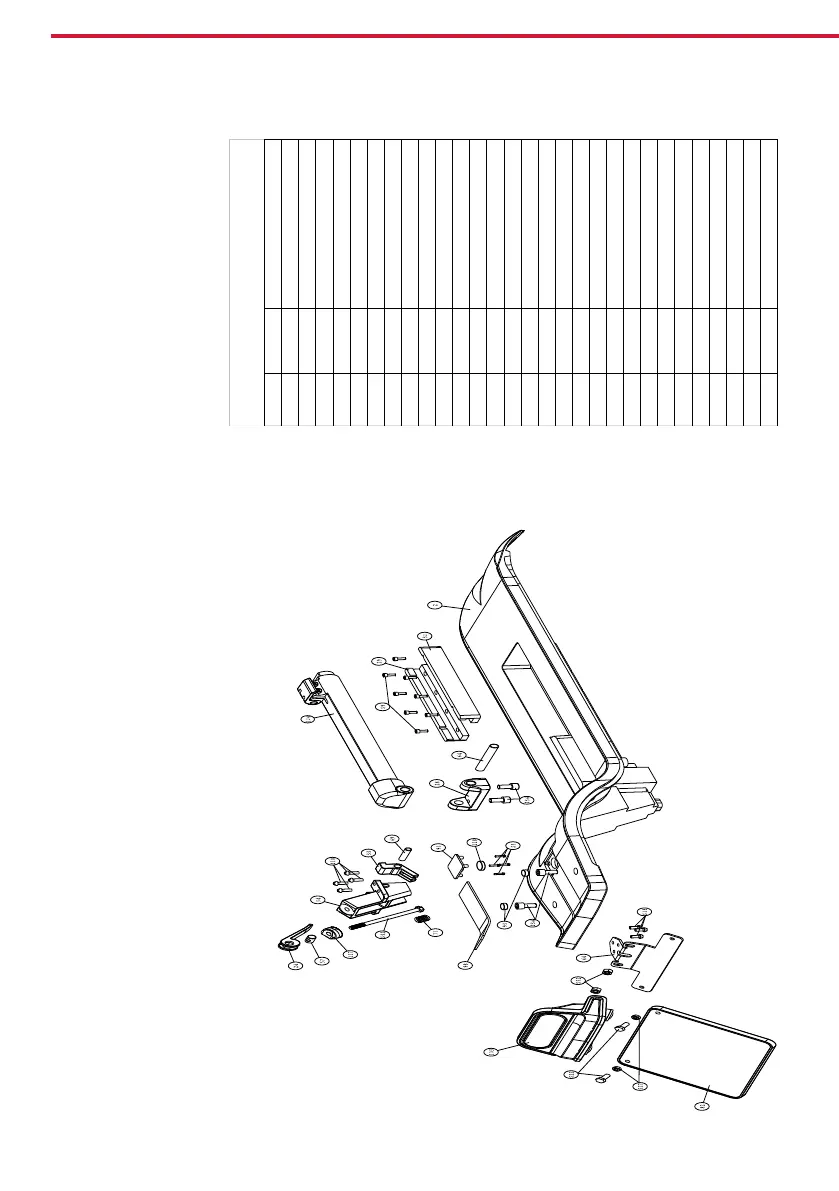

17. TEKENINGEN ONDERDELEN EN LIJST MET ARTIKELNUMMERS
*For Pedal sets -cover , all the part# will be added“c” in fornt of the icon code
Pedel sets-cover
No.
Part #
Part name
1
C2
Pedal cover
2
C29
Saddle slider guide-left
3
CS9
Screw
4
C30
Saddle slider guide-right
5
C104
Support tube set
6
C28
Tube base
7
C64
Axis
8
C90
Magnet
9
C34
Tube lock set
10
C26
Saddle lock handle
11
C57
Wrench shaft
12
C117
Gasket
13
CS32
Screw stem
14
C77
Spring
15
CS18
Screw
16
C33
Tube lock
17
C69
Saddle supporting axis latter
18
C118
Screw plug
19
C98
Anti-collision silicone
20
C44
Rear light bracket
21
CS52
Screw nut
22
CS13
Screw
23
C103
Rear lamp set
24
CS22
Screw
25
CS27
Screw nut
26
C82
License plate
27
28
CS3
Screw
29
CS36
Screw
C93
Screw plug-pedal
*For Pedal sets -cover , all the part# will be added“c” in fornt of the icon code
Pedel sets-cover
No.
Part #
Part name
1
C2
Pedal cover
2
C29
Saddle slider guide-left
3
CS9
Screw
4
C30
Saddle slider guide-right
5
C104
Support tube set
6
C28
Tube base
7
C64
Axis
8
C90
Magnet
9
C34
Tube lock set
10
C26
Saddle lock handle
11
C57
Wrench shaft
12
C117
Gasket
13
CS32
Screw stem
14
C77
Spring
15
CS18
Screw
16
C33
Tube lock
17
C69
Saddle supporting axis latter
18
C118
Screw plug
19
C98
Anti-collision silicone
20
C44
Rear light bracket
21
CS52
Screw nut
22
CS13
Screw
23
C103
Rear lamp set
24
CS22
Screw
25
CS27
Screw nut
26
C82
License plate
27
28
CS3
Screw
29
CS36
Screw
C93
Screw plug-pedal
C
*For the Pedal sets-cover, all the pare # will added “C“ in front the Icon code
