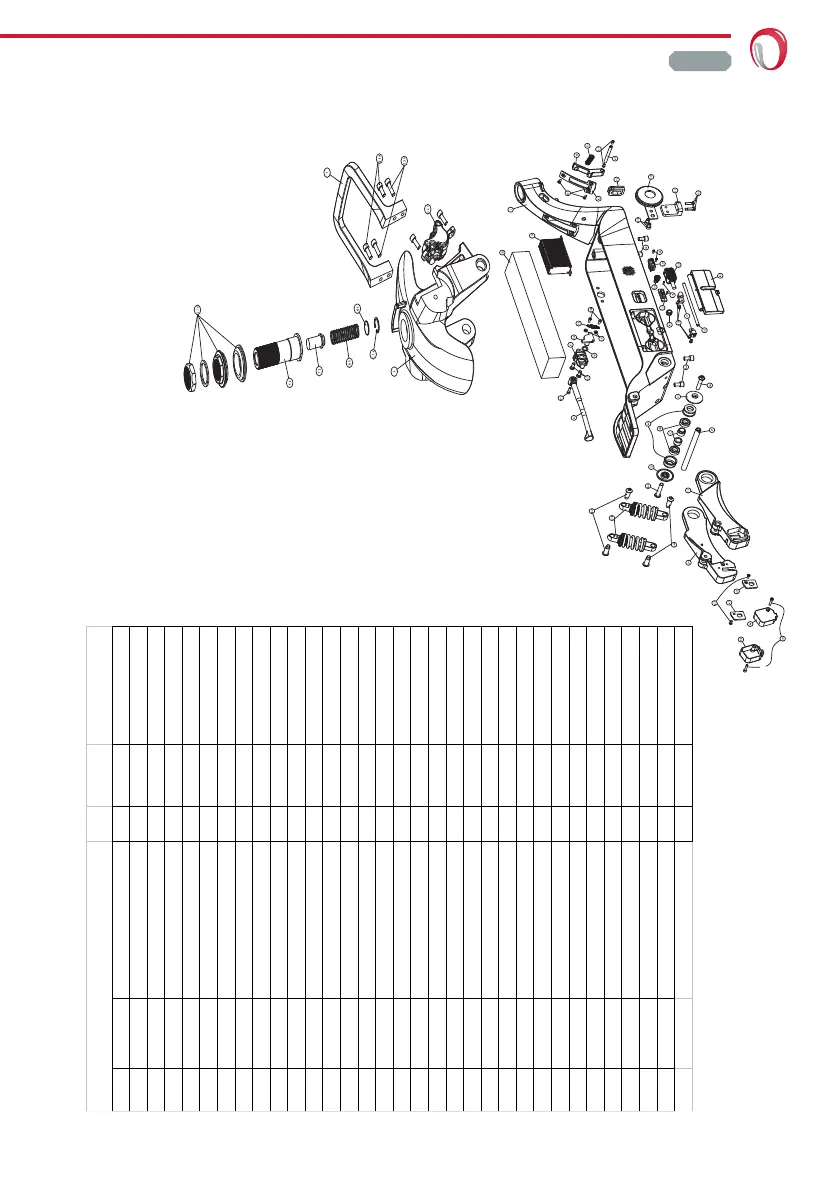

17. TEKENINGEN ONDERDELEN EN LIJST MET ARTIKELNUMMERS
*For the Pedal sets-Bottom , all the part # will be added "B" in front of the icon code .
Pedal sets-Bottom
No
Part #
Part name
No
Part #
Part name
1
B7
Drag handle
32
B21
Fixing base
2
BS38
Screw
33
BS35
Screw
3
BS39
Screw
34
BS31
Screw
4
B106
Unfolding connecting parts
35
B130
Fuse
5
B5
Front wheel bracket
36
BS6
Screw
6
B56
Unfolding connecting stem
37
BS40
Screw
7
B72
Folding Top block
38
B62
Cover Stem
8
B80
Top block spring
39
B17
Fxing base
9
B46
Spring base
40
BS14
Screw
10
B116
Snap ring
41
B85
Cover
11
B110
Disc brake system
42
B133
DC charging port
12
B16
Stander
43
BS4
Screw
13
BS51
Screw
44
BS14
Screw
14
BS37
Screw
45
B131
Battery connector
15
B35
limiting block for stander
46
B60
Sleeve
16
B36
Insert block
47
B11
Decorative cover
17
BS47
Gasket
48
BS41
Screw
18
BS27
Nuts
49
B67
Rear bracket axis
19
B74
Spring
50
B61
Gasket
20
BS18
Screw
51
B120
Fxing nuts
21
B1
Pedal
52
B115
Sealed suspension
22
B76
Spring
53
BS45
Screw stem
23
B38
Unfolding button
54
BS44
Screw stem
24
55
B18
Rear bracket-Left
25
B63
Lock stem
56
B19
Rear bracket-right
26
BS15
Screw
57
B42
Gasket-Left
27
BS17
Screw
58
B43
Gasket-right
28
B122
Battery
59
B83
Axis cover-left
29
B96
Rubber plug
60
B84
Axis cover-right
30
B123
Controller
61
BS25
Screw
31
B129
Electric Horn
62
B132
Battery plug
63
B99
Wire seelve
B41
Decorative cover
