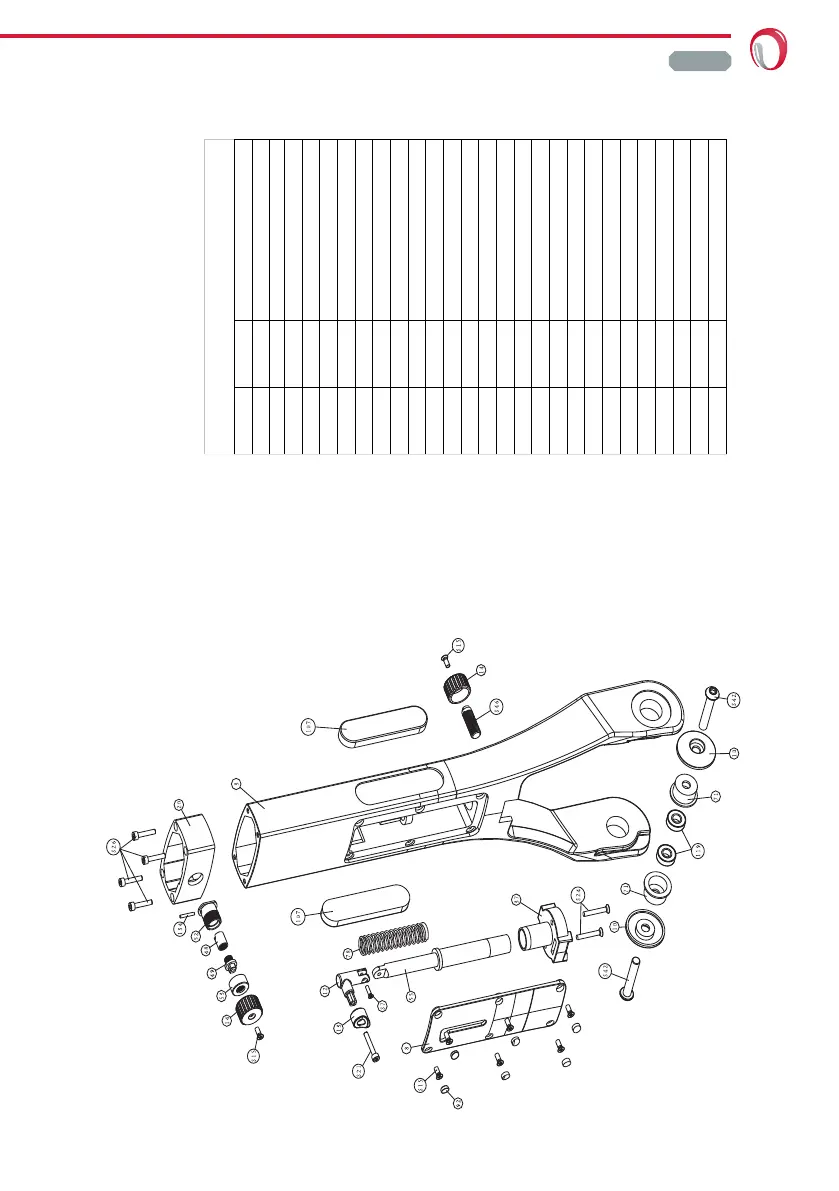

17. DRAWING PARTS AND LIST OF ARTICLE NUMBERS
*For Front frame sets-latter , all the pare # will added "L" in front the Icon code
Front frame sets-Latter
No.
Part #
Part name
1
LS26
Screw
2
L20
Fixing Base
3
L14
Height adjustment knob
4
L134
Bracket pin
5
L52
Fixing bracket base
6
L48
Top block
7
L49
Height adjusting screw
8
L53
Fixing bracket base
9
LS15
Screw
10
L3
Latter front frame
11
L8
Latter front frame Cover
12
L92
Screw plug
13
L13
Folding lock
14
LS21
Screw
15
L12
Folding connecting rod
16
L78
Spring
17
L55
Folding stem
18
L107
Reflector
19
L10
Decorative cover
20
LS42
Screw
21
L71
Latter front frame seelve
22
L119
Front frame Gasket
23
LS46
Screw STEM
24
LS15
Screw
25
L37
Insert block
26
LS24
Screw
27
LS7
Screw
L
*For the Front frame sets-latter, all the pare # will added “L“ in front the Icon code
