Veeley V5 - Front Frame Sets-Upper

41

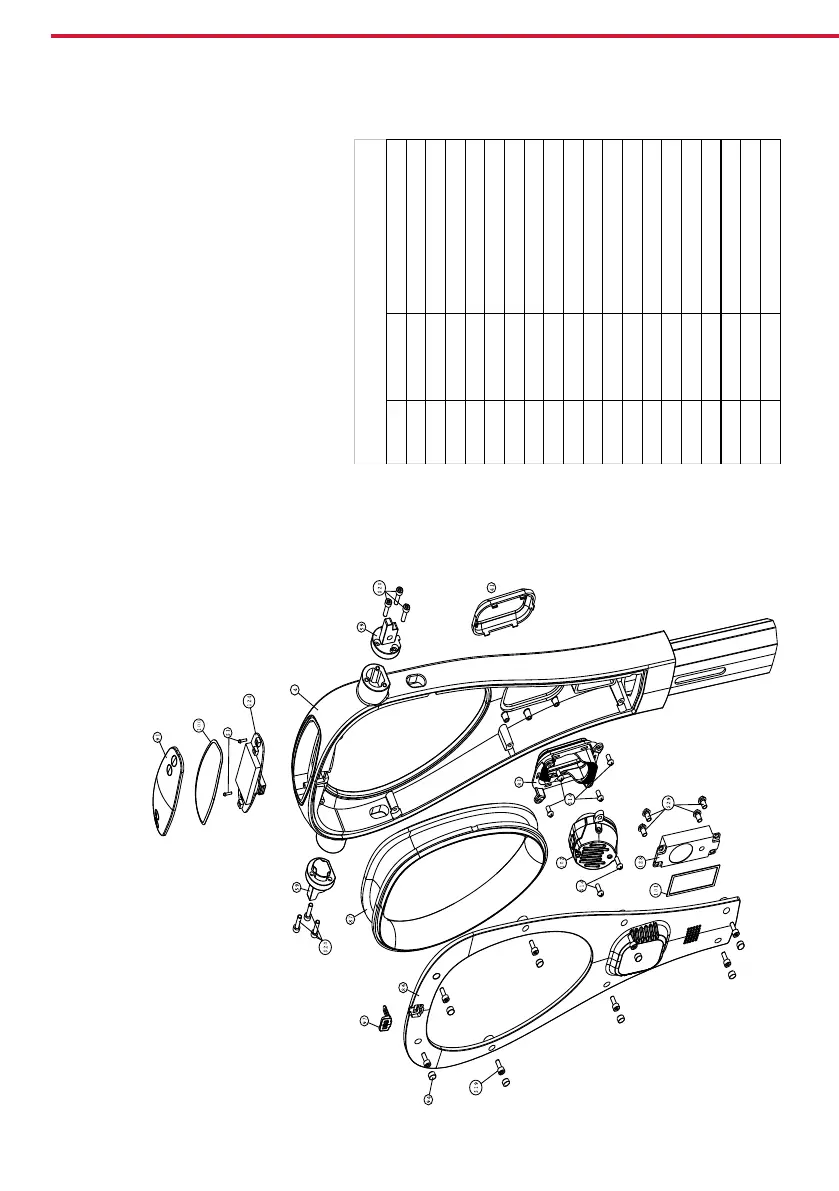

17. DRAWING PARTS AND LIST OF ARTICLE NUMBERS
For Front frame sets-upper , all the pare # will added "U" in front the Icon code
Front frame sets-upper
NO.
Part #
Part name
1
U91
Cover for Display panel
2
U100
Double-sided gum
3
US1
Screw
4
U124
Display panel
5
U4
Front frame
6
U39
Handle base
7
US20
Screw
8
U86
Front frame cover
9
U97
USB plug
10
U94
Screw plug
11
US19
Screw
12
U102
Front lamp set
13
US14
Screw
14
U81
Front lamp cover
15
U128
Music player
16
U101
Double-sided gum
17
US29
Screw
18
U41
Decorative cover
19
U87
Plastic decorative ring
For Front frame sets-upper , all the pare # will added "U" in front the Icon code
Front frame sets-upper
NO.
Part #
Part name
1
U91
Cover for Display panel
2
U100
Double-sided gum
3
US1
Screw
4
U124
Display panel
5
U4
Front frame
6
U39
Handle base
7
US20
Screw
8
U86
Front frame cover
9
U97
USB plug
10
U94
Screw plug
11
US19
Screw
12
U102
Front lamp set
13
US14
Screw
14
U81
Front lamp cover
15
U128
Music player
16
U101
Double-sided gum
17
US29
Screw
18
U41
Decorative cover
19
U87
Plastic decorative ring
U
*For the Front frame sets-upper, all the pare # will added “U“ in front the Icon code
