5
2. VeeCAN 128 Connection Data

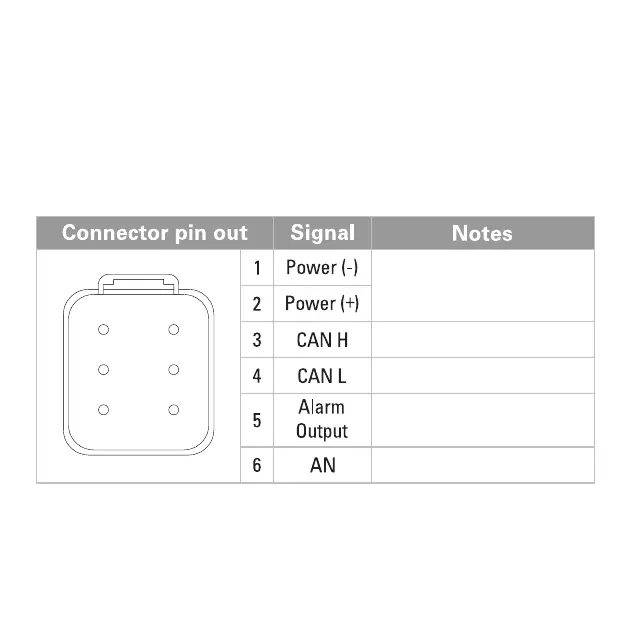

The VeeCAN 128 interfaces to data via the Deutsch DT04-6P connector
on the rear of the display - wired as shown (see pin out diagram).
1
2
34
5
6
Ground and power (10 - 32VDC).
Supply should be protected by
500mA-rated circuit breaker/fuse.
Primary CAN Data High
Primary CAN Data Low
Low Side Relay Switch to Ground
Analog Input
