Vega plicscom - Setup and Adjustment; Adjustment System Overview; Key Functionality

5 Setup
5.1 Adjustment system
1.1
2
3
1

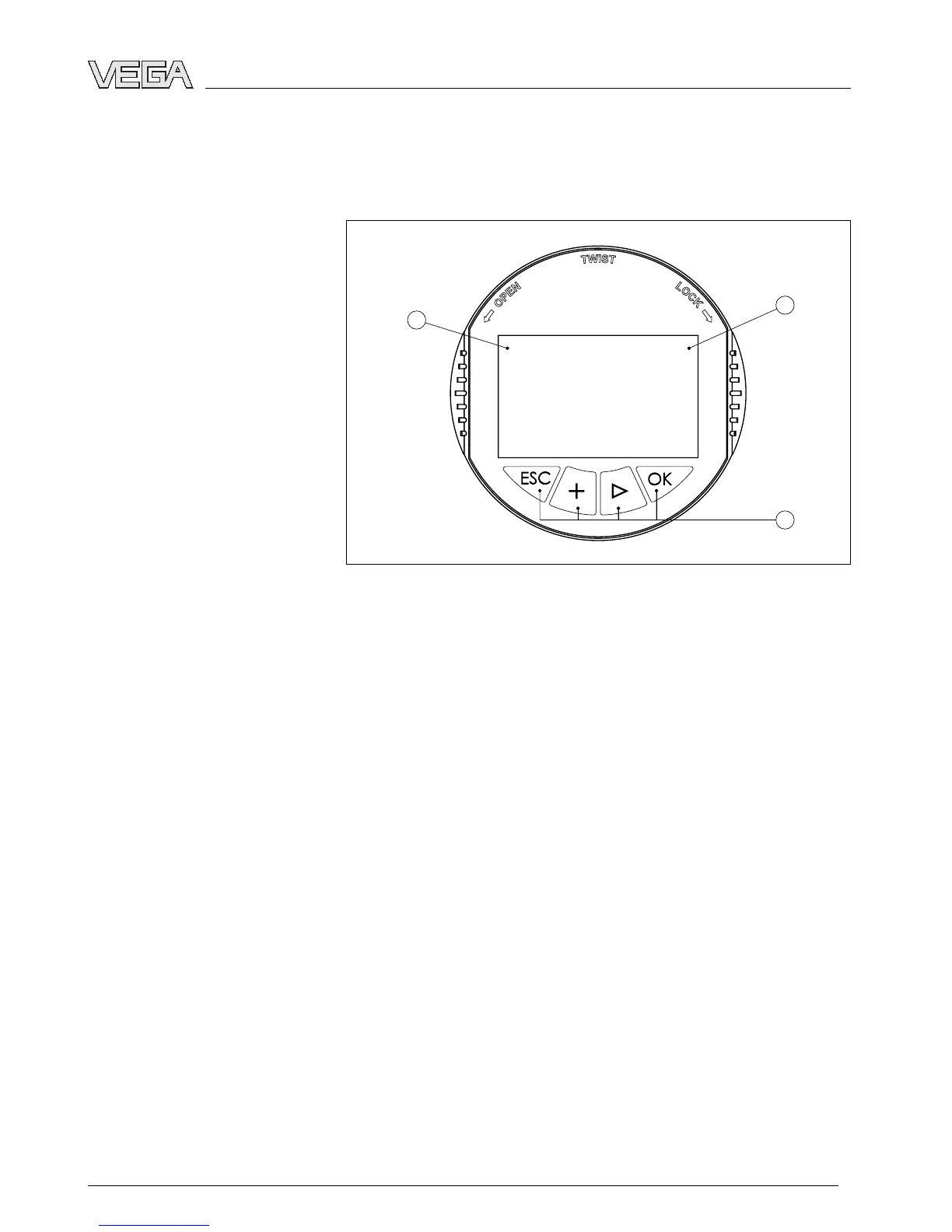

Fig. 4: Indicating and adjustment elements
1 LC display
2 Indication of the menu item number
3 Adjustment keys
l [OK] key:
- move to the menu overview
- confirm selected menu
- edit parameter
- save value
l [->] key to select:
- menu change
- list entry
- Select editing position
l [+] key:
- Change value of a parameter
l [ESC] key:
- interrupt input
- jump to the next higher menu
The sensor is adjusted via the four keys of the indicating and
adjustment module. The LC display indicates the individual
menu items. The functions of the individual keys are shown in
the above illustration. Approx. 10 minutes after the last
pressing of a key, an automatic reset to measured value
Key functions
Adjustment system
Indicating and adjustment module PLICSCOM 11
Setup
