VEGAPULS C 11 • Two-wire 4 … 20 mA
58340-EN-200806
13.2 Dimensions
1 2 3
ø 68 mm
(2.68")
ø 6 mm
(0.24")
SW 41
ø 76 mm
(2.99")
G1½
G1; 1NPT
R1
1½ - 14 NPT
R 1½
23 mm
(0.92")
29 mm
(1.14")
109 mm
(4.28")

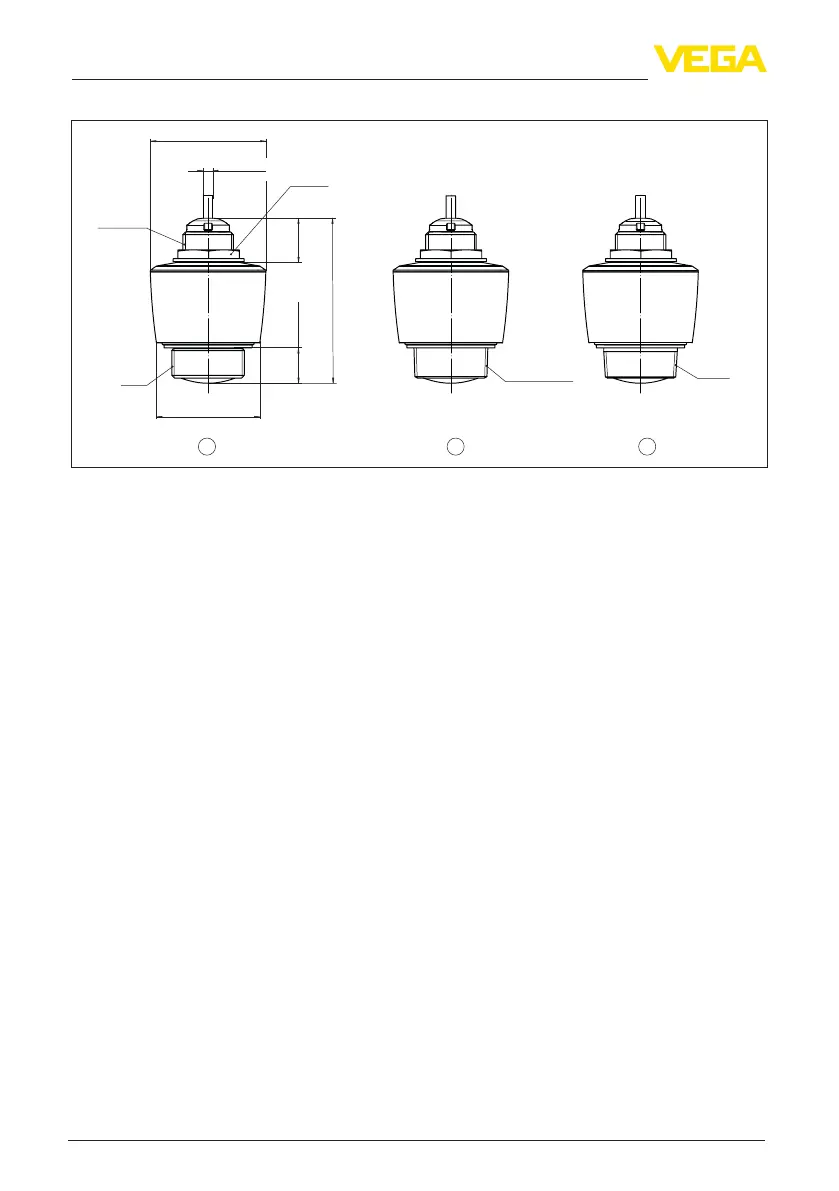

Fig. 25: Dimensions VEGAPULS C 11
1 Thread G1½
2 Thread 1½ NPT
3 Thread R1½
