Velex VX280 - Wire Connection Diagram

10
BREAK(-)
B A
2 2 1
3
4
5
6
7
8 8
7
5
4
REAR RIGHT SP.
BACK UP(+)
(-) (+)
AUTOANT(+)
FRONT RIGHT SP.
(-) (+)
FRONT LEFT SP.
(-) (+)
REAR LEFT SP.
(-) (+)
GMD B+
ISO CONNECTOR

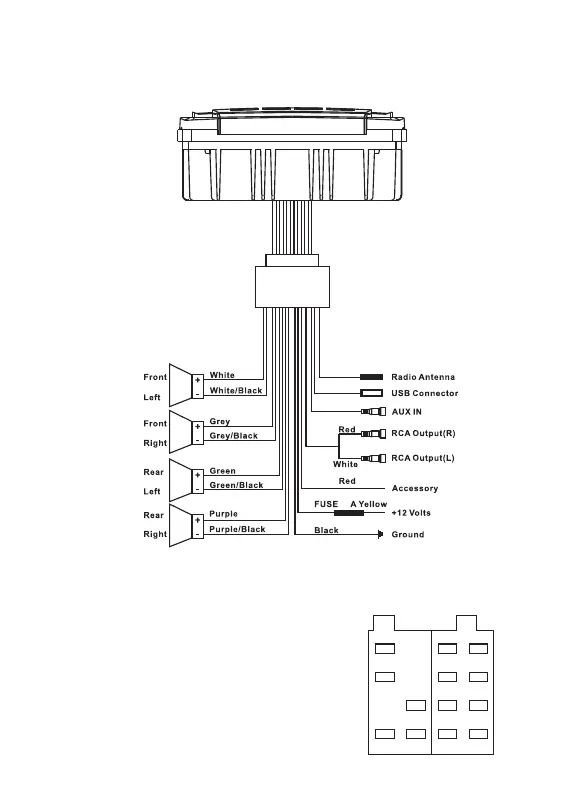

WIRE CONNECTION DIAGRAM
SIDE B
2.: PINK
4.: YELLOW
5.: BLUE
7.: RED
8.: BLACK
SIDE A
1.: VIOLET
2.: VIOLET/BLACK
3.: GRAY
4.: GRAY/BLACK
5.: WHITE
6.: WHITE/BLACK
7.: GREEN
8.: GREEN/BLACK
