Installation
Mounting the Radio VX280
1.Choose a mounting location on the dash board or instrument panel that will allow
room behind to run radio cables to the power source.
Consider how you will use the AUX IN, LINE OUT and USB connectors and route
the appropriate extension cables to an accessible area.
2.A square mounting gasket has been added inside the package for convenience,
trace along the outside edge and this will be your cut out. (around 5.5" wide, 3.6"
tall, 2.5" deep).
IMPORTANT! Do not mount this unit where it can be submerged in water.

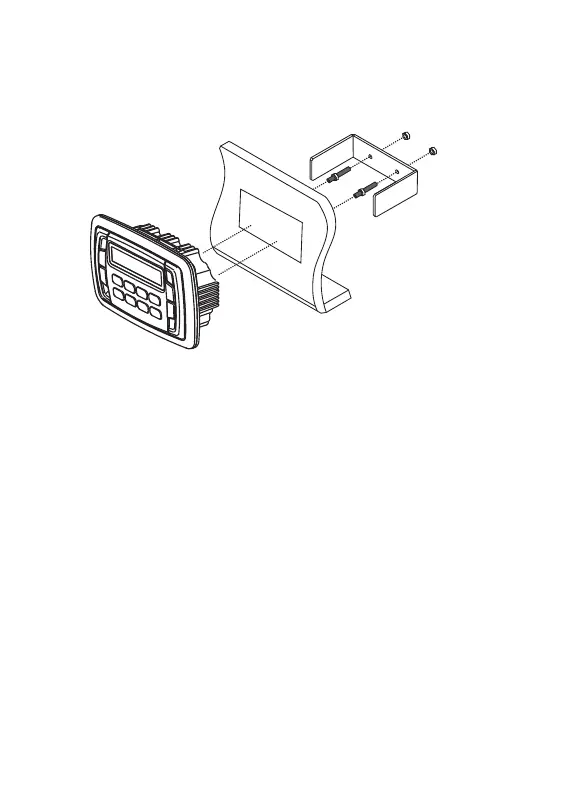

3.Insert the player into the opening, make sure that the gasket behind the player
face seats completely against the mounting surface.
4.Use the bracket and screw to fix the unit.
3.6 Inch Tall
5.5 Inch Wide
2.5 Inch Deep
