PCB assembly

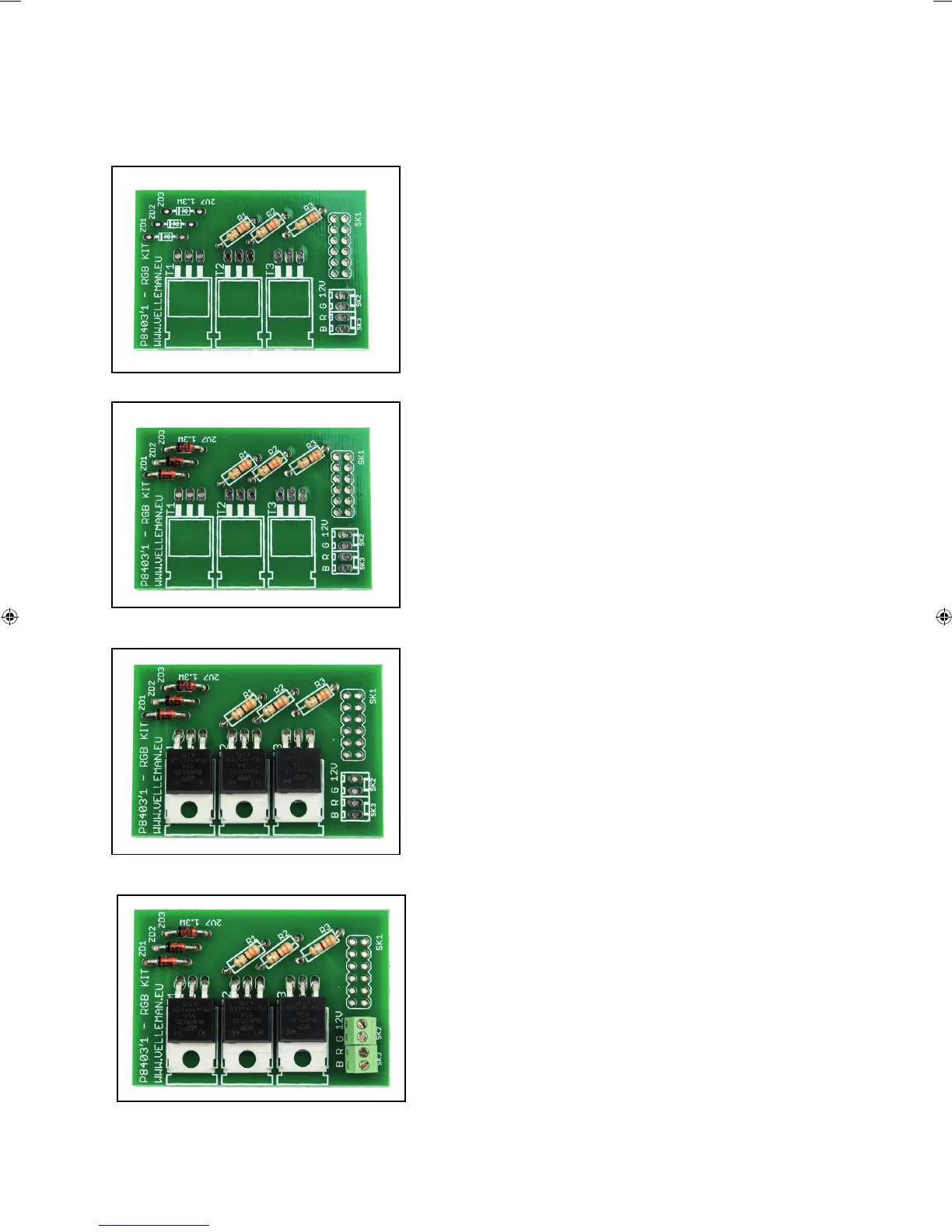

Solder the resistors:
R1, R2, R3: 330 Ω
Orange, Orange, Brown
Solder the zener diodes:
ZD1, ZD2, ZD3: 2V7 - 1.3 W
Mind the polarity marks!
Solder the logic level FETs:
T1, T2, T3: BUK9535-55
Solder the screw terminals:
SK2, SK3: screw terminal, 2 pole, 2.54 mm pitch
g. 3
g.6
g. 5
g.4
