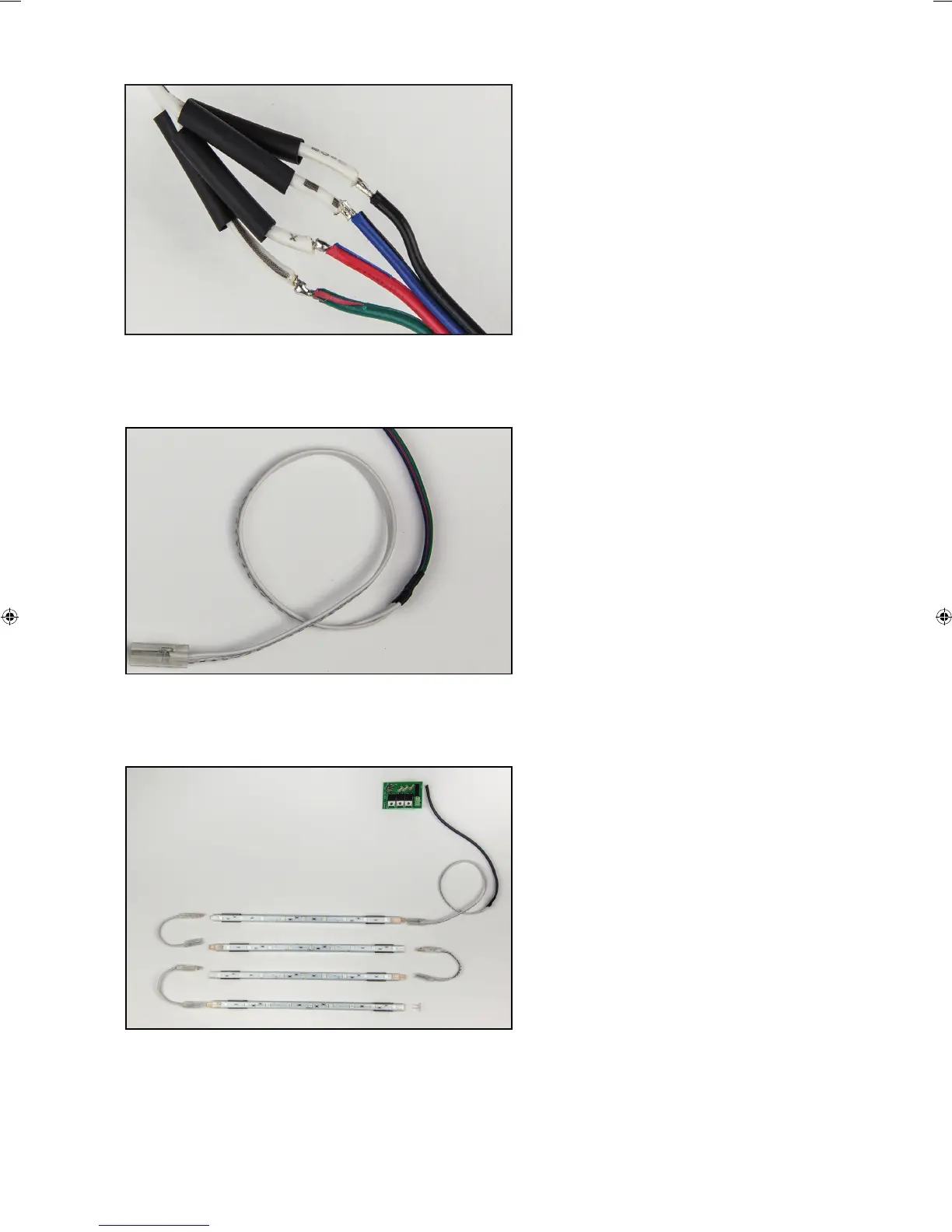

Solder the white cables to the coloured
cable as shown in the picture.
Slide the shrink tubes over the solder-
ing and heat them with a hairdryer or
heatgun to make them shrink.
Connect the LED strips with the 4
white cables, as shown in the picture.
g. 17
Mind which cable is soldered to the
other!
- green wire to white wire with
full black line
- red wire to white wire with Xs
- blue wire to white wire with dotted line
- black wire to white wire with symbols
g. 16
