INSTALLATION
MANUAL

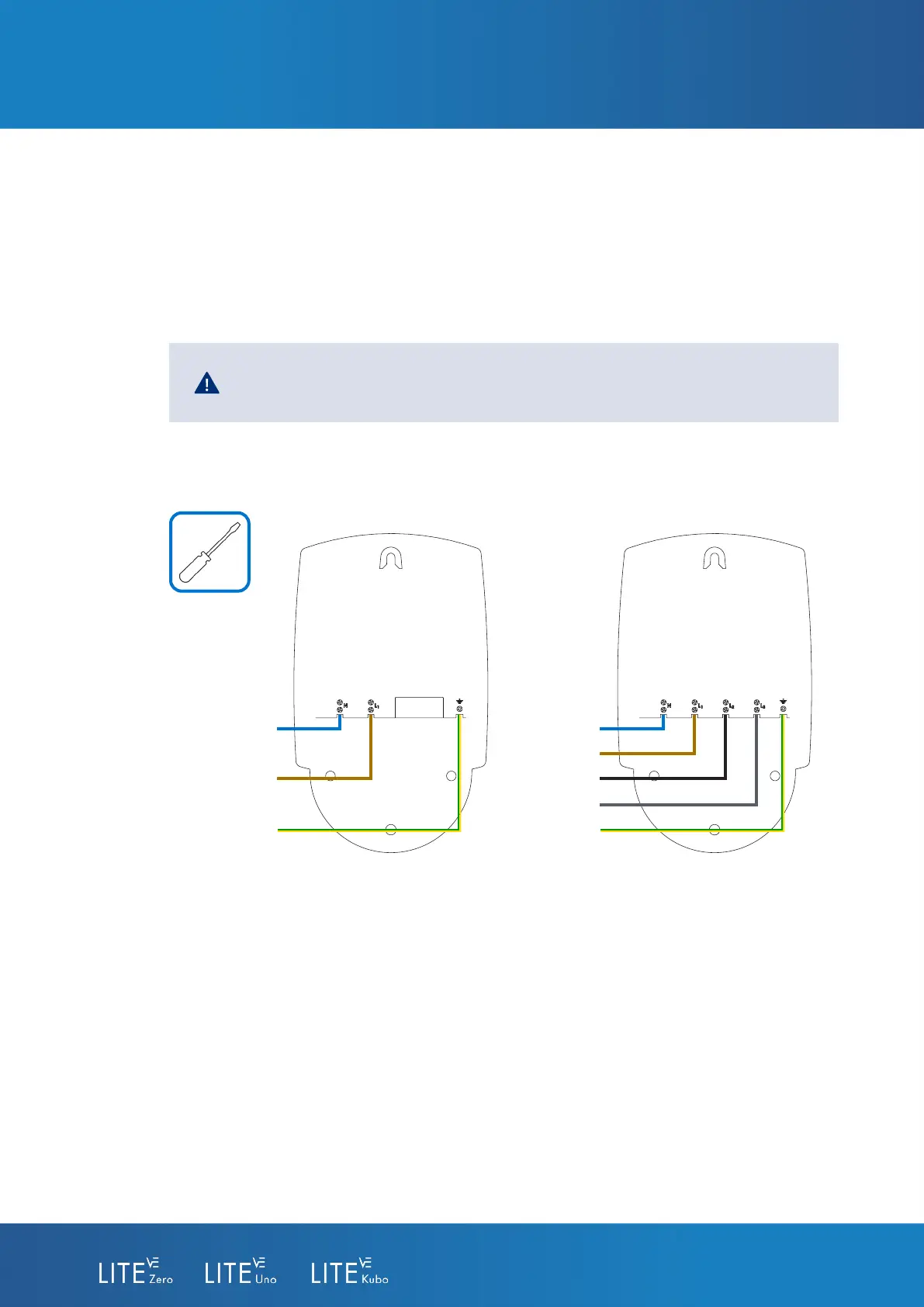

Connect the electric terminals of the power cable to the corresponding points on the
charger.
8
CONNECT THE CHARGER
Neutral
Phase 1
Phase 2
Phase 3
Ground
Neutral
Phase 1
Ground
LITE Zero/Uno LITE Kubo
• OPTIONAL: If you are also going to install a CURVE device, connect the wiring from
that device. For more information, see item 3.3 “INSTALLATION OF THE CURVE
DEVICE”.
• OPTIONAL: If you are going to connect the charger to a single-phase or
three-phase energy meter, a communications device (modem, router, switch, ...)
or to another charger, check that the Ethernet wiring from that device is also
available. For more information, see item 3.4 “INSTALLATION OF THE SINGLE-
PHASE AND THREE-PHASE METER SET” and/or item 3.5 “CONNECTION OF THE
CHARGER TO ANOTHER CHARGER, OR TO A COMMUNICATIONS ELEMENT”.
3- INSTALLATION
Make sure that all screws are securely tightened for eective contact
of the conductor’s active elements.
