VELTIUM LITE Zero - STAND ELEMENT INSTALLATION

13
INSTALLATION
MANUAL
9
OPTIONAL: INSTALLATION OF THE CURVE DEVICE (ZERO/UNO)
In the event of having to install the CURVE device, see item 3.3 “INSTALLATION OF
THE CURVE DEVICE ”.
10
OPTIONAL: INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE
METER SET (UNO/KUBO)
In the event of having to install the SINGLE-PHASE OR THREE-PHASE METER SET, see
item 3.4 “INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET ”.
11
OPTIONAL: CONNECTION OF THE CHARGER TO ANOTHER
CHARGER, OR TO A COMMUNICATIONS ELEMENT
In the event of having to connect the charger to another charger or to a communications
element, see item 3.5 “CONNECTION OF THE CHARGER TO ANOTHER CHARGER, OR
TO A COMMUNICATIONS ELEMENT”.

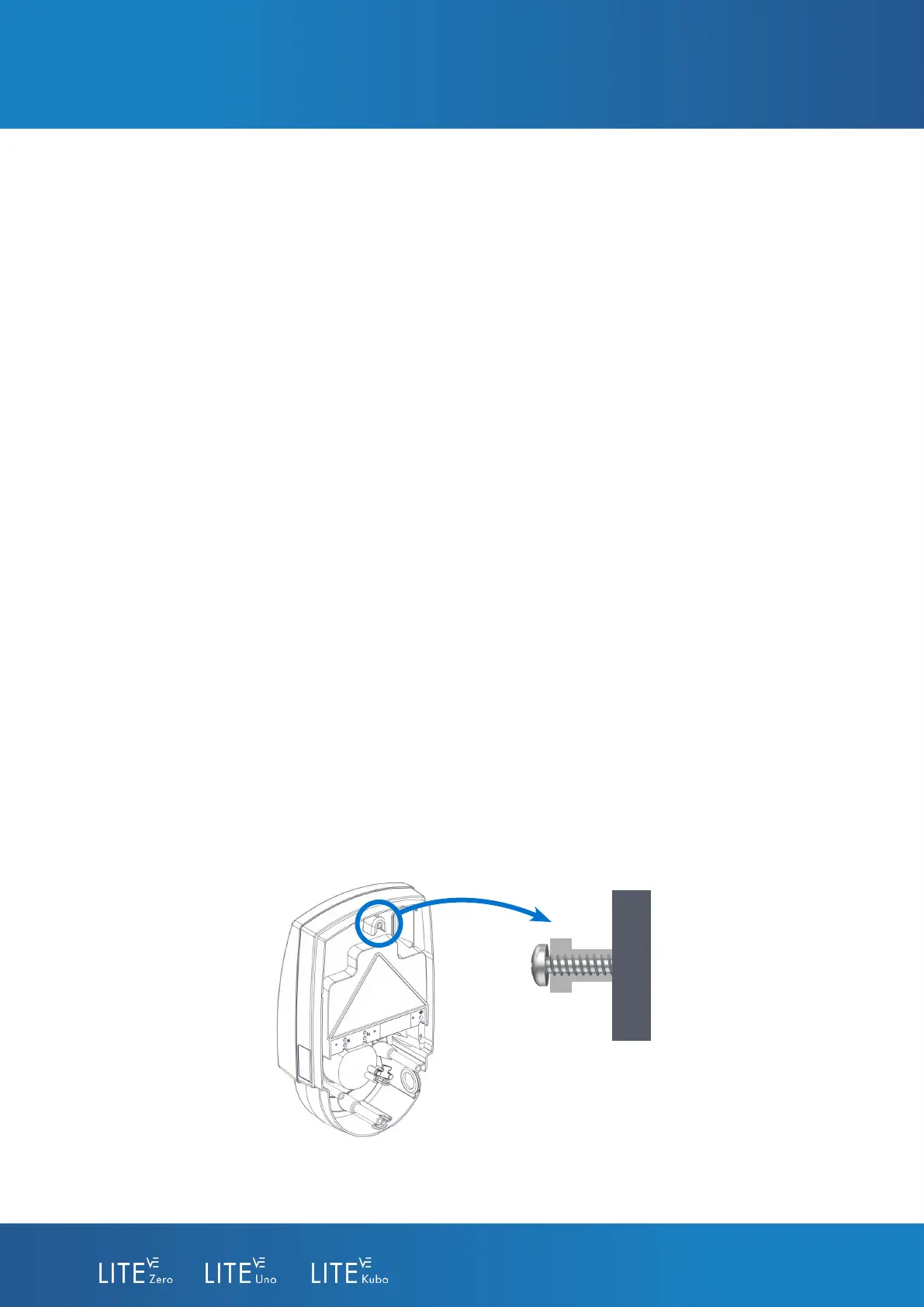

Hang the charger on the upper screw bushing.
12
HANG THE CHARGER FROM THE BUSHING
3- INSTALLATION
