VELUX
®
13
J1
65432132132121
132
+–
2132132132541
LINK FACU
BATTERY
DET.21DET.21
NL
NL
PENL
230V
230V
ERROR-MOTOR 1
ERROR-MOTOR 2
ERROR-SMOKE DET.
ERROR-BREAK GLASS
RAIN SENSOR INPUT
ALARM ACTIVE
ERROR-TEMP. FUSE
MAINTENANCE
BATTERY
PSU2 OK
PSU1 OK
OPERATION
RESET
SETUP
RESET
73˚ C
TEMP. FUSE
TIME
AUTO CLOSE
TIME
OPENNIG
COMFORT
FRONT PANEL
BREAK GLASS POINTRAINRAIN IN COMFORTSMOKERAIN OUT ERRORALARM
FUSE: 25A
MOTOR 2MOTOR 1230V/50Hz
+–
24V
24V
1
ON
23456
L1 in
L1 out
L2
21
SMOKE
L1 in
L2
L2
L1 in
L1 out
L1 out
21
SMOKE
Up to 10 smoke detectors can be connected to
each control system.
Installation
Smoke detector KFA 100 should always be
fitted on the ceiling in accordance with current
national legislation. After fitting the base, the
smoke detector can be snapped into place.
Position dust cover over the smoke detector
until it is ready for operation.

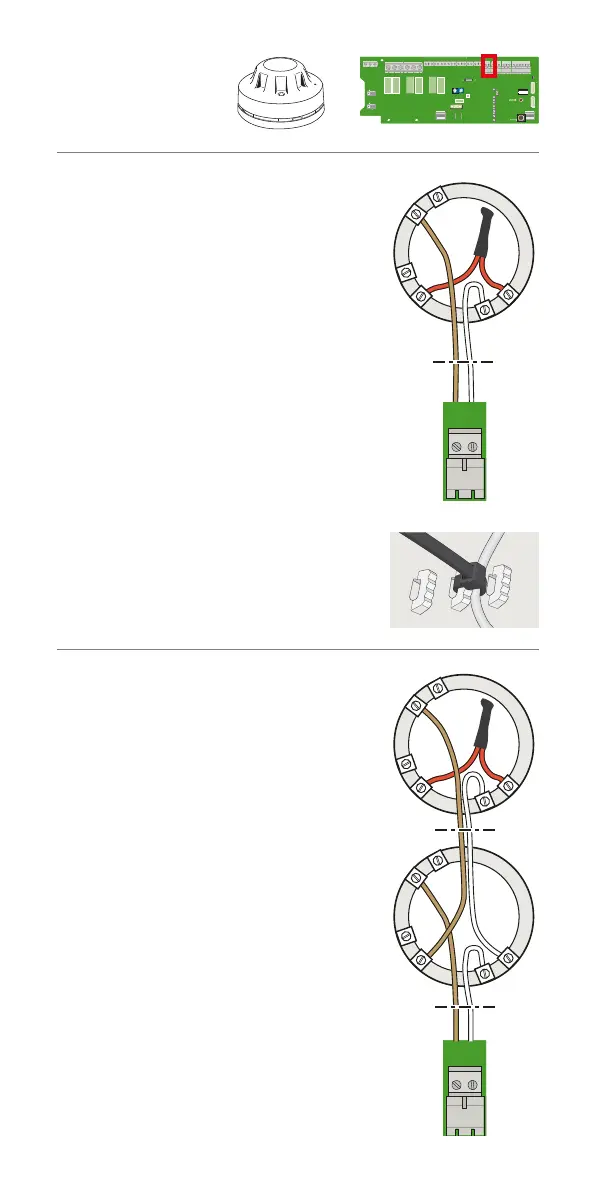

Connection
The smoke detector is connected to the control
unit by means of a 2-core cable with a mini-
mum cross-section of 0.5 mm
2
. This cable can
be up to 100 m long.
Smoke detectors KFA 100 must be installed
in continuous single line connections to ensure
that the complete line from the control unit
to the last detector is monitored. Individual
connection to more than one break-glass point
does not allow for monitoring.
When connecting, lead cable through the rub-
ber membrane and fasten with cable tie.
Terminal module in control system
The terminal module in the control unit must be
moved to the last or only smoke detector – ie to
the smoke detector placed farthest away from
the control unit.
Smoke detector
KFA 100
