Velux 3FC F21 User Manual

VELUX
®
19
J1
65432132132121
132
+–
2132132132541
LINK FACU
BATTERY
DET.21DET.21
NL
NL
PENL
230V
230V
ERROR-MOTOR 1
ERROR-MOTOR 2
ERROR-SMOKE DET.
ERROR-BREAK GLASS
RAIN SENSOR INPUT
ALARM ACTIVE
ERROR-TEMP. FUSE
MAINTENANCE
BATTERY
PSU2 OK
PSU1 OK
OPERATION
RESET
SETUP
RESET
73˚ C
TEMP. FUSE
TIME
AUTO CLOSE
TIME
OPENNIG
COMFORT
FRONT PANEL
BREAK GLASS POINTRAINRAIN IN COMFORTSMOKERAIN OUT ERRORALARM
FUSE: 25A
MOTOR 2MOTOR 1230V/50Hz
+–
24V
24V
1
ON
23456
4 63
5
21
ON
SETUP
463
5
21
ON
SETUP
4 63
5
21
ON
SETUP
4 63
5
21
ON
SETUP
463
5
21
ON
SETUP
4 63
5
21
ON
SETUP

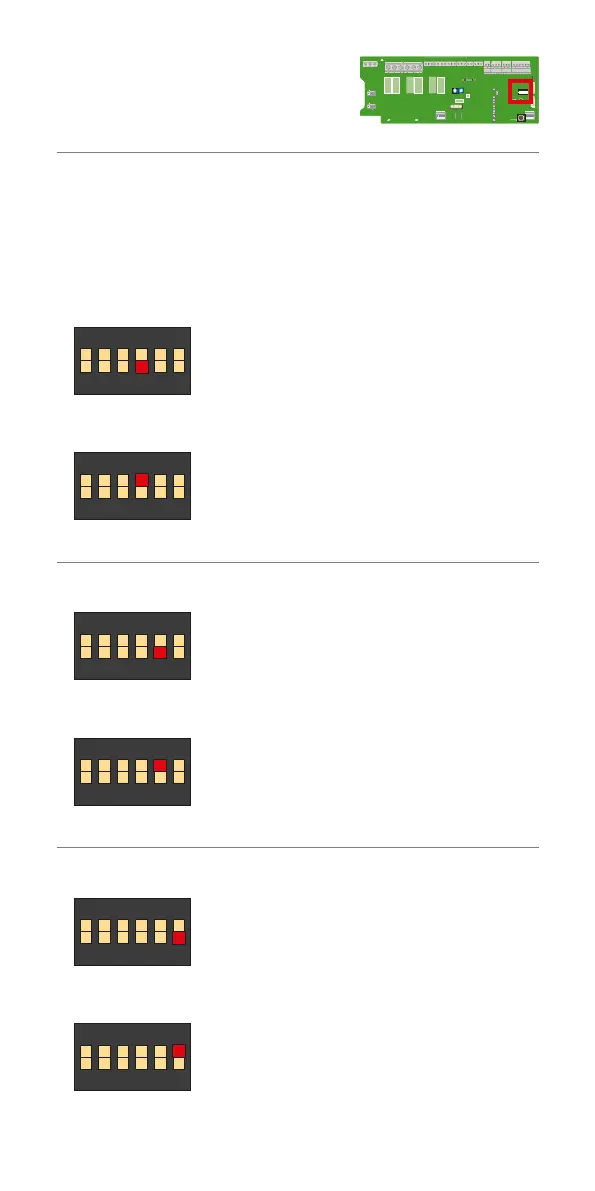

Setting of switches
Automatic, time controlled closing of comfort
ventilation is off.
(Factory setting).
Battery monitoring is on.
(Factory setting).
N/A (No function)
Automatic, time controlled closing of comfort
ventilation is on.
The time is set by means of the timer "AUTO
CLOSE TIME", see section Ventilation switch KFK
200.
Note: When the battery is low, the light-emitting
diode flashes on and off. If the service technician
decides to turn off the diode, the battery monito-
ring is also off.
Battery monitoring is off.
N/A (No function)
Switch 4
Switch 5
Switch 6
