Velux Vario User Manual

VELUX
®
5
MAX
24 V
MAX
230 V AC
CC
RMM
RESET
HVC RAIN POWER
LINK
MOTOR
CC
RMM
RESET
HVC RAIN POWER
LINK
MOTOR
CC
RMM
RESET
HVC RAIN POWER
LINK
MOTOR

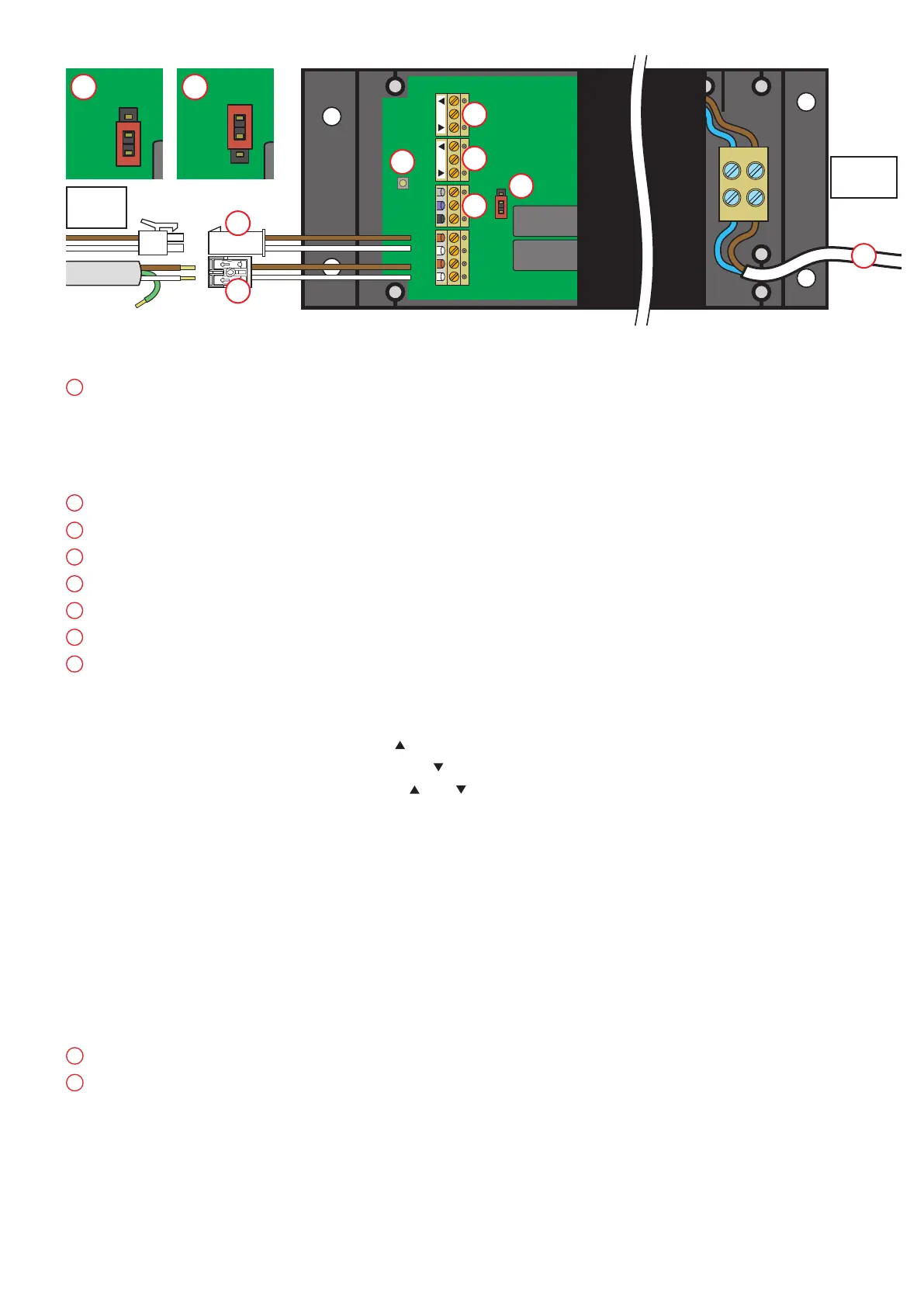

Control unit (connection plan)
1
RESET-button for registration of control or potential-free switch. After a long press (6-10 sec), regis-
tration in control must take place within 10 min.
IMPORTANT! After pairing with the remote control, connect the chain actuator with the top unit
using the locking pin. Now, calibrate the control unit by fully opening and closing the window using the
remote.
2
Potential-free entry for roller blinds
3
Potential-free entry for chain actuator
4
Entry for rain sensor KLA 200
5
Plug connector for roller blinds
6
Plug connector for chain actuator
7
230 V AC, consumption max 250 W
8
Jumper for compulsory chain actuator detection
Potential-free connection and function
Function of entries
OPEN/UP is controlled by connecting C and
.
CLOSE/DOWN is controlled by connecting C and
.
STOP is controlled by connecting C with both
and .
Contact requirements
Potential-free contacts with a maximum resistance of 1 kΩ can be used. A current of 1 mA at 12 V DC
runs through the contact.
Contacts with a pulse signal can be used if the duration of the pulses is between 100 ms and 60 sec.
A contact with a pulse signal between 100 ms and 1 sec will make the product run to its end position.
A contact with a pulse signal between 1 and 60 sec will run the product until the contact is released.
Note: Do not activate the potential-free entries for more than 120 sec, as this could cause the products
to malfunction.
Do not connect voltage to the potential free entries.
Jumper
8A
Auto detection of chain actuator
8B
Compulsory detection of chain actuator
2
3
4
8
7
5
6
1
8A 8B
