Instructions for the installer, maintenance
technician and final user
28
To assemble the vending machine you need to do as follow:

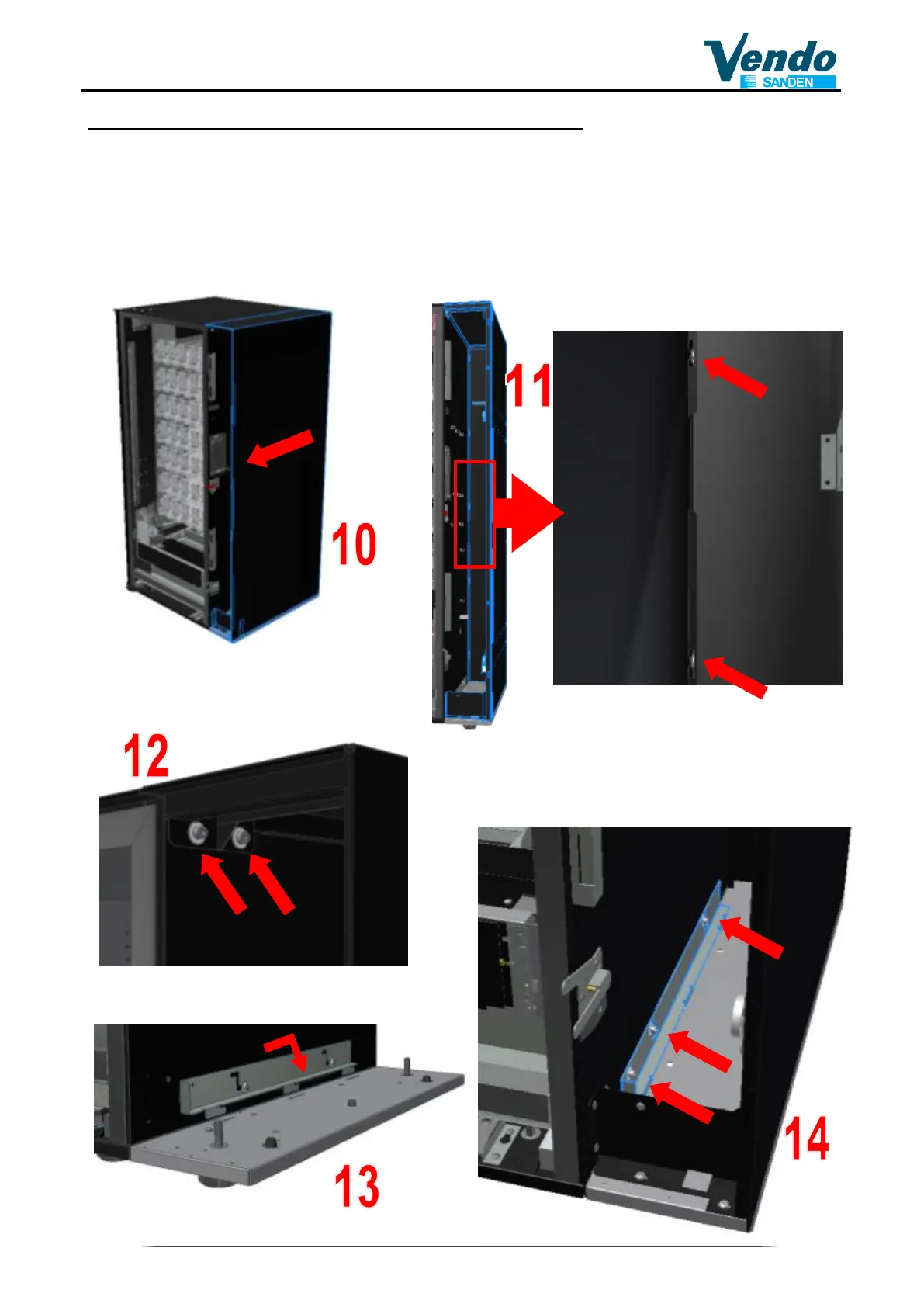

- Place the control panel unit to the right side of the vending machine, be careful to the
harnesses (see image 10)
- Pull forward until the control panel unit properly fits the screw on the back of the cabinet
(see image 11)
- Fix the control panel unit with screws on the top of the cabinet
- Secure the base with the base bracket blocker (see image 13 and 14)
