Venmar HF 3.0 - Dimensions; HRV 2500 and HR 2.5 Units Dimensions; HEPA 3000, HF 3.0, HEPA 4000 Units Dimensions; Mounting and Servicing Considerations

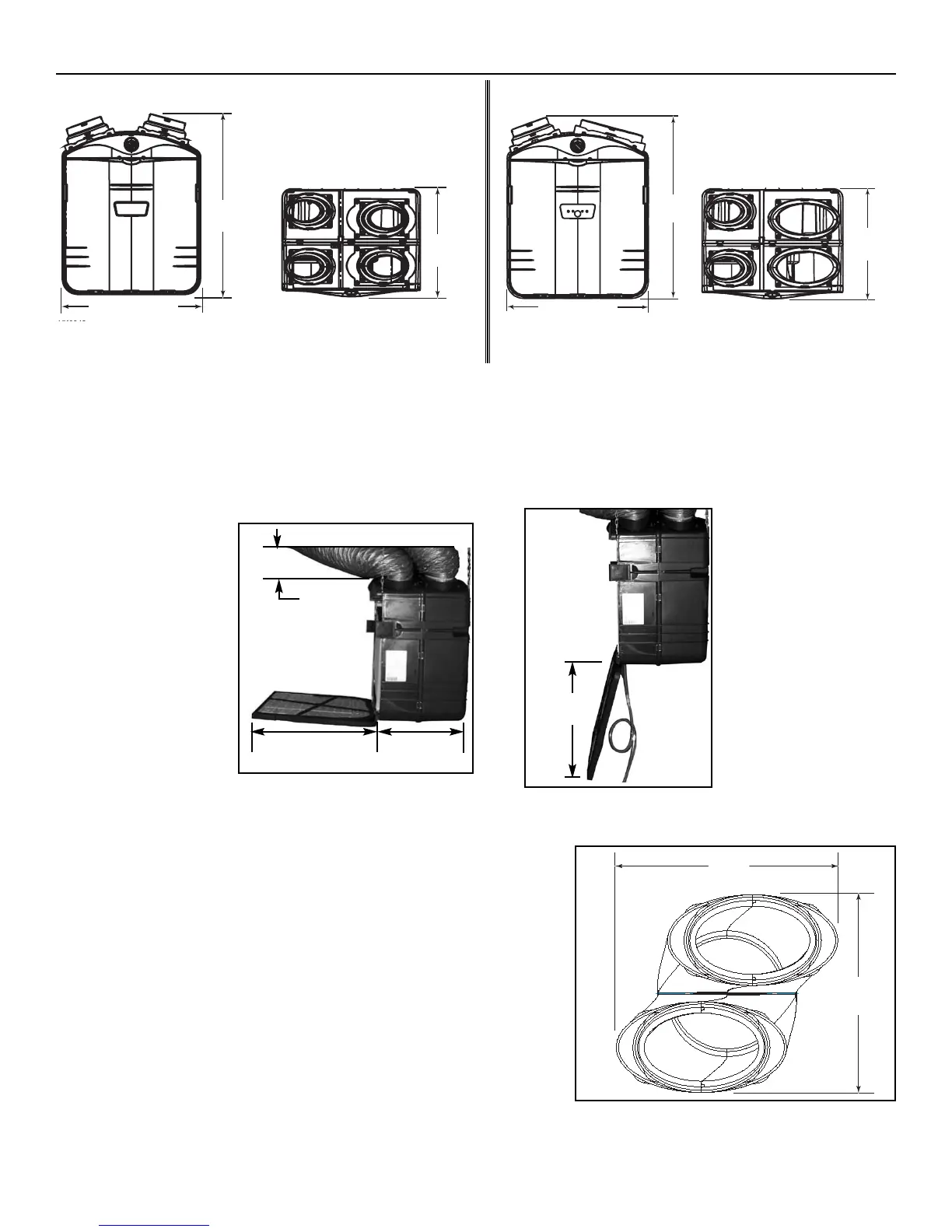

2.2 HEPA 3000, HF 3.0 AND HEPA 4000 UNITS
FRONT VIEW TOP VIEW
- 7 -
2.1 HRV 2500 AND HR 2.5 UNITS
FRONT VIEW TOP VIEW
17.8''
(452 mm)
30.2''
(767 mm)
22.9'' (581 mm)
VK0049
29.4''
(748 mm)
VK0048
17.8''
(452 mm)
22.9'' (581 mm)
2. DIMENSIONS
2.3 MOUNTING AND SERVICING CONSIDERATIONS
• The two following pictures are showing the minimum clearance needed to open the door completely.
22.5” 15.75”
(572 mm) (400 mm)
VD0117
VD0116
22”
(559 mm)
NOTE: A minimum of 8” (203 mm) clearance from any obstruction on top of the unit is required for the ductwork radius turn.
8”
(203 mm)
VD0118
8 3/4"
222 mm
9 3/4"
248 mm
• The joist opening needed to install the Tandem
®
tansition (included in both
installation kits) must be 9 3/4” (248 mm) minimum. Also, the maximum
height of the Tandem
®
transition is 8 3/4” (222 mm). See Tandem
®
transition end view beside.
