4.0 Technical Data (cont’d)

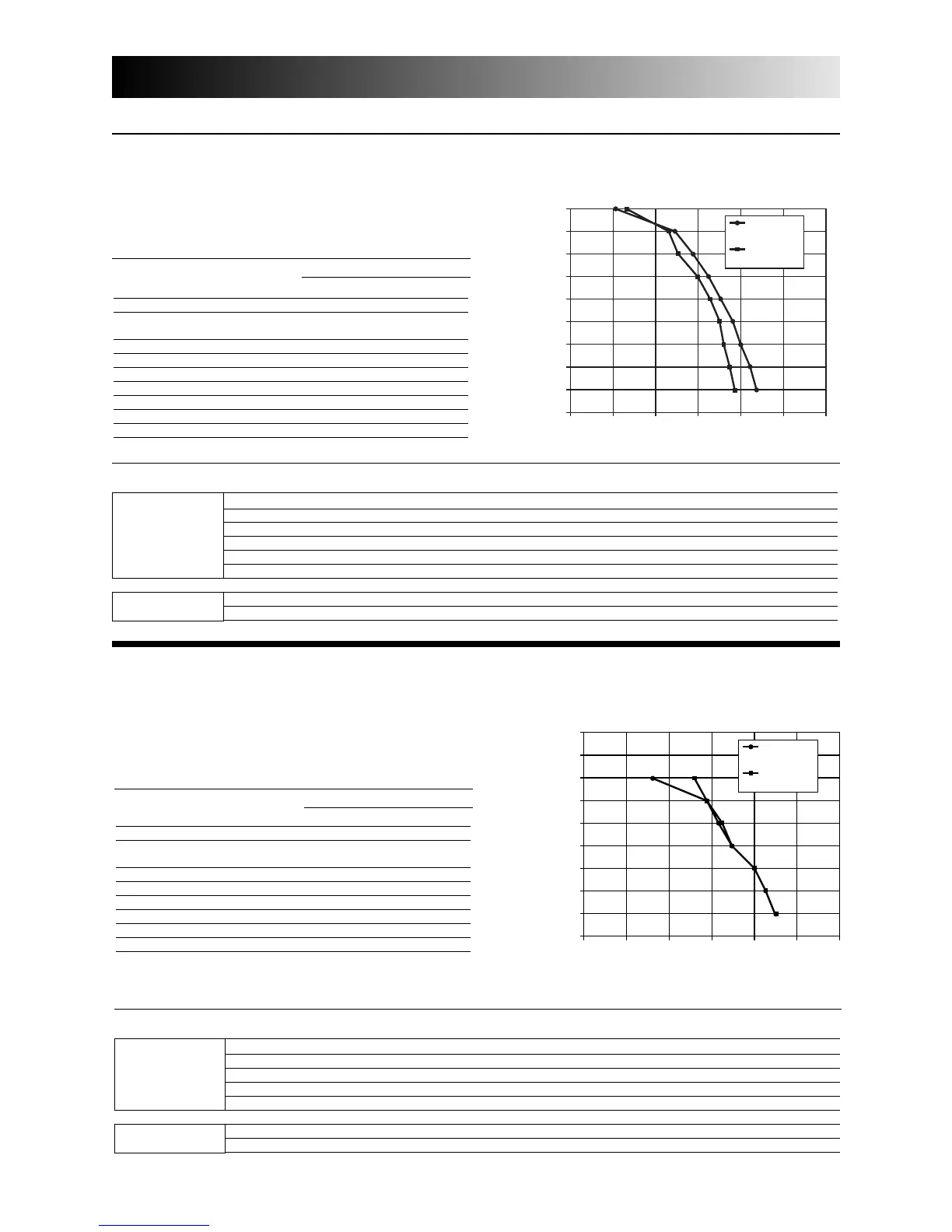

4.3 PERFORMANCE CHARTS
MODEL NUMBER: SOLO 1.5
Electrical requirements: 120 volts, 1.3 amps.
Exhaust air transfer ratio: 0.01
External Static Pressure - Pascals
(250 Pascals = 1” of water)
Gross Air Flow -L/s (0.47L/s = 1cfm)
225
200
175
150
125
100
75
50
25
0
05025 75 100 125
150
VG0010
ENERGY PERFORMANCE
Supply Net Average Sensible Recovery Apparent Sensible Latent Recovery
Temperature Air Flow Power Efficiency Effectiveness Moisture Transfer
°C °F L/s cfm watts % %
0 32 31 66 85 69 81 -0.01
0 32 56 119 124 60 70 -0.01
032
-25 -13 37 78 114 62 80 0.08
-25 -13
Total Recovery Efficiency
35 95 Not tested
35 95
COOLING
HEATING
VENTILATION PERFORMANCE
External Static Net Supply Gross Air Flow
Pressure Air Flow Supply Exhaust
Pa in. w.g. L/s cfm L/s cfm L/s cfm
25 0.1 83 175 83 176 82 175
50 0.2 79 168 80 169 78 165
75 0.3 75 159 75 159 75 158
100 0.4 71 150 71 151 69 146
125 0.5 64 136 64 136 60 127
150 0.6 60 126 60 127 48 103
175 0.7 53 113 53 113 38 80
200 0.8 43 91 43 91 21 45
Supply
(l/s)
Exhaust
(l/s)
External Static Pressure - Pascals
(250 Pascals = 1” of water)
225
200
175
150
125
100
75
50
25
0
05025 75 100 125 150
VG0011
MODEL NUMBER: SOLO 2.0
Electrical requirements: 120 volts, 2.1 amps.
Exhaust air transfer ratio: 0.01
VENTILATION PERFORMANCE
External Static Net Supply Gross Air Flow
Pressure Air Flow Supply Exhaust
Pa in. w.g. L/s cfm L/s cfm L/s cfm
25 0.1 110 234 112 237 112 237
50 0.2 104 219 105 223 106 225
75 0.3 98 208 100 211 99 210
100 0.4 89 189 91 192 91 193
125 0.5 84 177 85 180 82 174
150 0.6 71 151 72 153 71 149
175 0.7 64 136 65 138 44 94
ENERGY PERFORMANCE
Supply Net Average Sensible Recovery Apparent Sensible Latent Recovery
Temperature Air Flow Power Efficiency Effectiveness Moisture Transfer
°C °F L/s cfm watts % %
0 32 56 119 124 60 70 -0.01
0 32 86 182 197 53 62 -0.01
-25 -13 37 78 114 62 80 0.08
-25 -13
Total Recovery Efficiency
35 95 Not tested
35 95
COOLING
HEATING
Supply
(l/s)
Exhaust
(l/s)
Gross Air Flow -L/s (0.47L/s = 1cfm)
