Vent-a-Hood B100 Single User Manual

Page 4L110 1213A
6” Outlet
Vent
Hole
3 ¼”
Electrical
Centerline
of Hood
Wall Side
1 ¾”
1 ⁄”5 ¼”
Electrical
1 ¾”
Centerline
of Hood
8” Outlet
Vent
Holes
5 ¼”5 ½”
Wall Side
8” Outlet
6” Outlet
5 ¼”
Wall Side
Vent
Holes
Centerline
of Hood
Electrical (2)
5 ½”
7 ⁄”
1 ⁄”
7 ⁄”
1 ¾”
11” 11”
5 ½” 5 ½”
Wall Side
5 ¼”
1 ¾”
Electrical (2)
8” Outlet
Vent
Holes
8” Outlet
Centerline
of Hood
Installation Details Continued
Connection Diagrams (30”- 48” Widths)
Connection Diagram (42”- 60” Widths) Connection Diagram (48”- 66” Widths)
900 CFM B200 Dual & B100 Single Blower
(Top View)
1200 CFM Double B200 Dual Blowers
(Top View)

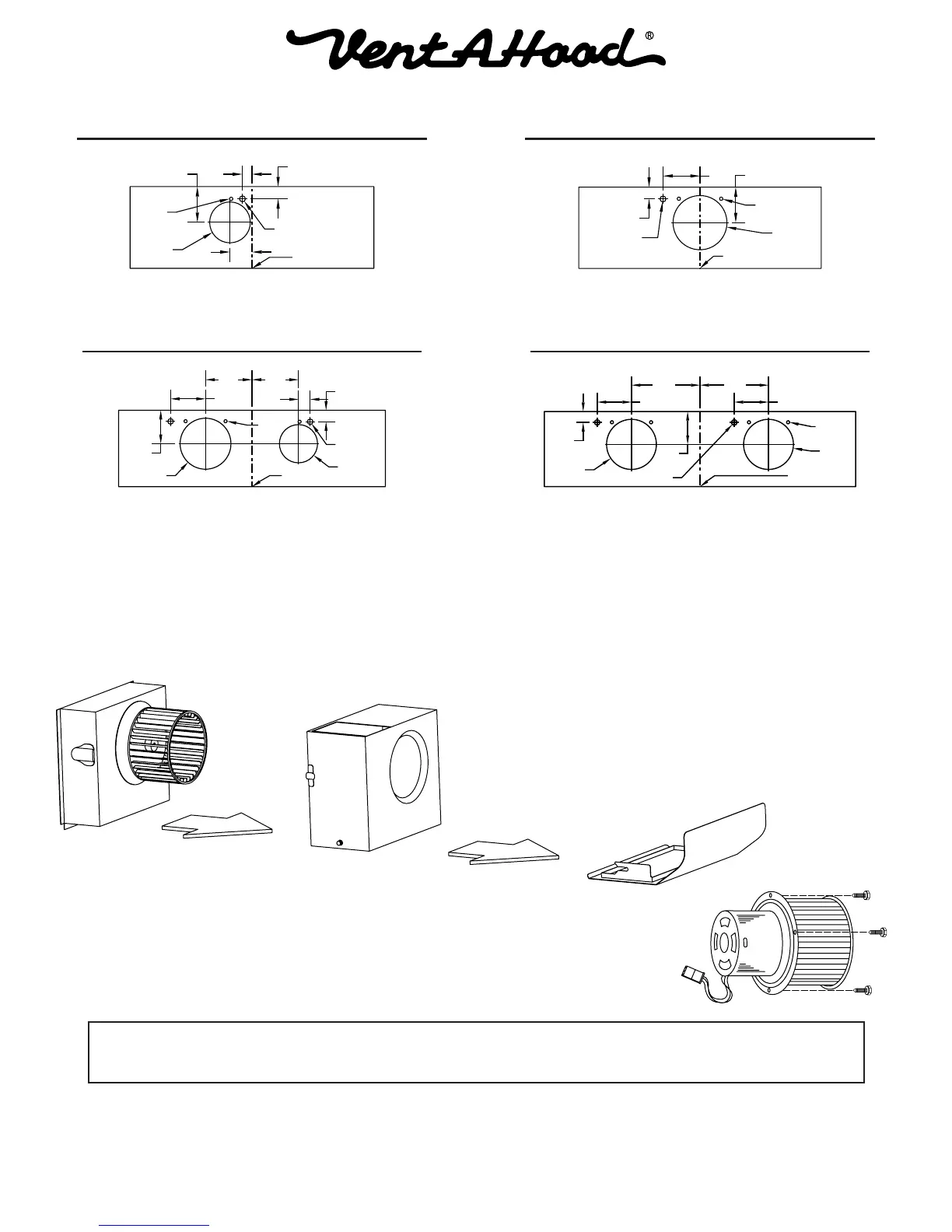

5) Remove the hood from its packaging and place the back of the hood on the oor or countertop in front of the wall
where it will hang.
6) Remove the shipping tape that is securing the E-Z Clean shield(s) inside the hood. Remove the E-Z Clean shield(s) by
lightly pulling it toward the front of the hood. Gently close the back draft damper(s) from the top side of the hood. To
remove the blower housing(s), unsnap the suitcase latches (one on each side of the housing). The housing(s) should
be pulled forward and gently “tipped” to clear the blower wheel(s) and then out of the hood.
Warning: Make sure power is off and locked at the service disconnecting
means on the service panel during installation.
600 CFM B200 Dual Blower
(Top View)
300 CFM B100 Single Blower
(Top View)
Connection Diagrams (30”- 54” Widths)
7) Remove the three screws retaining the blower motor(s). Unplug
and remove the motor(s), taking care not to damage the blower
wheel(s). It is not necessary to remove the blower wheel from
the motor.
