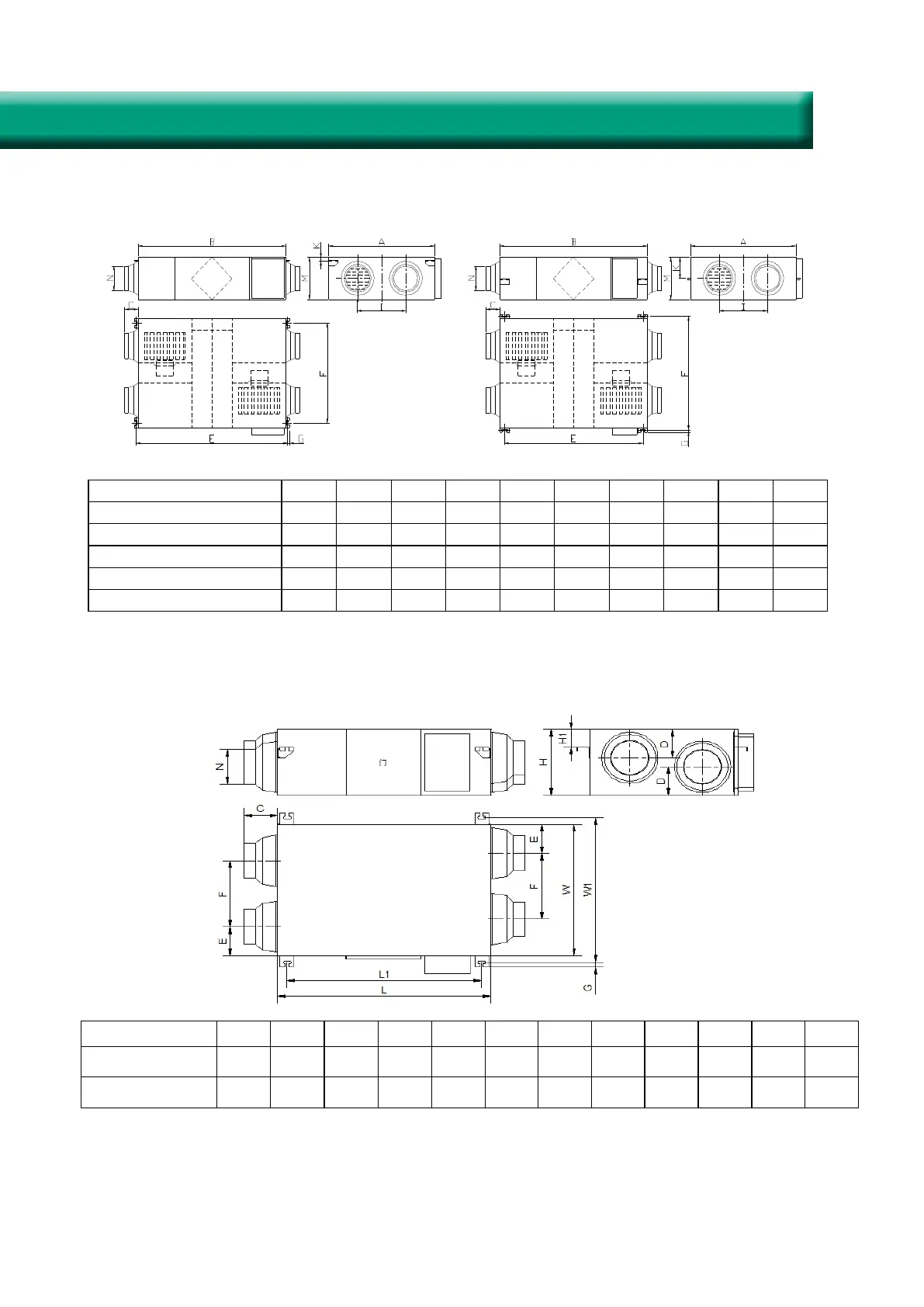

Venting VHBQi-D015TFA - Dimensioned Drawings

VENTING VHBQi-D015TFA to VENTING VHBQi-D065TFA
7
Dimensioned Drawings
Electric
Box
EA
OA
EA
OA
SA
RA
RA
SA
Electric
Box
Model A B C E F G I
K M N
VENTING VHBQi-D015TFA 580 666 100 725 510 19 290 20 264 φ144
VENTING VHBQi-D025TFA 599 744 100 675 657 19 315 111 270 Φ144
VENTING VHBQi-D035TFA 804 744 100 675 862 19 480 111 270 Φ144
VENTING VHBQi-D050TFA 904 824 107 754 960 19 500 111 270 φ194
VENTING VHBQi-D065TFA 884 1116 85 1045 940 19 428 170 388 φ242
Electric
box
E
A
O
A
S
A
R
A
Model L L1 W W1 H H1
N C
D
E F
G
VENTING VHBQi-
D080TFA
1126 1056 834 891 388 169 Φ242 86 157 152 436 21
VENTING VHBQi-
D100TFA
1129 1060 1216 1273 388 171 Φ242 86 147 152 621 21
VENTING VHBQi-D080TFA to VENTING VHBQi-D100TFA
