APPENDIX 2: FACEPLATE INSTALLATION

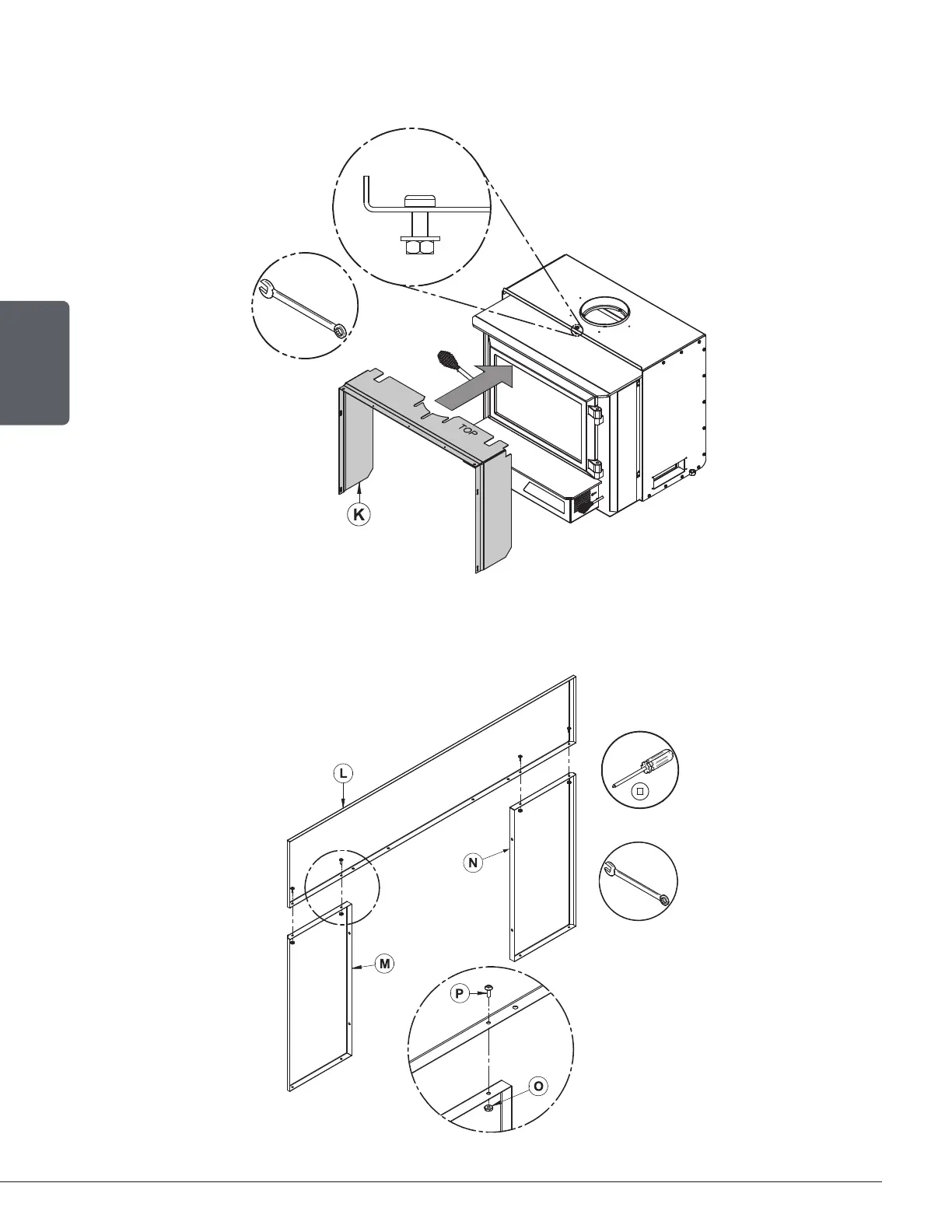

1. Remove the faceplate extension (K) secured between the firebox and the convection air jacket.
2. Lay the panels on a flat and non abrasive surface. Align the top panel holes (L) with the left (N)
and right (M) panels. Secure together using the four bolts (P) and nuts (O) provided.
C
DETAIL C
