Page 15
Installation and Operation Requirements - HES140
ENGLISH

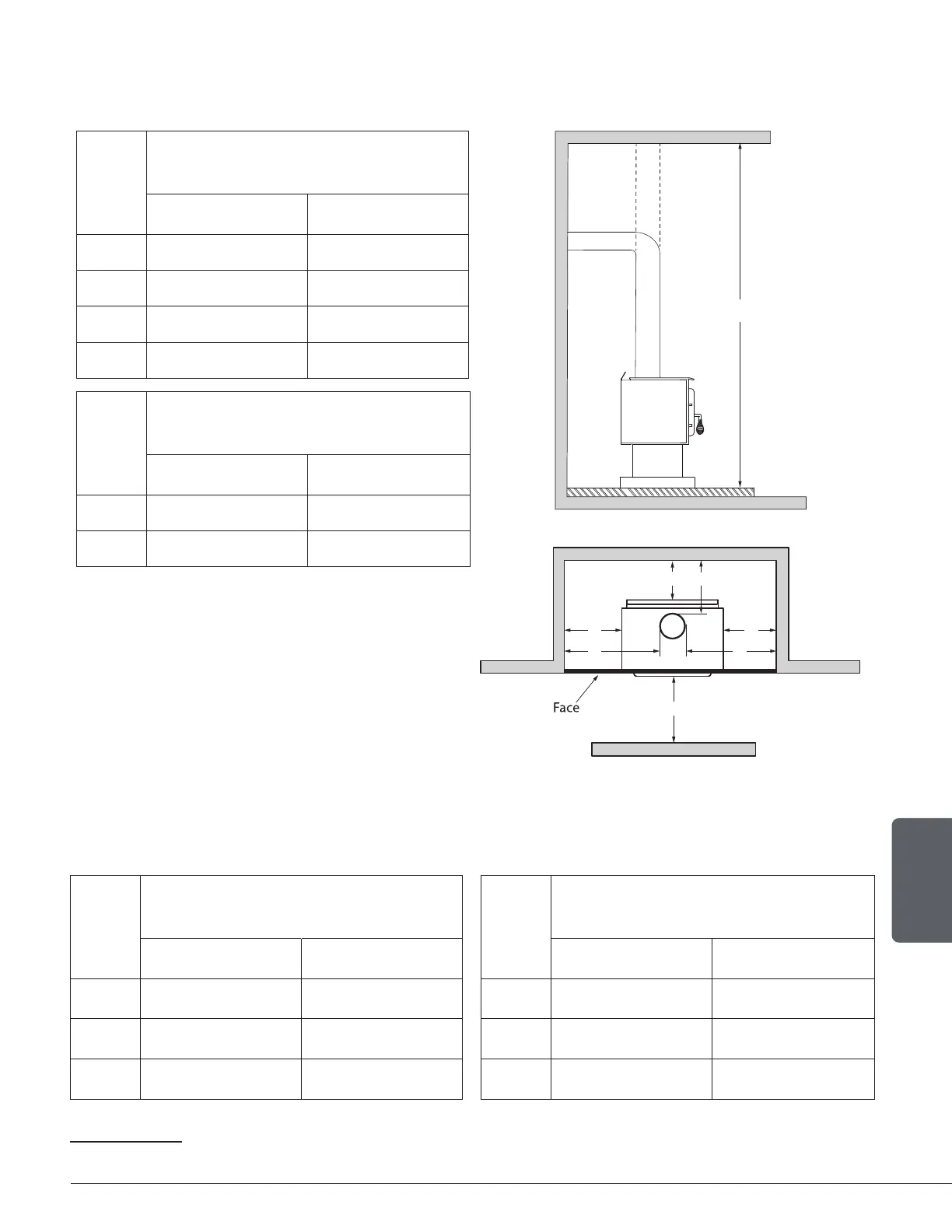

3.1.4 Inside a Combustible Alcove
See section 3.1 for the single wall pipe installation.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A
6" (152 mm) 6" (152 mm)
B
13" (330 mm) 13" (330 mm)
K
48" (1219 mm) 36" (914 mm)
L
72" (1829 mm) 72" (1829 mm)
Ve
Ho
L
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D
9 ¼" (235 mm) 9 ¼" (235 mm)
E
19" (483 mm) 19" (483 mm)
A
B
E
D
K
E
B
3.1.5 Mobile Home
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A
6" (152 mm) 6" (152 mm)
D
9 ¼" (235 mm) 9 ¼" (235 mm)
B
12" (305 mm) 12" (305 mm)
E
18" (457 mm) 18" (457 mm)
C
6" (152 mm) 6" (152 mm)
F
12 7/8" (327 mm) 12 7/8" (327 mm)
19
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
