Ventis HES140 - Mobile Home Clearances with Heat Shield

Page 16
Installation and Operation Requirements - HES140
ENGLISH
3.1.6 Mobile Home With Heat Shield AC02762
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.

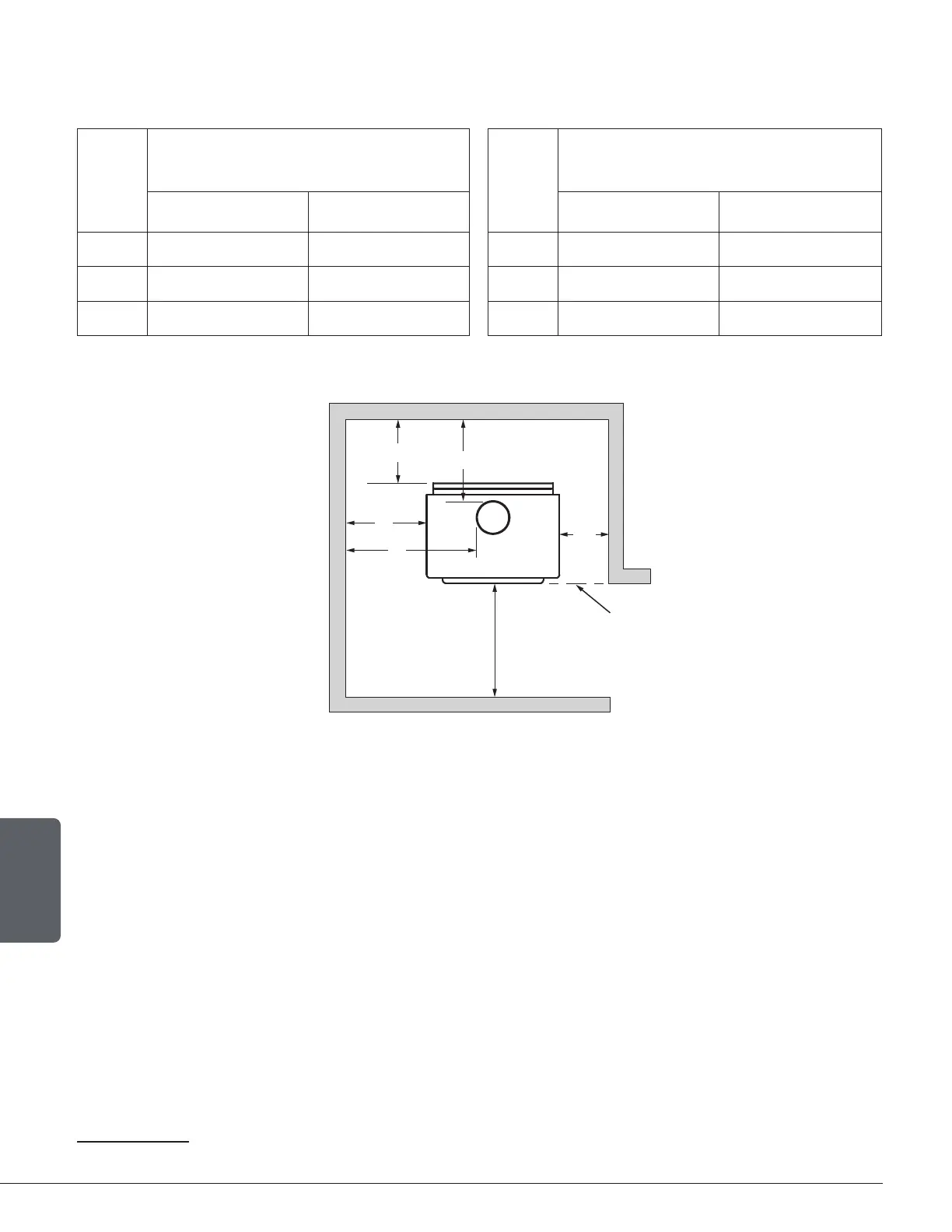

APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
20
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A 3" (76 mm) 3" (76 mm) D 6 ¼" (159 mm) 6 ¼" (159 mm)
B 3" (76 mm) 3" (76 mm) E 9" (229 mm) 9" (229 mm)
C 3" (76 mm) 3" (76 mm) F 9 7/8" (251 mm) 9 7/8" (251 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
If the clearance reduction is on the same side as the door handle, position the stove
at a minimum of 6 inches from the side wall (clearance B), otherwise it may be located
at the clearance shown in the table above.
20
Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements
de l’appareil mentionnés ci-dessus.
