ELECTRICAL CIRCULAR DUCT HEATERS
EKA
54
≤ 3,6 kW
> 3,6 Kw

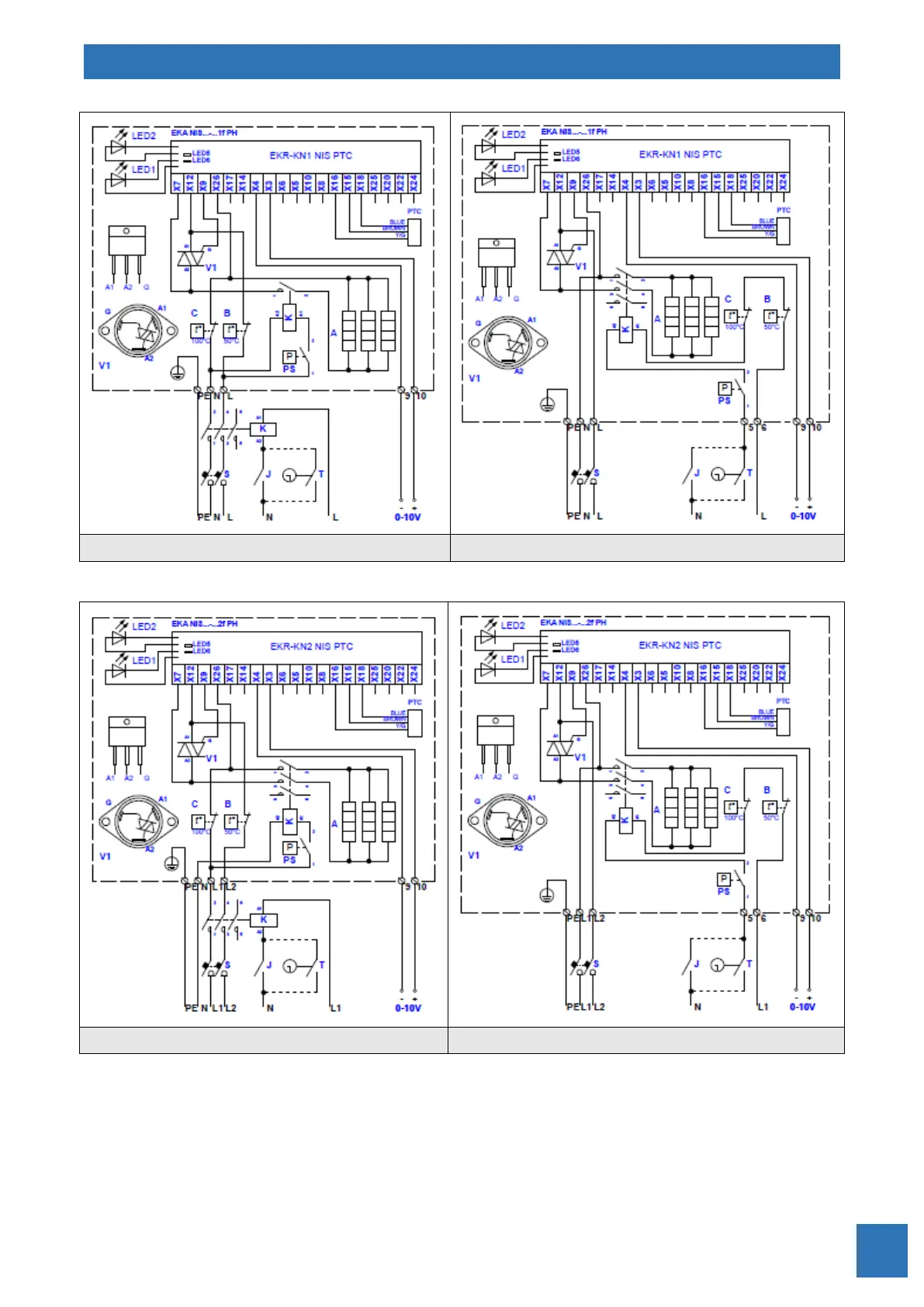

Fig. 82. Electrical wiring diagrams of single phase 230V heater EKA NIS…-…-1f PH
≤ 6 kW
> 6 Kw
Fig. 83. Electrical wiring diagrams of 2-phase 400V heater EKA NIS…-…-2f PH
