ELECTRICAL CIRCULAR DUCT HEATERS
EKA
55

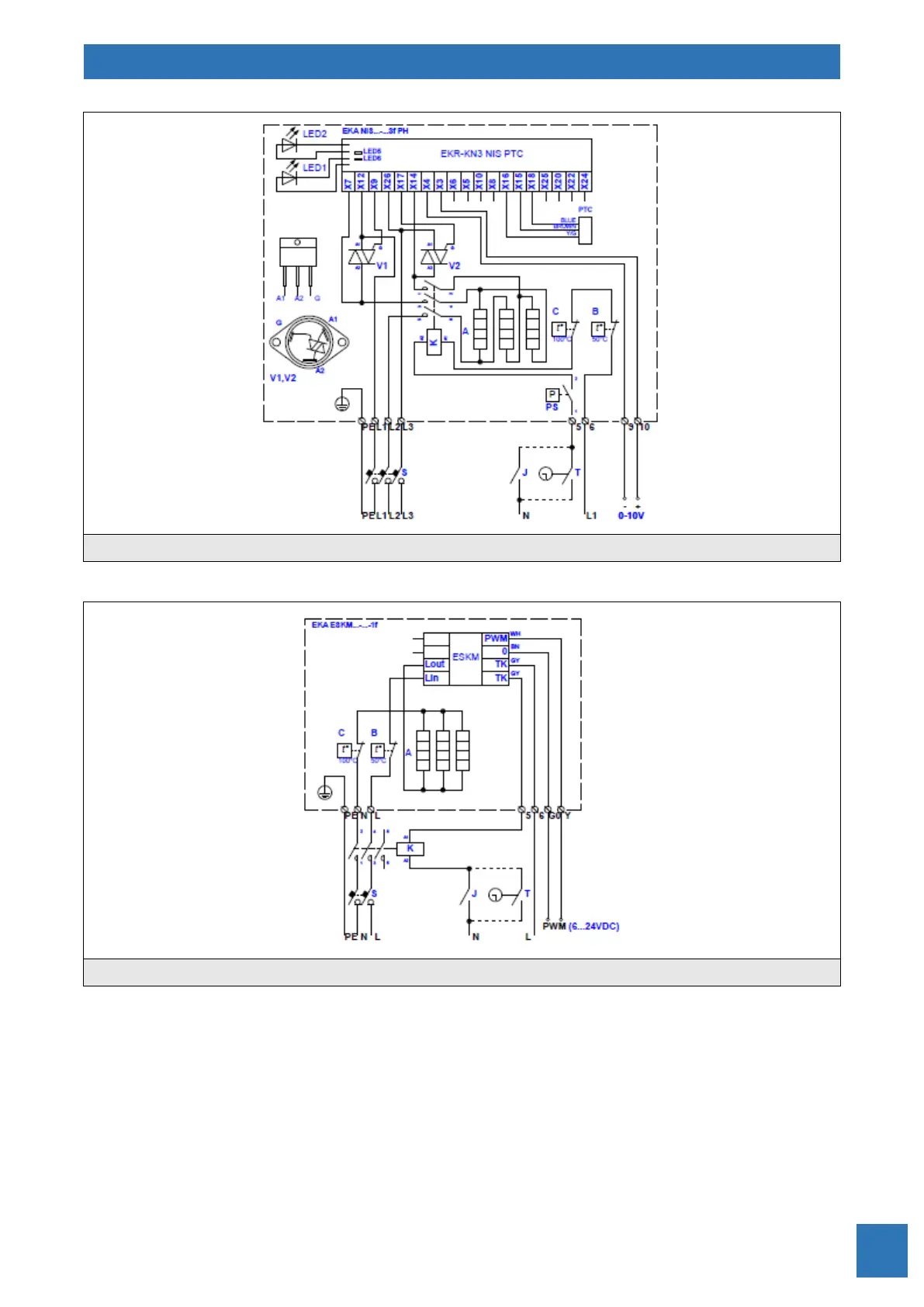

Fig. 84. Electrical wiring diagram of 3-phase 400V heater EKA NIS…-…-3f PH
≤ 3 kW
Fig. 85. Electrical wiring diagram of single phase 230V heater EKA ESKM…-…-1f
