SAFETY REQUIREMENTS
Disconnect the fan from power mains prior to any installation, setup, maintenance and repair
operations.
The fan must be connected by an expert qualified for unassisted operations with electrical
installations up to 1,000 V after being made familiar with the present technical certificate.
Prior to installation check for any visible damage to the impeller, casing and grille.
Also check the casing flow channel for any foreign objects which may damage the impeller
wheel blades.
The fan may only be used as intended. No modifications or alterations are allowed.
The fan is not intended for operation by children or any persons with reduced physical, mental
or sensory capacities, lacking practical experience or knowledge unless controlled or briefed
on the device operation by the person responsible for their safety.
The fan may not be used to handle air containing highly flammable substances or vapours
such as alcohol, petrol etc.
The fans take 230 V 50/60 Hz single-phase alternating current.
Children being supervised not to play with the appliance!
FAN DESIGN
1
2
3
1
4
5
6
7

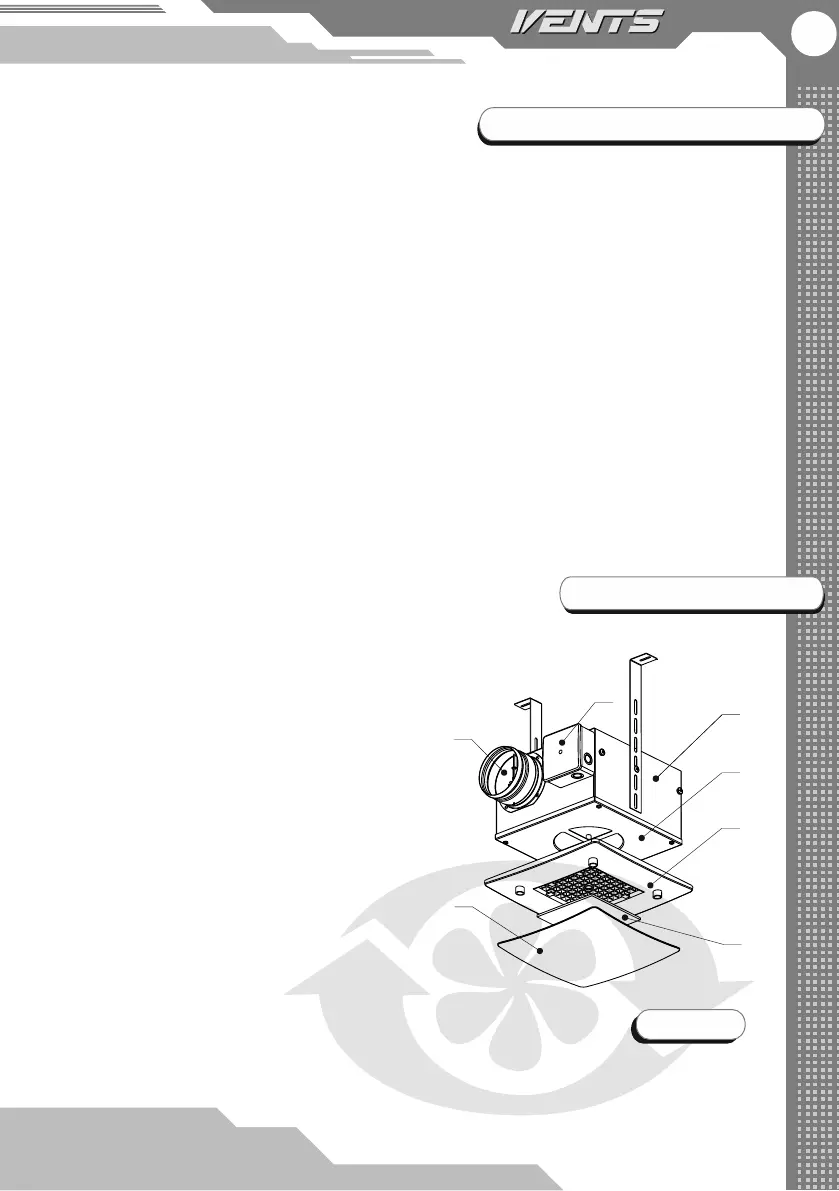

The VP ceiling fan (Fig. 2) comprises of casing 1 with lid 2.
The casing has an exhaust outlet 3 with a check valve
which prevents back flow of air while the fan is off.
Terminal box 4 containing the terminals for
connecting the fan to power mains is mounted
to the casing. Grille 5 with air filter 6 is attached
to the casing with screws.
Decorative front panel 7 locks into the slots on grille 5.
The casing houses a single-phase electric motor
with a centrifugal impeller and backward-curved
blades. The electric motor has integrated thermal
protection and restarts automatically.
The replacement of parts of the safety suspension
system device shall be performed by the
manufacturer, its service agent or suitably qualified
persons!
Figure 2
VP
