The Ventum GS1 is a high-performance gravel bike designed for off-road comfort, versatility, and speed. Born and tested in Utah's Uinta Mountains, it combines revolutionary design with cutting-edge engineering to deliver a sleek and speedy package.

Function Description:

The Ventum GS1 is engineered to provide an optimal riding experience across various terrains, from long gravel descents to technical single tracks. Its primary function is to offer a versatile platform for gravel riding, cyclocross, and even road use, allowing riders to fine-tune its characteristics based on their preferences and the demands of the ride. The bike's design emphasizes stability, predictability, and responsive handling, making it suitable for both endurance rides and more aggressive, technical courses.

Important Technical Specifications:

Frame and Fork: The bike features a robust frame and a Dual-Offset Fork. The fork is a key innovation, offering a 2-position front dropout that allows for a 5mm adjustment in fork offset. This adjustment directly influences the effective steering geometry, enabling riders to customize handling characteristics. The GS1 comes pre-assembled in the "long" position, which provides more deliberate steering and a longer wheelbase for enhanced stability. The "short" position offers quicker, livelier steering, ideal for tight turns or a snappier feel.
Wheel and Tire Compatibility: The Ventum GS1 supports a maximum tire size of 700C x 48mm. Tire clearance can vary based on the internal rim width. The choice of tire size can also influence handling; larger tires (e.g., 48mm) will slow down steering response, which can be offset by using the "short" fork position. Conversely, narrower tires (e.g., 32c) will make steering livelier, potentially benefiting from the "long" fork position.
Brake System: The bike is equipped with disc brakes, featuring brake calipers and rotors. Proper installation of wheels requires ensuring the rotor lines up between the brake pads.
Drivetrain: The GS1 includes a cassette, chain, crank, front derailleur, and rear derailleur. For Shimano GRX Di2 builds, a Di2 cable plugs into the seat post battery.
Components:
- Handlebar: Standard drop handlebar for multiple hand positions.
- Stem: Connects the handlebar to the fork's steerer tube. Torque specifications for stem bolts are 5-6 N.m, depending on the stem make and model.
- Headset Spacers: Used to adjust handlebar height.
- Seat Post and Saddle: The seat post is inserted into the frame, with a minimum insertion depth of 10 cm. It is secured by a seat post clamp bolt (5mm hex), which should be torqued to 6 N.m (up to 8 N.m if necessary). A silver retaining bolt is present but should NOT be adjusted. Carbon paste is not necessary for seat post installation but if used, should only be applied to the back and/or sides, avoiding the front and seat post clamp.
- Thru Axles: Used to secure the wheels to the frame and fork. They require a 6mm hex tool for unscrewing and should be torqued to 10 N.m during re-installation.
- Pedals: Not included, but installation is required as per the manufacturer's instructions.
Tire Pressure: Recommended tire pressure is 25-35 PSI, adjustable based on conditions and equipment.

Usage Features:

Customizable Handling: The Dual-Offset Fork allows riders to adjust the bike's steering geometry. The "long" position provides stable and predictable handling, ideal for long gravel descents and extended rides. The "short" position offers quicker, livelier steering, suitable for technical single tracks, cyclocross, or road riding where snappy response is desired. This feature enables riders to dial in their ride experience based on terrain, tire choice, and personal preference.
Easy Assembly and Maintenance: The manual provides clear, step-by-step instructions for unboxing, wheel installation, and seat post setup, making initial assembly straightforward.
Di2 Compatibility: For Shimano GRX Di2 builds, the bike is designed to integrate electronic shifting, requiring a simple plug-in of the Di2 cable to the seat post battery.
Safety Warnings: The manual emphasizes critical safety warnings, particularly regarding proper torque specifications for the seat post clamp bolt and thru axles, highlighting that failure to follow these instructions could lead to serious injury or death.

Maintenance Features:

Torque Specifications: The manual provides specific torque values for critical components like the seat post clamp (6 N.m), thru axles (10 N.m), and stem bolts (5-6 N.m). Adhering to these specifications is crucial for safety and optimal performance.
Regular Checks: Riders are advised to perform final checks before riding, including pedal installation, tire pressure adjustment, saddle height adjustment, and verification of brake, derailleur, and steering operation.
Fork Offset Adjustment: The Dual-Offset Fork's design allows for relatively simple adjustment of the fork offset. This involves removing the thru-axle, wheel, and brake caliper, unscrewing 2.5mm hex bolts, reversing dropout orientation, adding spacers (if changing to "short" position), and then reassembling. This feature allows for ongoing tuning of the bike's handling characteristics.

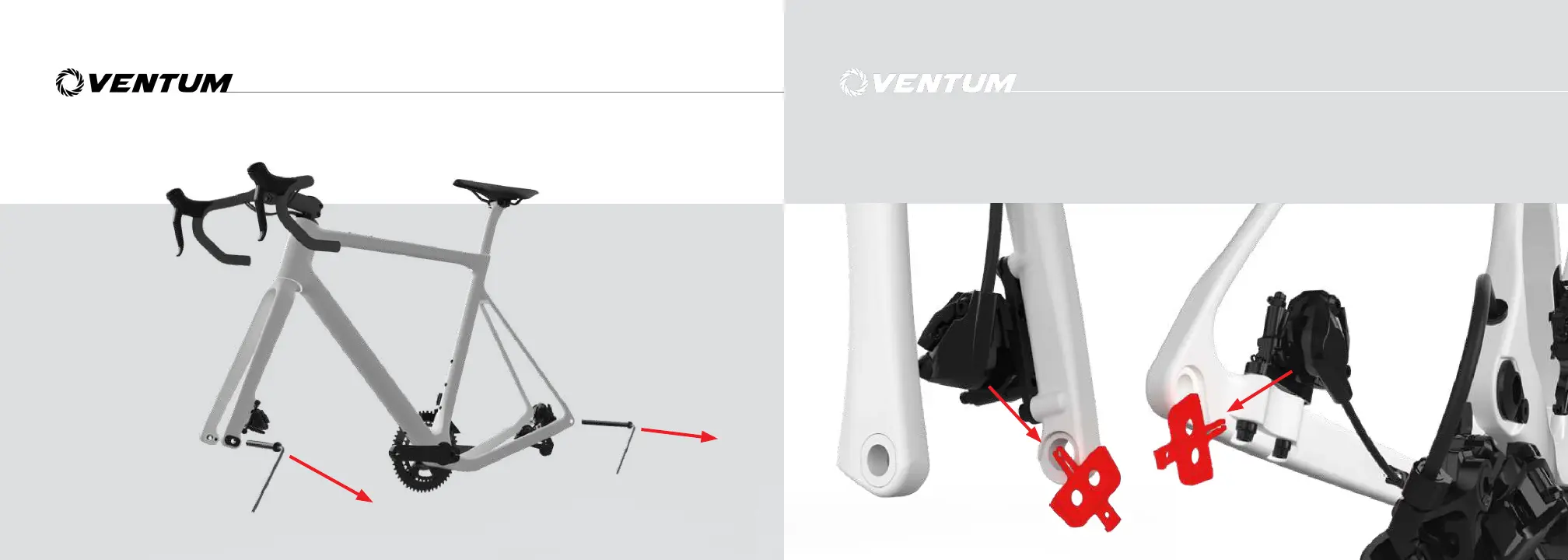

Hub End Caps: A warning is provided to check for hub end caps that may stick to plastic protectors during wheel removal, ensuring they are reinstalled on the hub before discarding protectors.

The Ventum GS1 is more than just a bike; it's a customizable riding platform designed to adapt to the rider's style and the demands of any gravel adventure.
