95.07

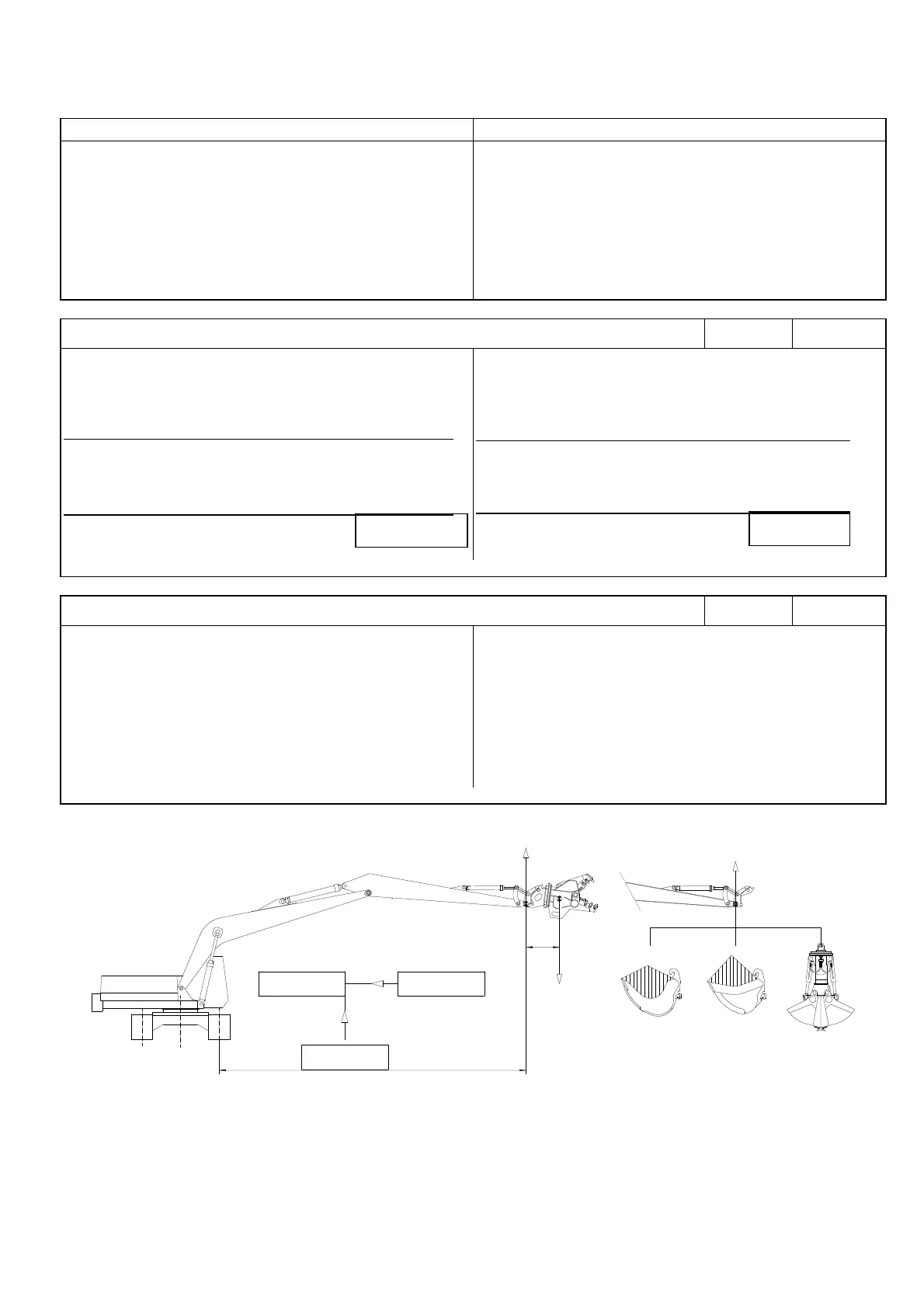

Information sheet
for the calculation of the excavator/attachment combination.
EXCAVATOR: ATTACHMENT:
- make/type : ..............................................................
- model : ..............................................................
...............................................................
(e.g. boom and stick length; subframe type; counterweight; quick-change
system)
- make/type : ...............................................................
- model : ...............................................................
................................................................
STABILITY INSPECTION
compliant
non-compliant
The net lifting capacity of an excavator is determined as follows:
minimum lifting capacity measured at maximum range,
with standard excavator bucket fitted [kg]: ..........
mass of standard excavator bucket [kg]: + .......
(without mounted excavator bucket) [kg]: ..........
mass quick-change sytem (if mounted) [kg]:-/-.......
- net lifting capacity [kg] :
- attachment weight [kg] : ...................
-
maximum working load (s.o.) [kg] : + ...................
- total load of attachment [kg] : ...................
(calculated load = factor F x total load)
- factor F (see below) : x ...................
- calculated load for attachment [kg] :
(LIFTING CAPACITY must be greater than or equal to the CALCULATED LOAD)
CLASSIFICATION INSPECTION
compliant
non-compliant
machine weight in operational readiness (kg) : ...........
break-up force (with bucket cylinder) (kN) : ...........
machine engine power (kW) : ...........
maximum lifting capacity of machine (kg) : ...........
(at minimum range)
maximum permitted for attachment : ..............
maximum permitted for attachment : ..............
maximum permitted for attachment : ..............
maximum permitted for attachment : ..............
(only complete items applicable to the attachment)
R
DF
H
G
H
ABC
D
R [m] = maximum range of the excavator in respect of the tilting point
D [m] = distance between centre of gravity of attachment to the excavator arm of the machine
F = calculation factor determined by R and D (see over). For grab or excavator bucket: F = 1
G [kg] = total load of attachment
H [kg] = net lifting capacity of excavator
