Installing the Nextiva S1800e Series Encoder
This section explains how to install a Nextiva S1800e series encoder on a desktop or flat surface and mount
the encoder in a rack.
NOTE: This equipment must be used in compliance with local laws and regulations.
► To install the Nextiva S1800e series encoder on a flat surface:
1. Remove any debris and dust from the surface as well as the surrounding area.
2. Place the encoder on the flat surface.
3. Ensure that you have access to both the front and rear of the encoder and that the fan airflow is not
blocked.

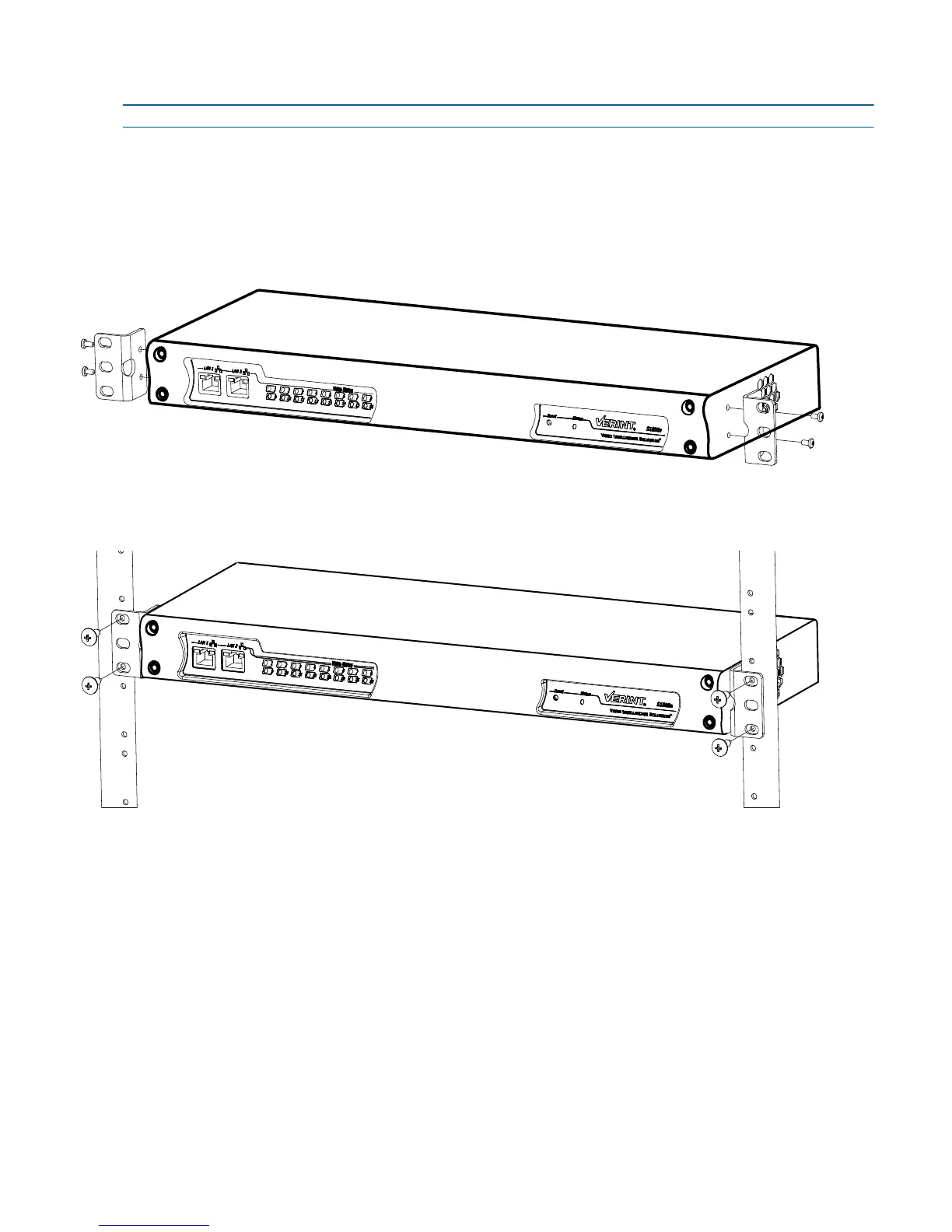

► To install the Nextiva S1800e series encoder on a rack:
1. Align the rack-mount brackets with the holes on the side of the encoder.
2. Screw the rack-mount brackets to the encoder using 5 in-lb (0.56 N-m) force with the provided screws.
3. Slide the encoder into the 1U mounting space in the rack cabinet and ensure that the fan airflow is not
blocked.
4. Secure the encoder to the rack cabinet using the screws supplied with the rack.
