VERITAS NetBackup 5230 Hardware Service Procedure

Note: Do not mix disk drive sizes. Replacement drives need to match the size of the drives they are
replacing.
For NetBackup 5230 Appliance, only replace 1TB drives with 1TB drives and 3TB drives with 3TB

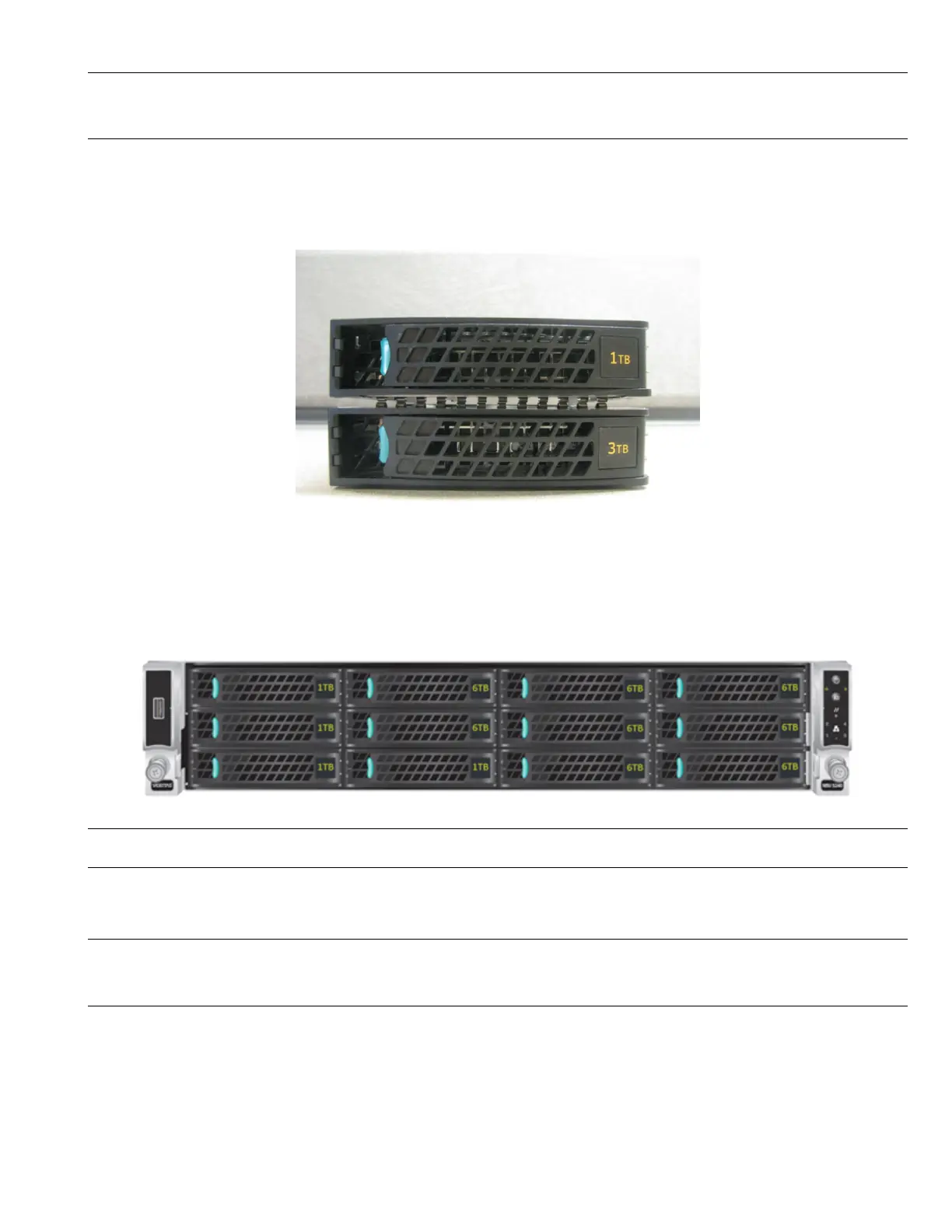

drives. If a drive does not have a label, it is 1TB in size. The picture below shows how the drives are
labeled.
For NetBackup 5240 Appliance, only replace 1TB drives with 1TB drives, 3TB drives with 3TB drives,
and 6TB drives with 6TB drives. If a drive does not have a label, it is 1TB in size. The picture below
shows how the drives are labeled.
Note: The operating system drives in slots 0 and 1 can only be 1TB size.
This repair can be accomplished with the appliance installed in the rack.
Note: If the appliance has attached storage shelves, these do not need to be turned off while the
appliance is being serviced.
Requirements
• NetBackup 5230 Appliance replacement 1-TB or 3-TB hard disk drive
or
• NetBackup 5240 Appliance replacement 1-TB, 3-TB, or 6-TB hard disk drive
4
HSP 108 Storage Disk Drive Replacement: NetBackup 5230, 5240 Appliances
