Assembly Instructions
1. Locate the pocket set with straight pockets on your wheel. Make sure to refer to the Upgrade
Assembly Diagram found on page 7 for the next 28 steps.
2. Remove one set of straight pockets (Notice you will be leaving this area blank).
3. Proceed to the pocket set below the removed pocket set in step 2. This should be an angle
pocket set.
4. Remove the one set of angle pockets (Notice you will be replacing this pocket set with an angle
pocket set).
5. Clean both sides where the pockets contact the wheel, with a wire brush. Be sure to remove
all dirt and debris so the pocket is seated tightly against the wheel.
6. Apply Green-Seize™ to the threaded end of two LoPro™ bolts.
7. Starting with the angle pocket install a LoPro™ bolt into the
counter-bored hole and then do the same of adjacent pocket
of that set.
8. Slide the LoPro™ bolts through the empty holes in the wheel
and thread them into the adjacent pocket’s threaded holes.
For now, firm up the LoPro™ bolts until pockets are seated.

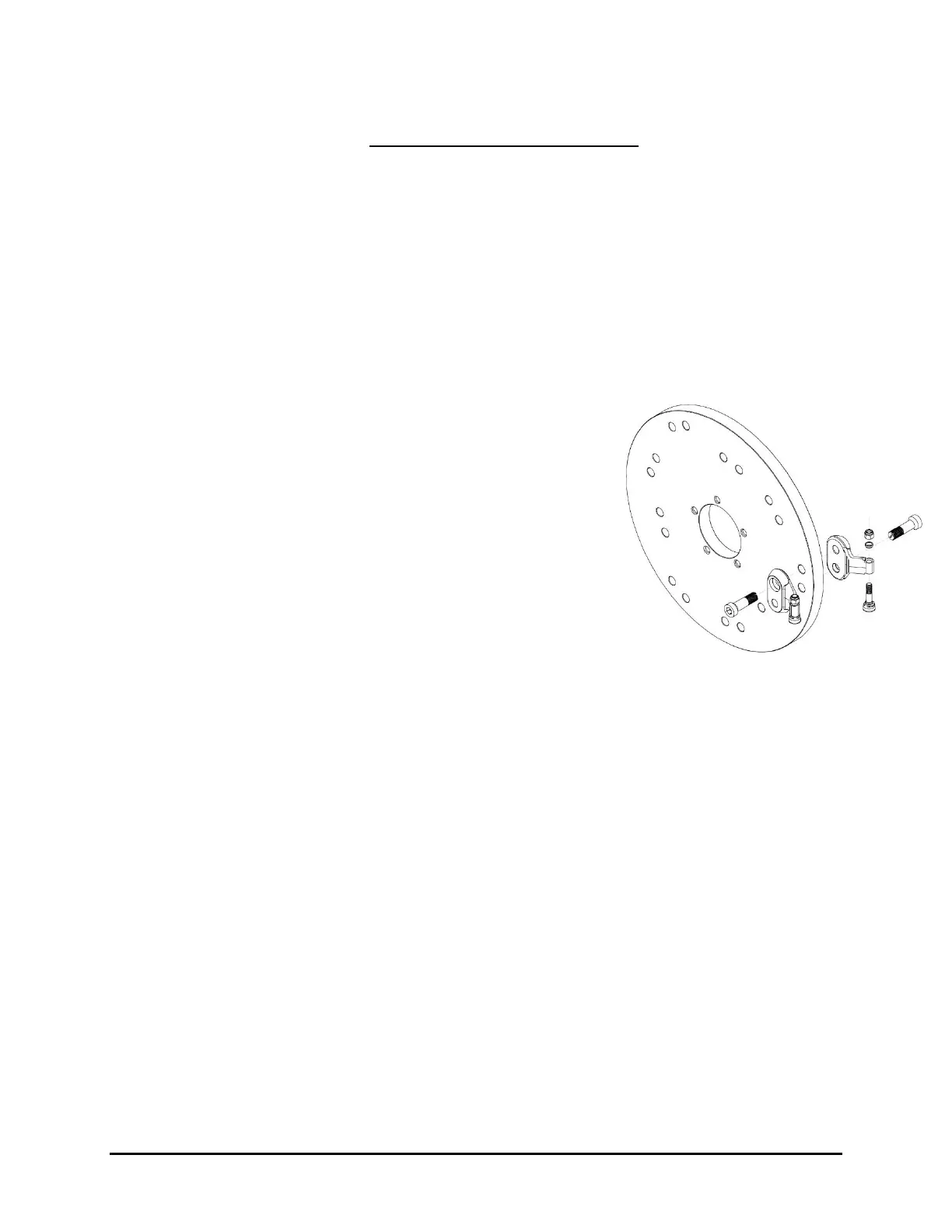

(Figure 1.1)
9. Proceed to the pocket set below the new pocket set installed
in step 8. This should be an angle pocket set.
10. Remove the one set of angle pockets (Notice you will be
leaving this area blank).
11. Proceed to the pocket set below the removed pocket set in step 10. This should be an angle
pocket set.
12. Remove the one set of angle pockets (Notice you will be replacing this pocket set with an angle
pocket set).
13. Clean both sides where the pockets contact the wheel, with a wire brush. Be sure to remove
all dirt and debris so the pocket is seated tightly against the wheel.
14. Apply Green-Seize™ to the threaded end of two LoPro™ bolts.
15. Starting with the angle pocket install a LoPro™ bolt into the counter-bored hole and then do
the same of adjacent pocket of that set.
16. Slide the LoPro™ bolts through the empty holes in the wheel and thread them into the
adjacent pocket’s threaded holes. For now, firm up the LoPro™ bolts until pockets are seated.
(Figure 1.1)
17. Proceed to the pocket set below the new pocket set installed in step 16. This should be a
straight pocket set.
