1. Insert the stop (5) and screw (6) in the top or lower hole according to the desired height of the
side rails.
2. Loosen the locknuts (4), if necessary.
3. Insert the bolt rails (1) on the right and left in the upper wood slat (2). Insert the bolt rails (1)
right and left in the lower wood slat (2).
4. Slide the entire bolt rails (1) + wooden slats (2) in the relevant sliding rail (3) from the head
and foot panel. Grasp the upper wooden slat and pull upwards until the wooden side rails lock
in position.
5. Insert the locknuts (4) and tighten them manually.
6. Repeat these steps for the other side.
For Luna UL 2
1. Loosen the locknuts (4), if necessary.
2. Insert the bolt rails (1) on the right and left in the upper wood slat (2). Insert the bolt rails (1)
right and left in the lower wood slat (2).
3. Slide the entire bolt rails (1) + wooden slats (2) in the relevant sliding rail (3) from the head
and foot panel. Grasp the upper wooden slat upwards until the wooden side rail locks in
position.
4. Insert the locknuts (4) and tighten them manually.
5. Repeat these steps for the other side.

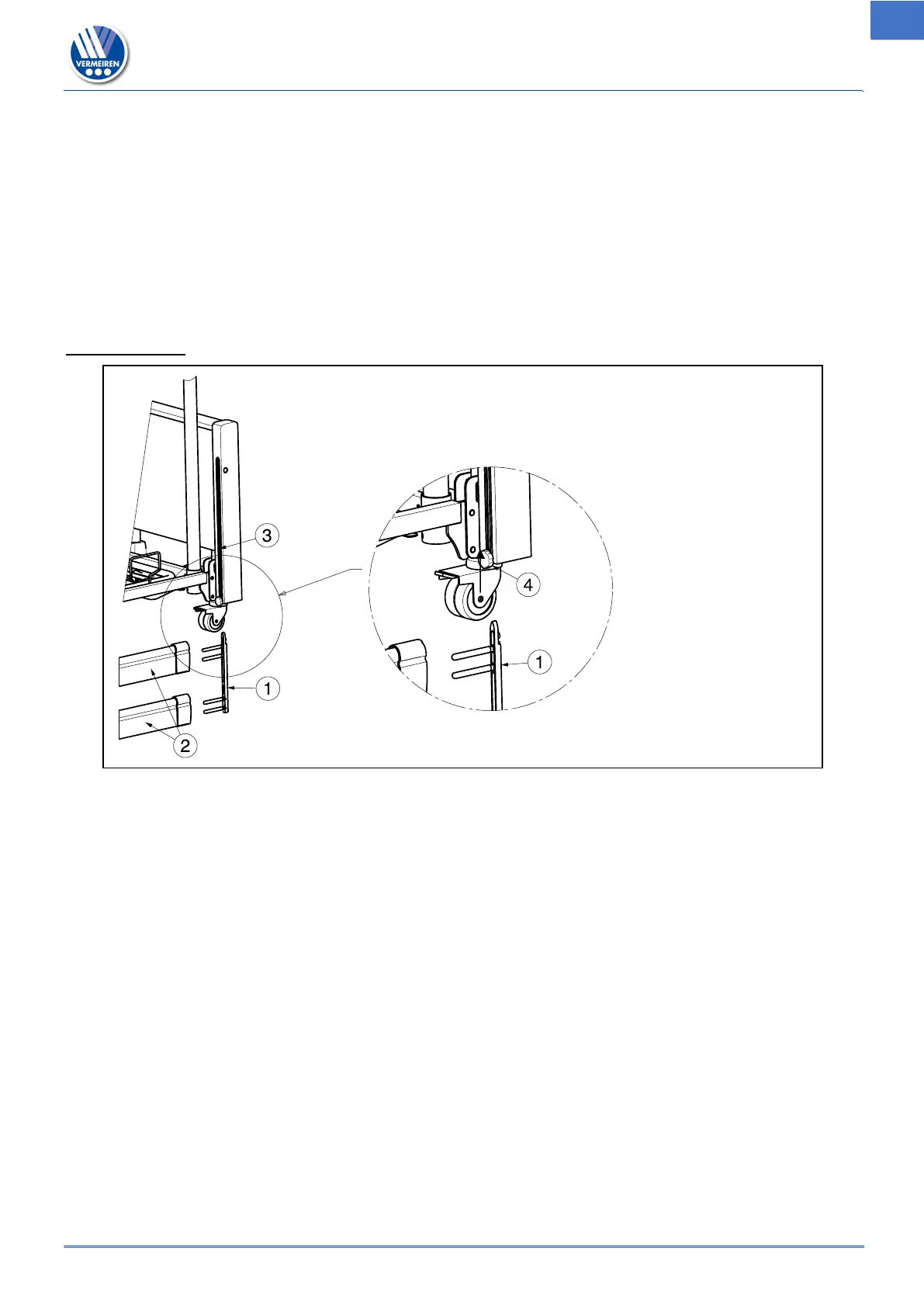

1 = Bolt rails
2 = Wood slats (2 pieces each side)
3 = Sliding rail
4 = Locknut
