- Page 10 -

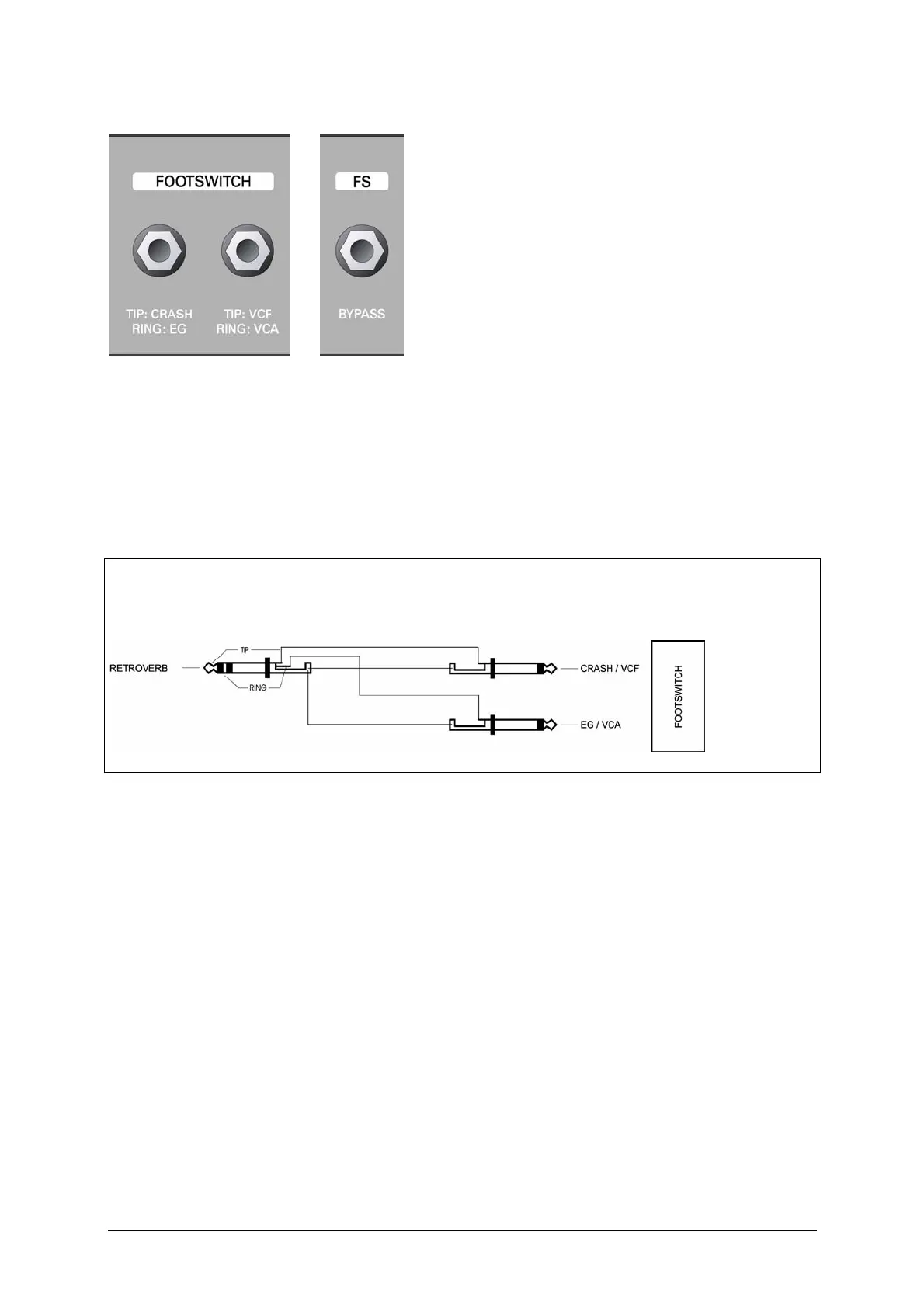

Footswitch Inputs
It’s possible to connect footswitches to these jacks.
CRASH and EG
The CRASH function and the ENVELOPE can be triggered
with a connected footswitch.
VCF and VCA
The functions VCF ON and VCA ON, which have an own switch on the front panel, can be (de)activated with a
connected footswitch. As soon as a plug is connected to these jacks, the switches on the front panel do not work
anymore.
For connecting a footswitch for the CRASH, EG, VCA ON and VCF on, you have to use stereo TRS plugs as
shown below:
BYPASS
You can connect a footswitch for doubling the BYPASS function.
CRASH
Simply try it out!
