- Page 8 -
An internal Clock
The REPEAT switch activates an internal clock whose speed can be set with the SPEED controller. The envelope
will then be retriggered.
The REPEAT LED shows the speed of the clock, in deactivated (light brightness) and activated mode (dark
brightness).
As soon as the REPEAT function is activated, the envelope does not react to any other trigger signal.
Note: If the speed of the Clock is faster than the envelopes ATTACK- and DECAY times, the envelope will be cut.

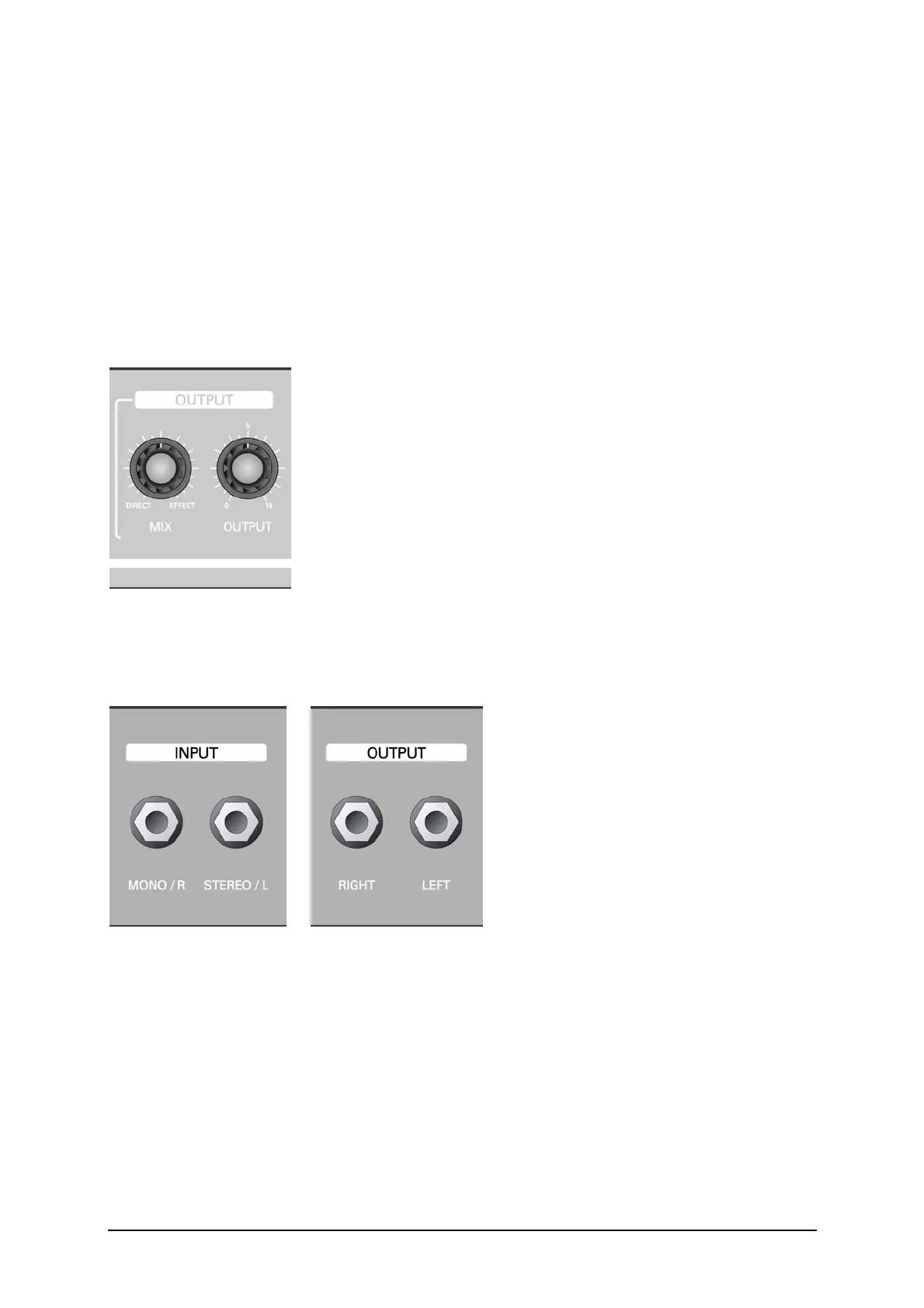

Output
The MIX controller sets the proportion between the direct and effected signal. If
the controller is set to DIRECT, only the unrefined original signal can be heard on
the Retroverbs outputs. If that is the case, the CRASH function has no effect.
OUTPUT sets the output level.
In- and Outputs
INPUT
The Retroverb can be fed with mono- as well as stereo signals. Stereo signals will be converted to a mono signal
internally.
The MONO/R jack works with mono signals, STEREO / L is a stereo jack.
