Vermont Castings SDVR Series User Manual

11
Pinnacle & Stardance Direct Vent - Rear Vent Gas Heaters
20007066
Outside Corner
Inside Corner

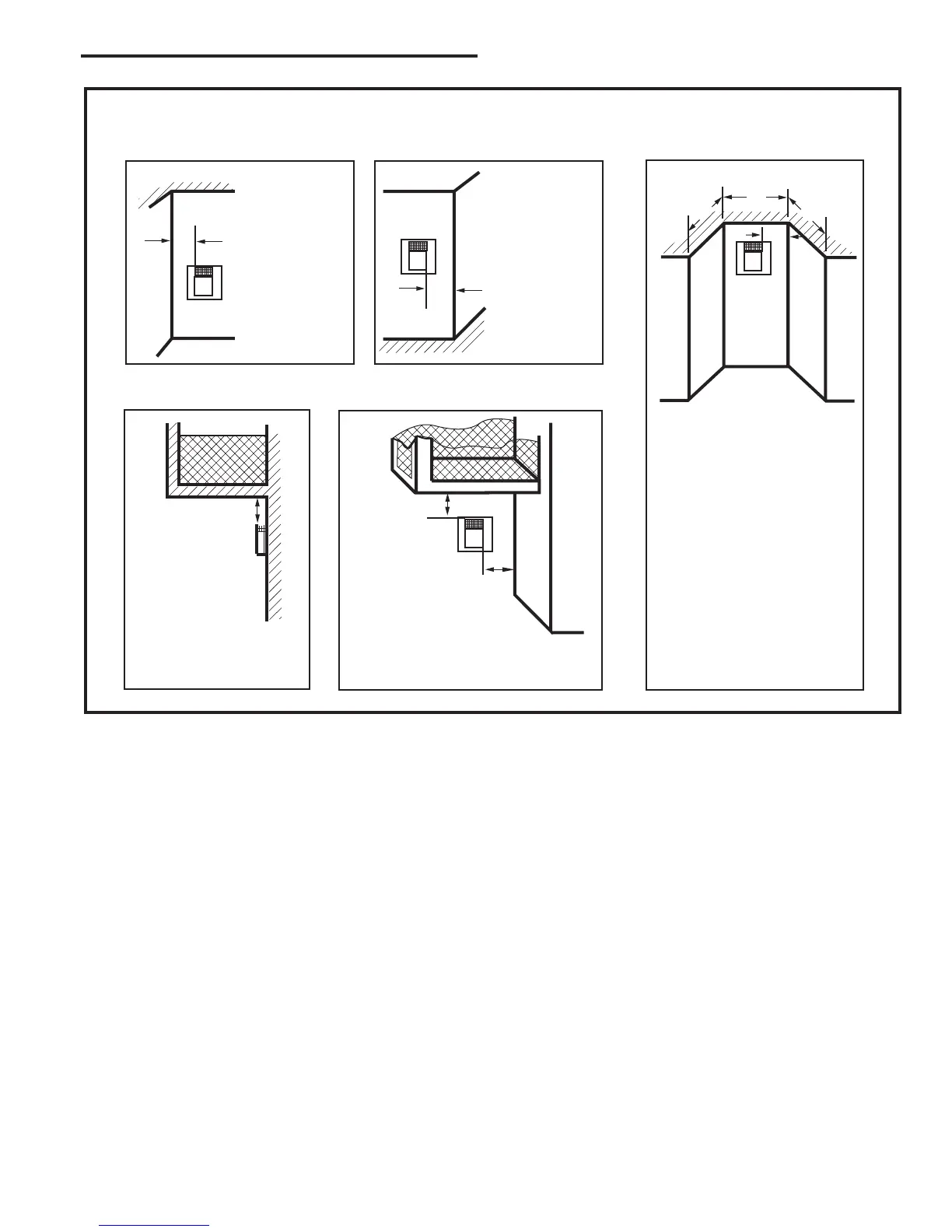

Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
A
Balcony - 
with no side wall
G = 
Combustible &
Noncombustible
12"(305mm)
G
Balcony - 
with perpendicular side wall
H = 24"(610mm)

J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
C
D
C
E
V
V
Combustible &

Noncombustible


V
V
V
Fig. 10 Termination clearances.
584-15
