Interface Numbering

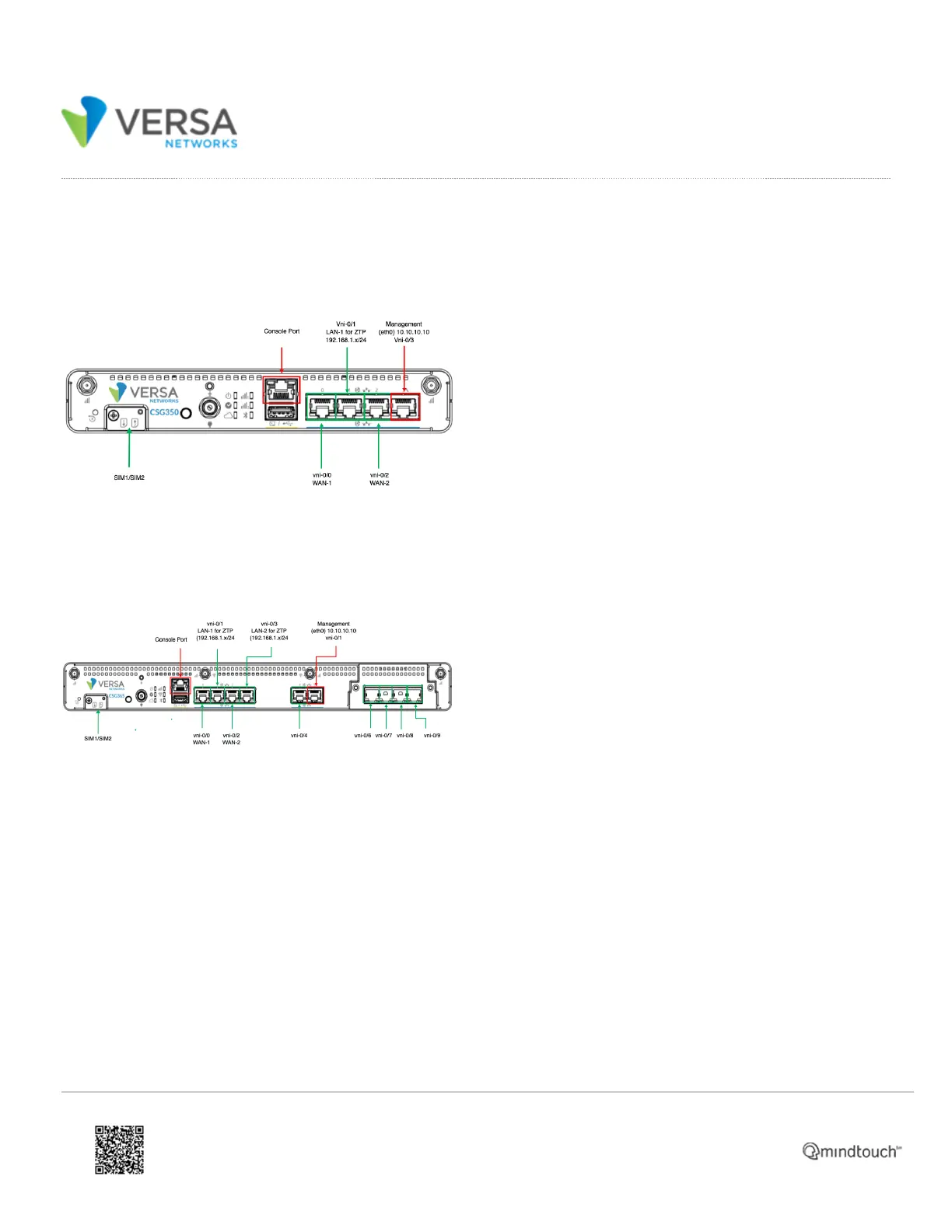

Figure 1 shows mapping of the Ethernet ports to Virtual Network Interface (VNI) numbering for the CSG350.
Figure 1: Port-to-VNI Mapping - CSG350
Figure 2 shows port-to-VNI mapping for the CSG355 and CSG365. Note that the CSG355 and CSG365 chassis are
identical.
Figure 2: Port-to-VNI Mapping - CSG355 and CSG365
