VERSARE MP10 - Center Panel Assembly; Final Outside Panel

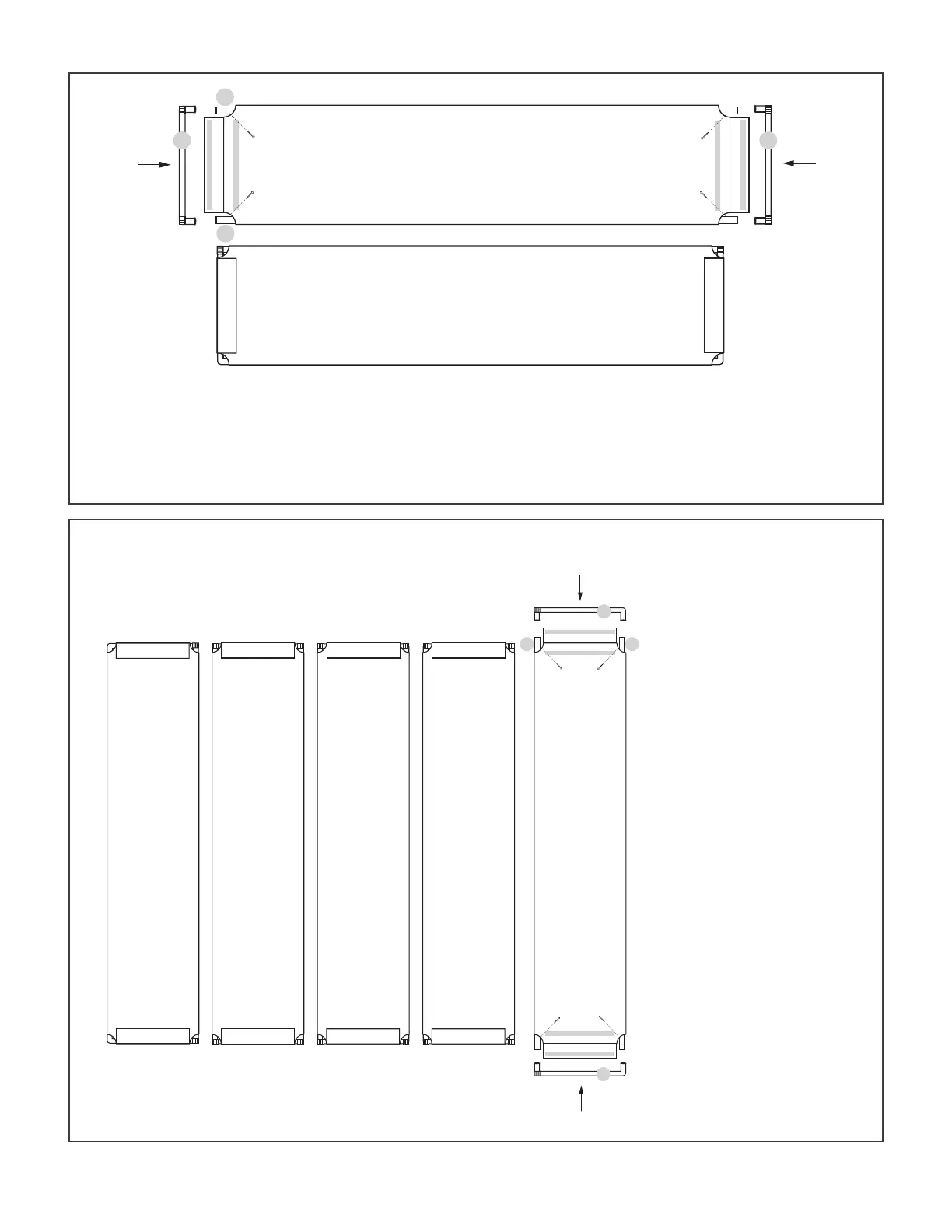

Layout fi nal plain
canvas panel, Velcro
closure facing up. (2
panels with Velcro tabs
are still set aside for
end panels). Insert 2
part D, one for each
side. Connect the panel
frame posts with the
two remaining part A,
facing the two plain
ends opposite the end
assembled in Step 2.
Use 4 more Screws on
the inside of corners to
secure the frame. Seal
Velcro fl aps. Layout
panels in order of
assembly as pictured for
step 5.
A
A
DD
Center Panel
Outside Panel
Outside Panel
Center Panel
Center Panel
4.
Next, lay out second plain canvas panel, Velcro closure facing up. Again insert 2 part D, one
for each side. Connect the panel frame posts with 2 part C and use 4 Screws on the inside of
corners to secure the frame. Pull ends taut and seal Velcro fl aps to fi nish your center panel.
If you have a 7-panel MP10 repeat this step two more times so you have a total of 3 center
panels.
C C
D
D
Outside Panel
Center Panel
3.
Final Outside Panel
2
