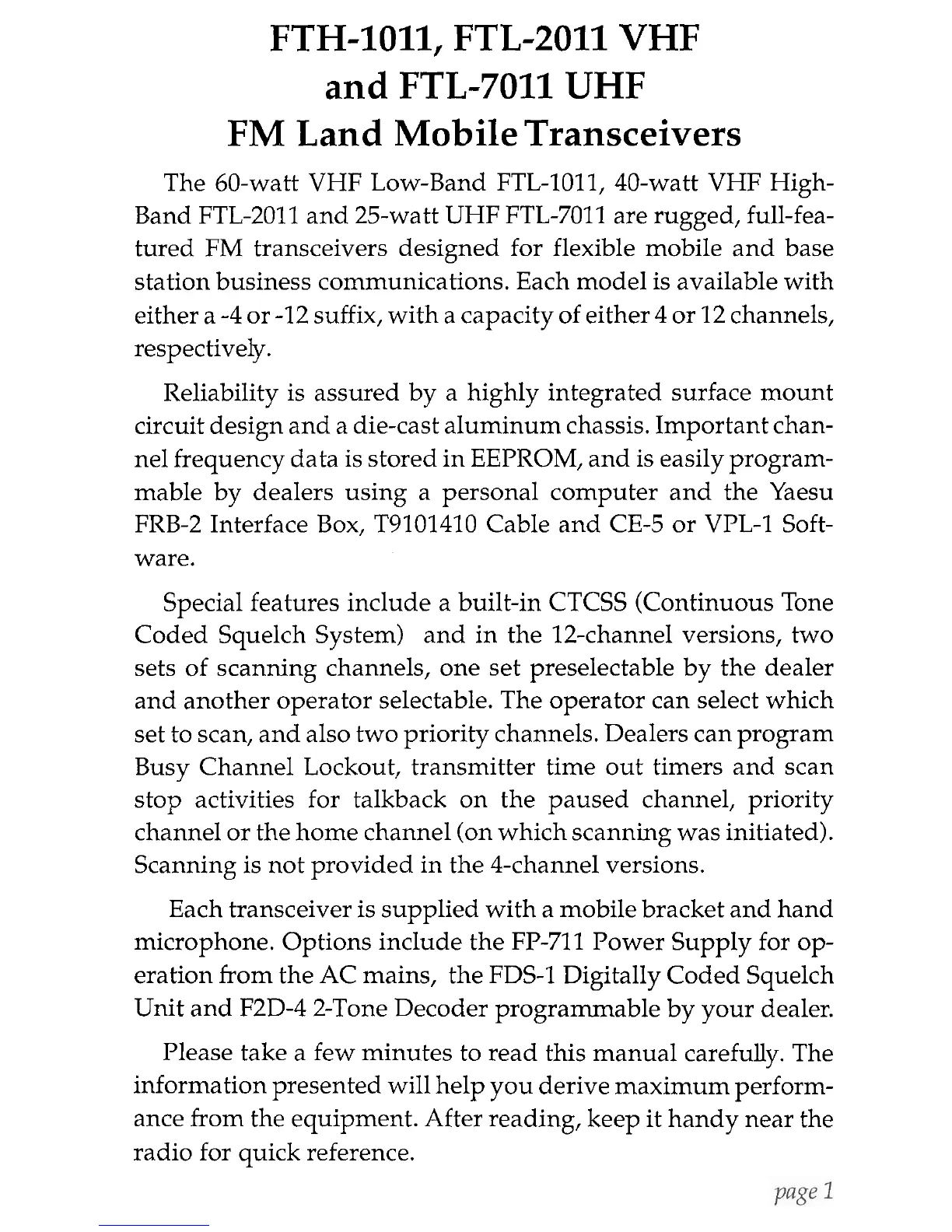

FTH-1011, FTL-2011 VHF
and FTL-7011 UHF
FM Land Mobile Transceivers
The 60-watt VHF Low-Band FTL-1011, 40-watt VHF High-
Band FTL-2011 and 25-watt UHF FTL-7011 are rugged, full-fea-
tured FM transceivers designed for flexible mobile and base
station business communications. Each model is available with
either a
-4
or -12 suffix, with a capacity of either 4 or 12 channels,
respectively
.
Reliability is assured by a highly integrated surface mount
circuit design and a die-cast aluminum chassis. Important chan-
nel frequency data is stored in EEPROM, and is easily program-
mable by dealers using a personal computer and the Yaesu
FRB-2 Interface Box,
T9101410 Cable and CE-5 or VPL-1 Soft-
ware.
Special features include a built-in CTCSS (Continuous Tone
Coded Squelch System) and in the 12-channel versions, two
sets of scanning channels, one set preselectable by the dealer
and another operator selectable. The operator can select which
set to scan, and also two priority channels. Dealers can program
Busy Channel Lockout, transmitter time out timers and scan
stop activities for
talkback on the paused channel, priority
channel or the home channel (on which scanning was initiated).
Scanning is not provided in the 4-channel versions.
Each transceiver is supplied with a mobile bracket and hand
microphone. Options include the FP-711 Power Supply for op-
eration from the AC mains, the FDS-1 Digitally Coded Squelch
Unit and F2D-4 2-Tone Decoder programmable by your dealer.
Please take a few minutes to read this manual carefully. The
information presented will help you derive maximum perform-
ance from the equipment. After reading, keep it handy near the
radio for quick reference.
