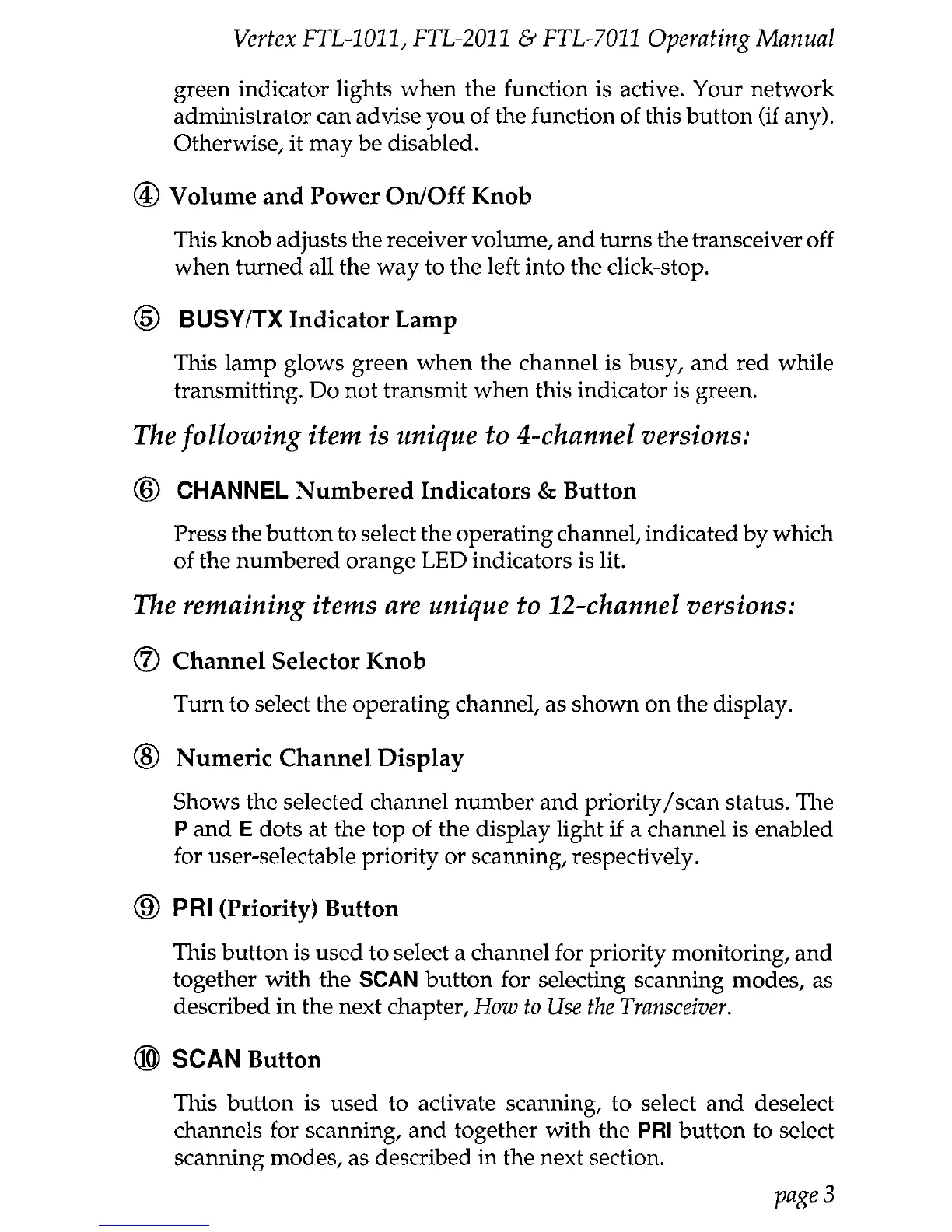

Vertex FTL-1011, FTL-2011 & FTL-7011 Operating Manual
green indicator lights when the function is active. Your network
administrator can advise you of the function of this button (if any).
Otherwise, it may be disabled.
@ Volume and Power OnfOff Knob
This knob adjusts the receiver volume, and turns the transceiver off
when turned all the way to the left into the click-stop.
@ BUSYITX Indicator Lamp
This lamp glows green when the channel is busy, and red while
transmitting. Do not transmit when this indicator is green.
The following item is unique to 4-channel versions:
@ CHANNEL Numbered Indicators & Button
Press the button to select the operating channel, indicated by which
of the numbered orange LED indicators is lit.
The remaining items are unique to 12-channel versions:
@ Channel Selector Knob
Turn to select the operating channel, as shown on the display.
@ Numeric Channel Display
Shows the selected channel number and priority/scan status. The
P and E dots at the top of the display light if a channel is enabled
for user-selectable priority or scanning, respectively.
@ PRI (Priority) Button
This button is used to select a channel for priority monitoring, and
together with the
SCAN button for selecting scanning modes, as
described in the next chapter,
How to Use the Transceiver.
@ SCAN Button
This button is used to activate scanning, to select and deselect
channels for scanning, and together with the
PRI button to select
scanning modes, as described in the next section.
Page 3
