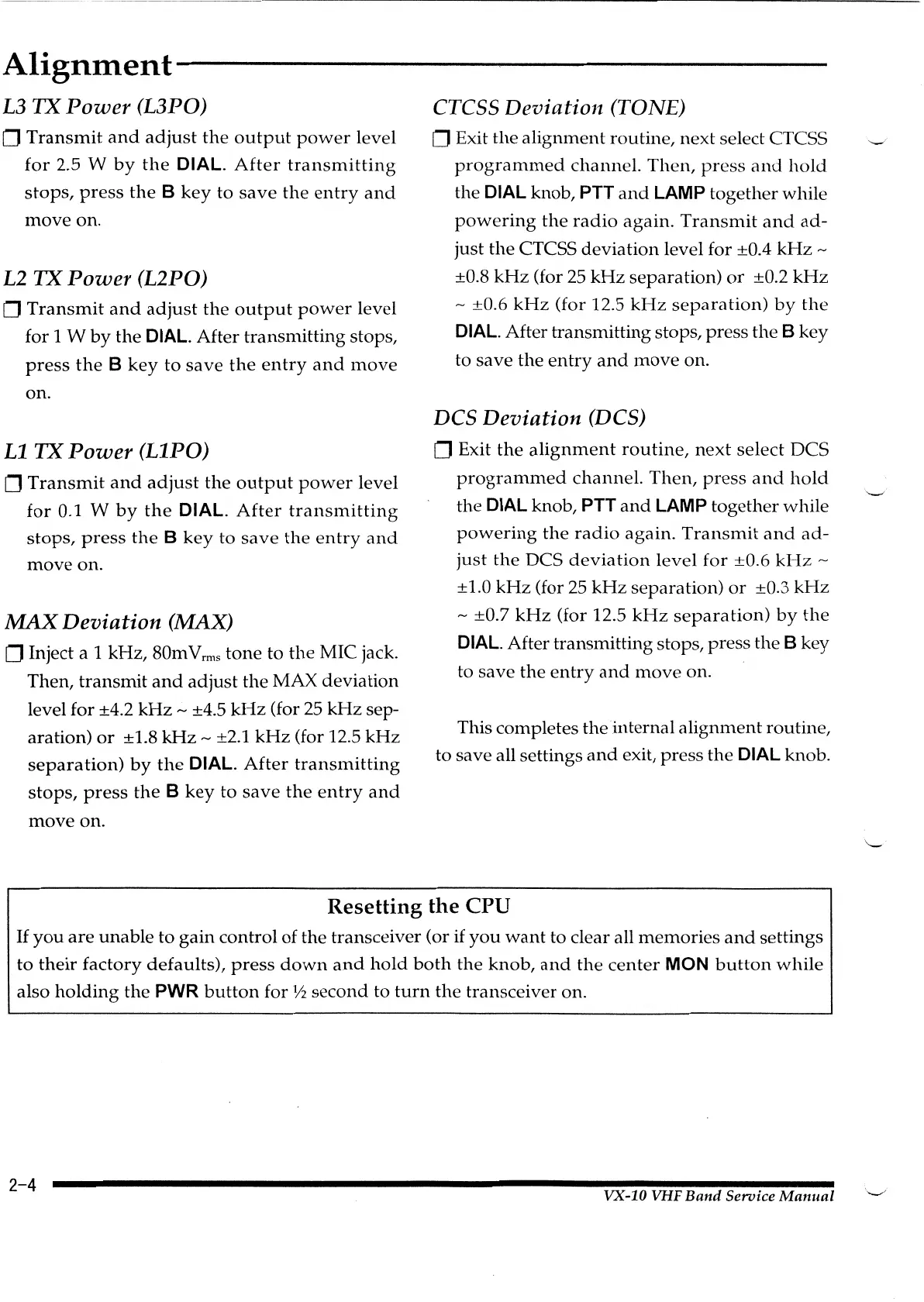

Alignrnent-------------------------------------

L3

TX

Power

(L3PO)

0

Transmit

and

adjust

the

output

power

level

for

2.5 W

by

the

DIAL.

After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

L2

TX

Power

(L2PO)

0

Transmit

and

adjust

the

output

power

level

for 1

W

by

the

DIAL. After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

L1

TX

Power

(L1PO)

0

Transmit

and

adjust

the

output

power

level

for

0.1 W

by

the

DIAL.

After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

MAX

Deviation

(MAX)

0 Inject a 1

kHz,

80m

Vrms

tone

to

the

MIC

jack.

Then,

transmit

and

adjust

the

MAX

deviation

level for ±4.2

kHz

~

±4.5

kHz

(for 25

kHz

sep-

aration)

or

±1.8

kHz~

±2.1

kHz

(for 12.5

kHz

separation)

by

the

DIAL.

After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

CTCSS

Deviation

(TONE)

0 Exit

the

alignment

routine,

next

select CTCSS

programmed

channel.

Then,

press

and

hold

the

DIAL knob, PTT

and

LAMP

together

while

powering

the

radio

again.

Transmit

and

ad-

just

the

CTCSS

deviation

level for ±0.4

kHz~

±0.8

kHz

(for 25

kHz

separation)

or

±0.2

kHz

~

±0.6

kHz

(for 12.5

kHz

separation)

by

the

DIAL. After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

DCS

Deviation

(DCS)

0 Exit

the

alignment

routine,

next

select

DCS

programmed

channel.

Then,

press

and

hold

the

DIAL knob, PTT

and

LAMP

together

while

powering

the

radio

again.

Transmit

and

ad-

just

the

DCS

deviation

level

for

±0.6

kHz~

±1.0

kHz

(for

25kHz

separation)

or

±0.3

kHz

~

±0.7

kHz

(for 12.5

kHz

separation)

by

the

DIAL. After

transmitting

stops,

press

the

B

key

to

save

the

entry

and

move

on.

This

completes

the

internal

alignment

routine,

to

save

all settings

and

exit,

press

the

DIAL knob.

Resetting

the

CPU

If

you

are

unable

to

gain

control

of

the

transceiver

(or if

you

want

to clear all

memories

and

settings

to

their

factory

defaults),

press

down

and

hold

both

the

knob,

and

the

center

MON

button

while

also

holding

the

PWR

button

for

Y2

second

to

turn

the

transceiver

on.

2-4

VX-10

VHF

Band

Service

Manual

'--

~
