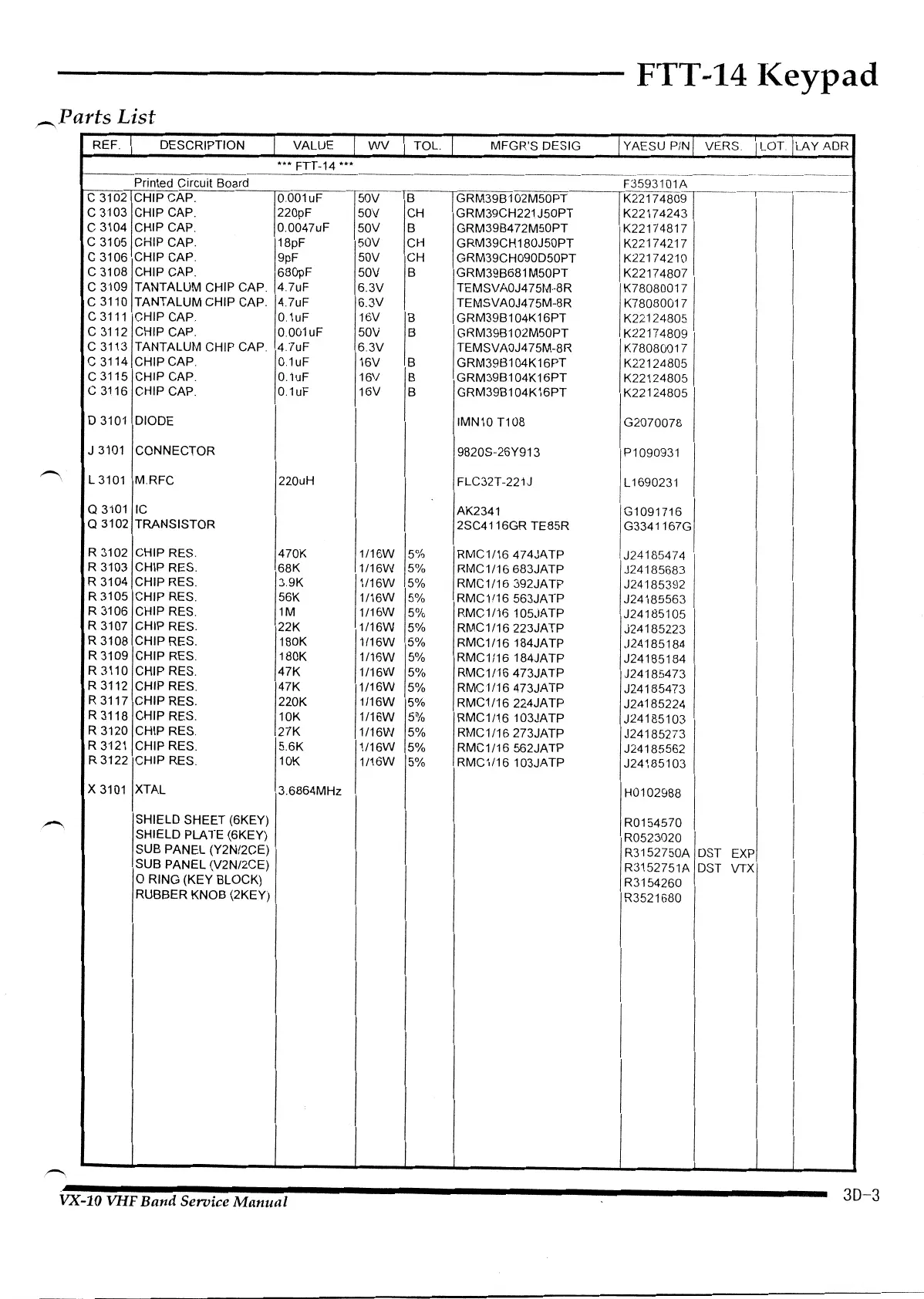

FTT-14
Keypad
~Parts
List
REF.
DESCRIPTION VALUE
wv
TOL. MFGR'S DESIG YAESU PiN
VERS. LOT. LAY
ADR
*** FTT-14 ***
------
Printed Circuit Board
F3593101A
c 3102 CHIP CAP. 0.001uF
50V B GRM39B 1 02M50PT
K22174809
c 3103
CHIP CAP.
220pF
50V CH
GRM39CH221
J50PT
K22174243
c 3104 CHIP CAP. 0.0047uF
50V B
GRM39B4 72M50PT
K22174817
c 3105 CHIP CAP.
18pF 50V CH
GRM39CH 180J50PT
K22174217
c 3106 CHIP CAP.
9pF 50V
CH GRM39CH090D50PT
K22174210
c 3108 CHIP CAP.
680pF
50V B
GRM39B681 M50PT
K22174807
c 3109 TANTALUM CHIP CAP. 4.7uF
6.3V
TEMSV
AOJ4 75M-8R
K78080017
c 3110 TANTALUM CHIP CAP.
4.7uF 6.3V
TEMSVAOJ475M-8R K78080017
c 3111 CHIP CAP.
0.1uF
16V B
GRM39B104K16PT
K22124805
c 3112 CHIP CAP.
0.001uF
50V B
GRM39B1 02M50PT
K22174809
c 3113 TANTALUM CHIP CAP.
4.7uF 6.3V
TEMSVAOJ475M-8R
K78080017
c 3114 CHIP CAP.
0.1uF
16V
B
GRM39B 1 04K 16PT
K22124805
c 3115 CHIP CAP.
0.1uF
16V B
GRM39B104K16PT
K22124805
c 3116 CHIP CAP.
0.1uF 16V
B
GRM39B104K16PT
K22124805
D 3101
DIODE
IMN10 T108
G2070078
J 3101
CONNECTOR
9820S-26Y913
P1090931
~
L 3101 M.RFC
220uH
FLC32T-221 J
L1690231
Q 3101
IC
AK2341
G1091716
Q 3102
TRANSISTOR
2SC4116GR TE85R
G3341167G
R 3102 CHIP RES.
470K
1/16W
5% RMC1/16 474JATP
J24185474
R 3103 CHIP RES.
68K
1/16W
5%
RMC1/16 683JATP
J24185683
R 3104
CHIP RES.
3.9K
1/16W
5%
RMC1/16 392JATP
J24185392
R 3105
CHIP RES.
56K 1/16W
5%
RMC1/16 563JATP
J24185563
R 3106 CHIP RES.
1M
1/16W
5%
RMC1/16 105JATP
J24185105
R 3107
CHIP RES.
22K
1/16W
5%
RMC1/16 223JATP
J24185223
R 3108
CHIP RES.
180K
1/16W
5%
RMC1/16 184JATP
J24185184
R 3109
CHIP RES.
180K
1/16W
5%
RMC1/16 184JATP
J24185184
R 3110
CHIP RES.
47K
1/16W
5%
RMC1/16 473JATP
J24185473
R 3112
CHIP
RES.
47K
1/16W
5%
RMC1/16 473JATP
J24185473
R 3117
CHIP RES.
220K 1/16W
5%
RMC1/16 224JATP
J24185224
R 3118
CHIP RES.
10K
1/16W
5%
RMC 1/16 1 03JATP
J24185103
R 3120
CHIP RES.
27K
1/16W
5%
RMC1/16 273JATP
J24185273
R 3121
CHIP RES.
5.6K
1/16W
5%
RMC1/16 562JATP
J24185562
R 3122
CHIP RES.
10K
1/16W
5%
RMC1/16 103JATP
J24185103
X 3101 XTAL
3.6864MHz
H0102988
SHIELD
SHEET
{6KEY)
R0154570
SHIELD PLATE {6KEY)
R0523020
.~
SUB PANEL {Y2N/2CE)
R3152750A
DST EXP
SUB
PANEL
{V2N/2CE)
R3152751A
DST VTX
0 RING {KEY BLOCK)
R3154260
RUBBER KNOB {2KEY)
R3521680
~
