Vertex VX-10 Service Manual

FTT-14 Keypad

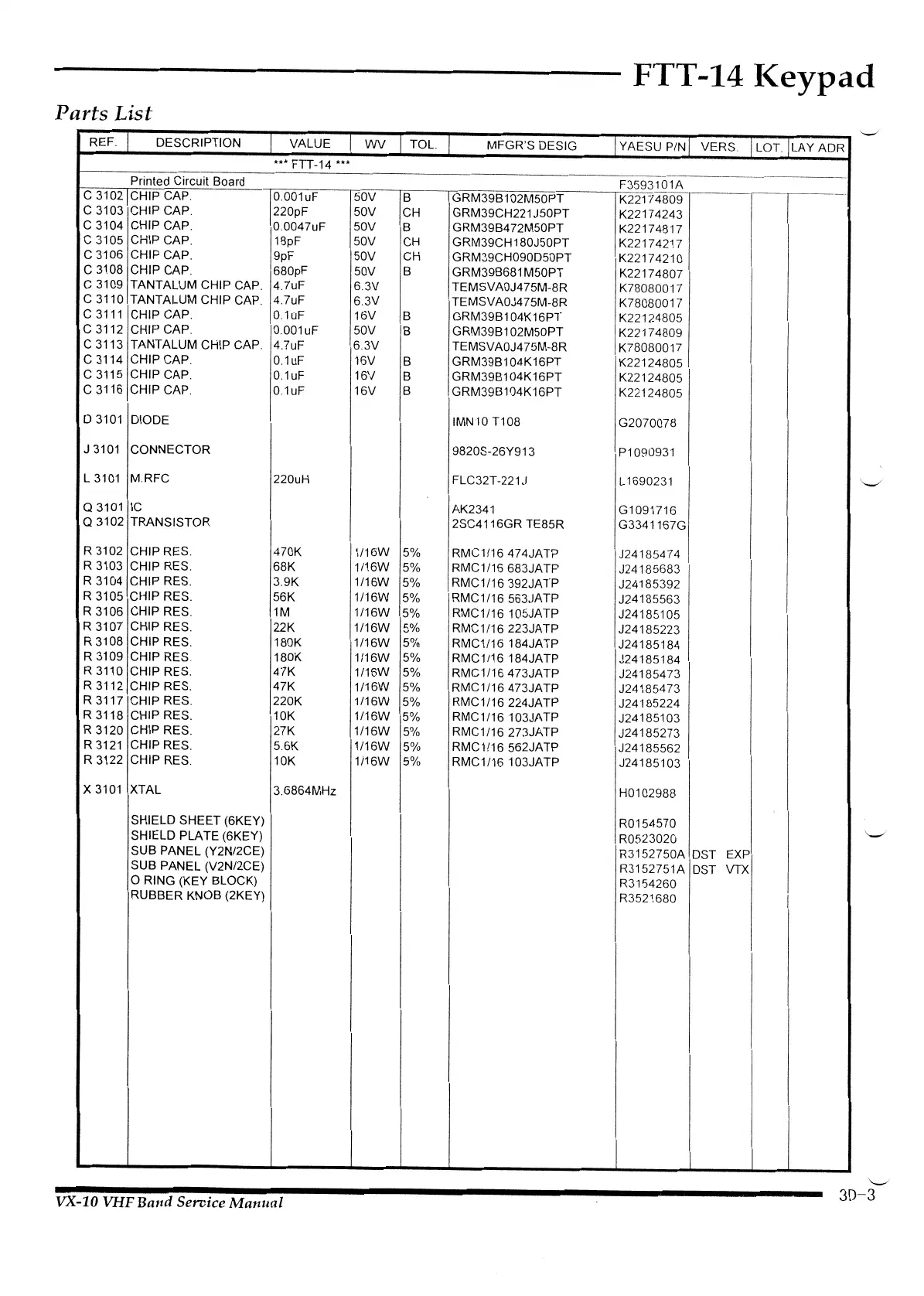

Parts List
REF. I
DESCRIPTION
VALUE
wv
TOL.
MFGR'S DESIG
YAESU
PIN[ VERS.
LOT.
I LAy ADR
'-'
••• FIT-14 ***
Printed Circuit Board
F3593101A
c 3102
CHIP CAP.
0.001 uF
50V
B
GRM39B 1 02M50PT
K22174809
c 3103 CHIP CAP.
220pF
50V
CH
GRM39CH221
J50PT
K22174243
c 3104 CHIP CAP.
0.0047uF
50V
B
GRM39B4 72M50PT
K22174817
c 3105
CHIP CAP.
18pF
50V
CH
GRM39CH 180J50PT
K22174217
c 3106
CHIP CAP.
9pF
50V
CH
GRM39CH090D50PT
K22174210
c 3108
CHIP CAP.
680pF
50V
B
GRM39B681 M50PT
K22174807
c 3109
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ4 75M-8R
K78080017
c 3110
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ4 75M-8R
K78080017
c 3111
CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
c 3112
CHIP CAP.
0.001 uF
50V
B
GRM39B 1 02M50PT
K22174809
c 3113 TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ475M-8R
K78080017
c 3114 CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
c 3115
CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
c 3116
CHIP CAP.
0.1uF
16V
B
GRM39B 1 04K 16PT
K22124805
D 3101
DIODE
IMN10 T108
G2070078
J 3101
CONNECTOR
9820S-26Y913
P1090931
L 3101
M.RFC
220uH
FLC32T-221J
L1690231
'---"
Q 3101 IC
AK2341
G1091716
Q
3102
TRANSISTOR
2SC4116GR TE85R
G3341167G
R
3102
CHIP RES.
470K
1/16W
5%
RMC1/16 474JATP
J24185474
R
3103
CHIP RES.
68K
1/16W
5%
RMC1/16 683JATP
J24185683
R
3104
CHIP RES.
3.9K 1/16W
5%
RMC1/16 392JATP
J24185392
R
3105
CHIP RES.
56K 1/16W
5%
RMC1/16 563JATP
J24185563
R
3106 CHIP RES.
1M
1/16W
5%
RMC1/16
105JATP
J24185105
R 3107 CHIP RES.
22K
1/16W
5%
RMC1/16 223JATP
J24185223
R
3108
CHIP RES.
180K
1/16W
5%
RMC1/16 184JATP
J24185184
R
3109 CHIP RES.
180K
1/16W
5% RMC1/16 184JATP
J24185184
R
3110
CHIP RES.
47K
1/16W
5%
RMC1/16 473JATP
J24185473
R 3112
CHIP RES.
47K
1/16W
5% RMC1/16 473JATP
J24185473
R 3117
CHIP RES.
220K 1/16W
5%
RMC 1/16 224JATP
J24185224
R 3118
CHIP RES.
10K
1/16W
5%
RMC1/16
103JATP
J24185103
R 3120 CHIP RES.
27K
1/16W
5%
RMC1/16 273JATP
J24185273
R 3121
CHIP RES.
5.6K
1/16W
5%
RMC1/16 562JATP
J24185562
R 3122
CHIP RES.
10K
1/16W
5%
RMC1/16 103JATP
J24185103
X
3101 XTAL
3.6864MHz
H0102988
SHIELD
SHEET (6KEY)
R0154570
SHIELD PLATE (6KEY)
R0523020
'-""
SUB PANEL (Y2N/2CE)
R3152750A
DST EXP
SUB
PANEL (V2N/2CE)
R3152751A
DST VTX
0 RING (KEY BLOCK)
R3154260
RUBBER
KNOB (2KEY)
R3521680
I-
·~
VX-10 VHF Band Service Manual
30-3
