INSTALLATION & SERVICE CLEARANCE DATA CW305-415
LIEBERT CW

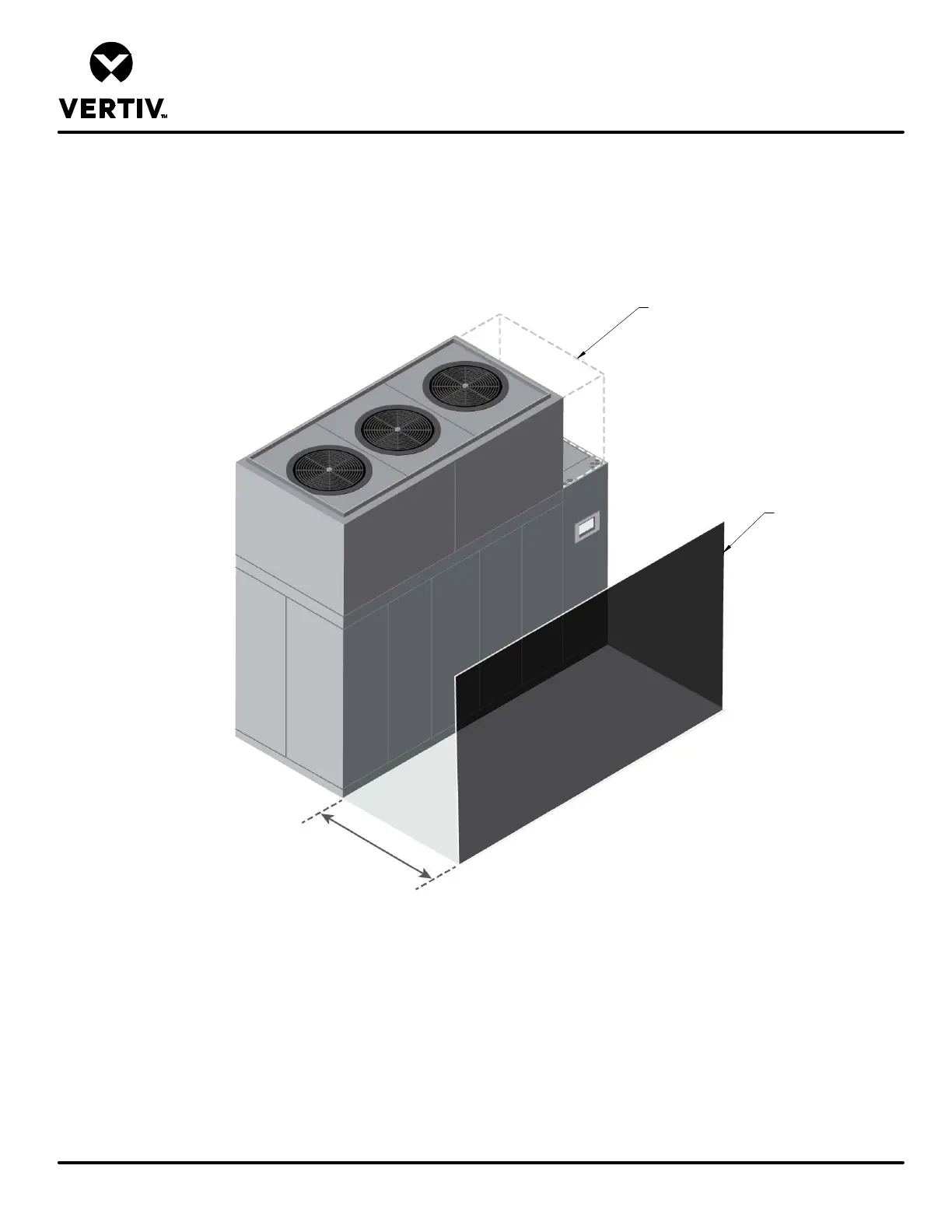

GALLERY INSTALLATION AND SERVICE CLEARANCE
Notes:
1. Electrical Compartment is shown on the left side of the unit.
Unit may be ordered with Electrical Compartment on either side,
or with Electrical Compartment facing into Data Hall.
Data Hall
Gallery Side
Wall
Piping and Cables
can be routed
in this zone.
66"
(1676mm)
Electrical Panel Access
