CW305, 375, 415 W/ BOTTOM DISCHARGE
Form No.: DPN001040_REV4

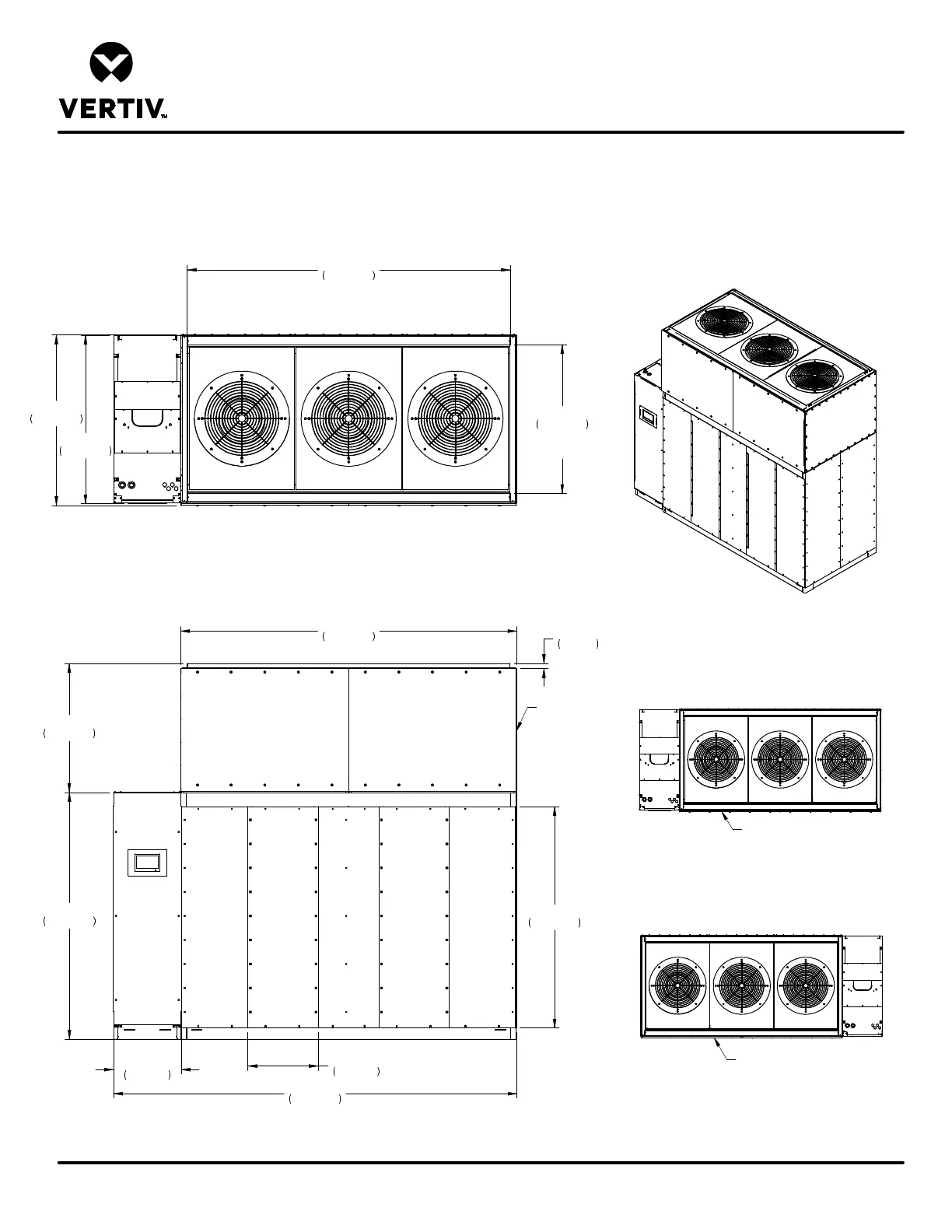

CABINET DIMENSIONAL DATA
LIEBERT CW
Fan Plenum is
shipped separately
and field installed.
Data Hall Unit configuration
Front of unit
Front of unit
Front of Unit
144"
3659mm
24 1/4"
616mm
25 1/8"
638mm
Typ.
79 1/8"
2009mm
88 1/8"
2239mm
46"
1168mm
120 1/8"
3050mm
1 3/4"
44mm
Duct
Flange
Rear of Unit
53 1/8"
1348mm
Outside of
Duct Flange
115 3/8"
2929mm
Outside of
Duct Flange
61"
1550mm
60 1/8"
1527mm
Front Left Facing Electrical Compartment
Front Right Facing Electrical Compartment
