Vertiv Liebert DA265 - Removing the Unit from the Skid

4.4 Removing the Unit from the Skid
NOTE: If you do not follow these steps, damage could occur to the panels and base of the unit.
1. Referring to Figure 4.2 below, use a 9/16 in. socket driver to remove the lag screws (24 total) from the four
corner brackets to detach the unit from the skid.

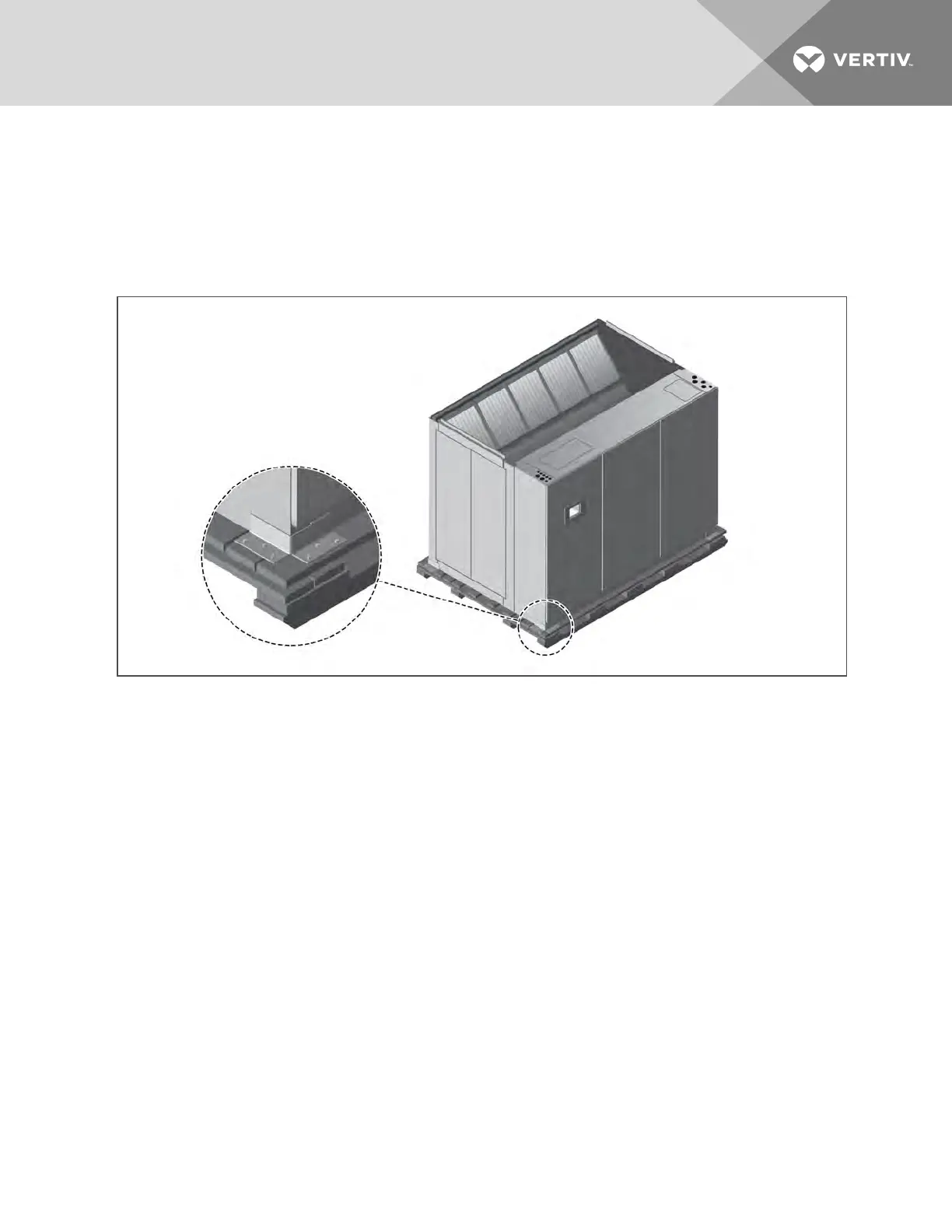

Figure 4.2 Remove Corner Brackets
4 Equipment Inspection and Handling
17
