6. Use the rigging equipment to move the unit to the final installation location, see Figure 4.5 below.

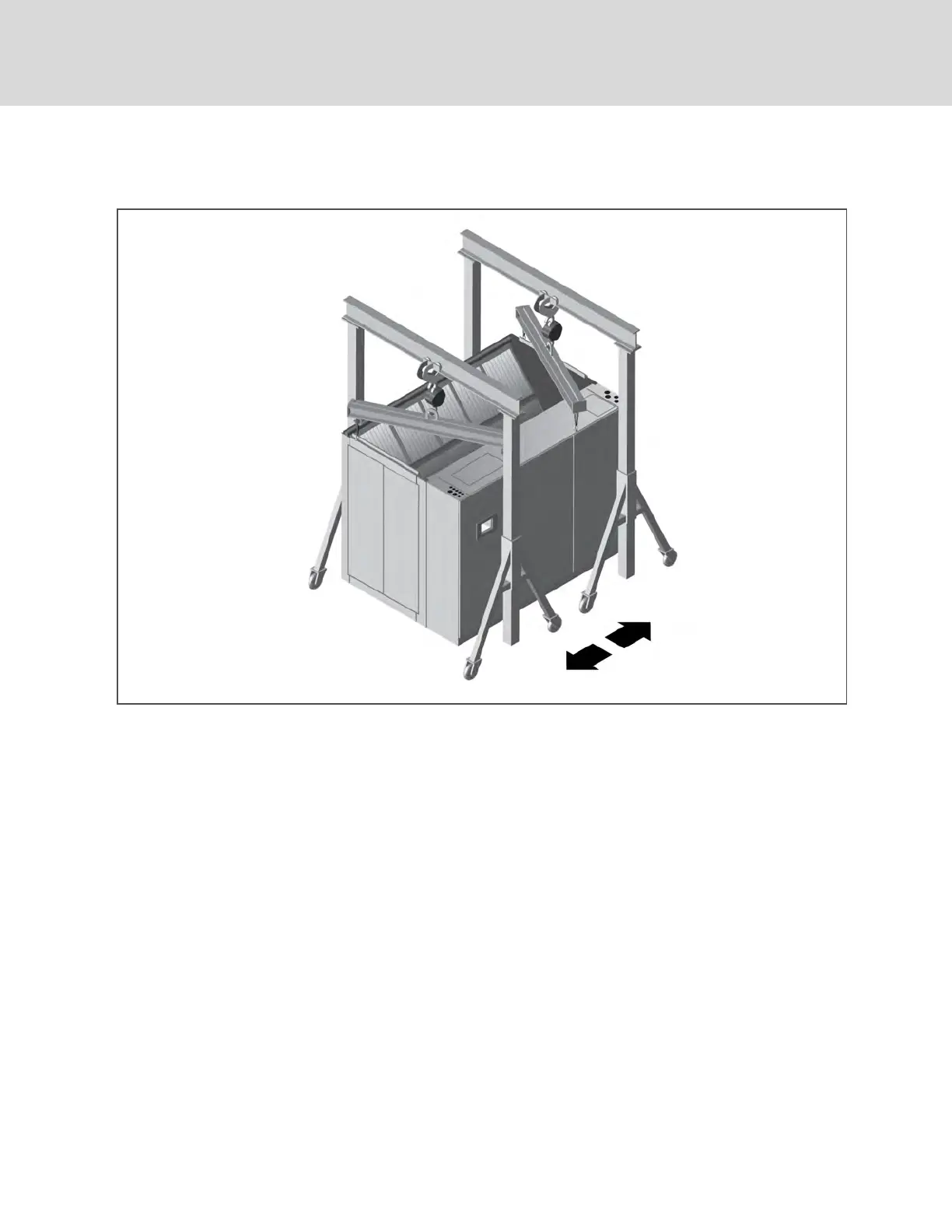

Figure 4.5 Moving the Unit with Rigging
4.5 Unpacking and Handling the Fan Section
Refer to drawing number 336511 "Instructions Handling/Installation of Fan Section CW/DSE" that is included in the fan
plenum packaging for instructions on uncrating and handling the fan section.
Vertiv | Liebert® DSE Thermal Management System Installer/User Guide
20
